Vacuum Pump: Service and Repair

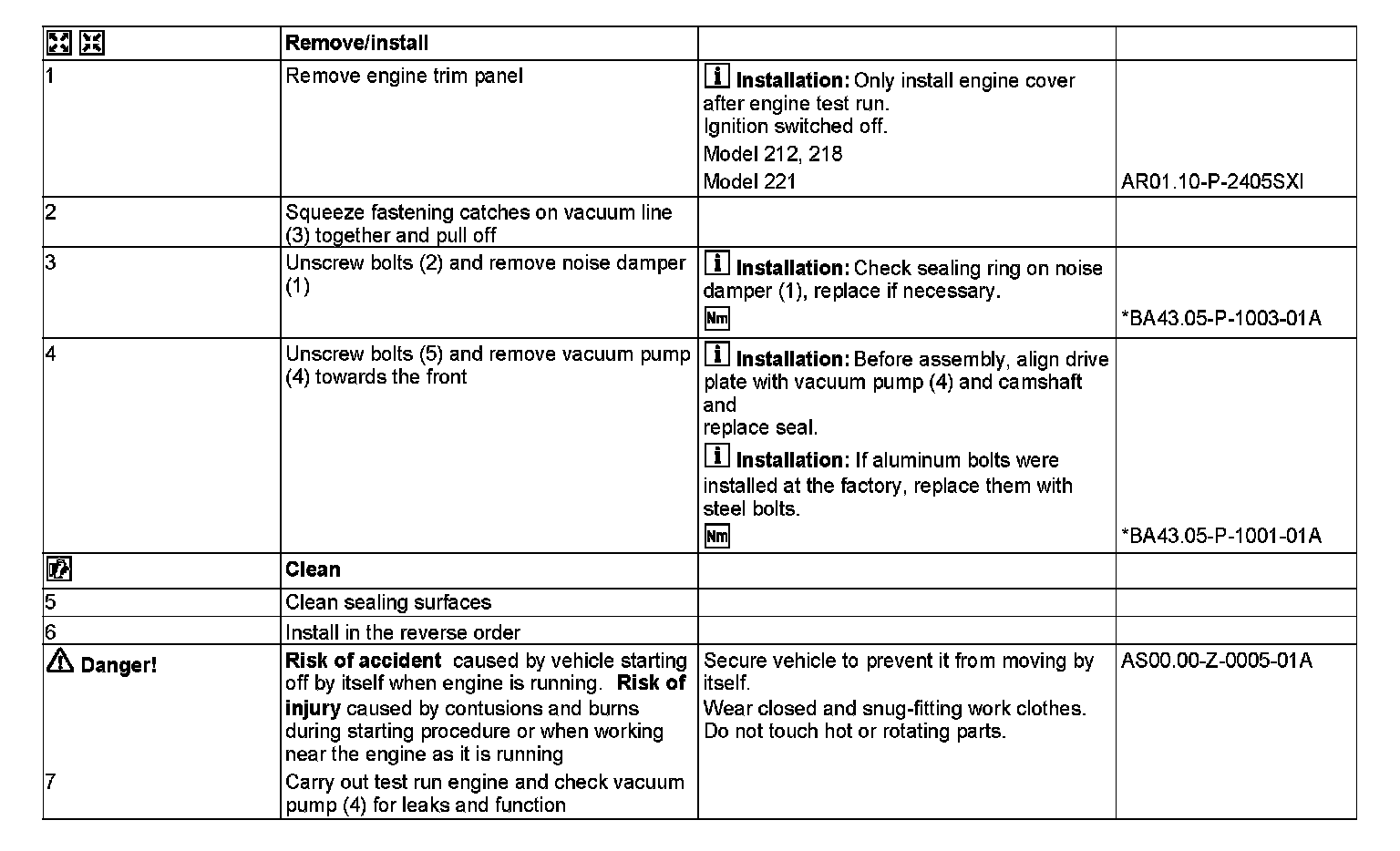

AR43.05-P-1320EO Remove/Install Vacuum Pump
MODEL 212, 218, 221 with ENGINE 642.8

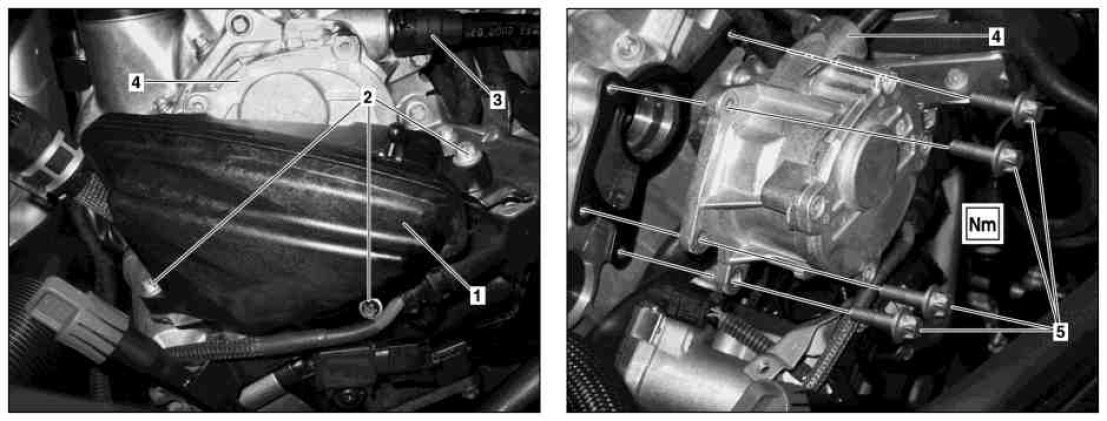

Shown on engine 642.850

1 Noise damper
2 Bolts
3 Vacuum line
4 Vacuum pump
5 Bolts
