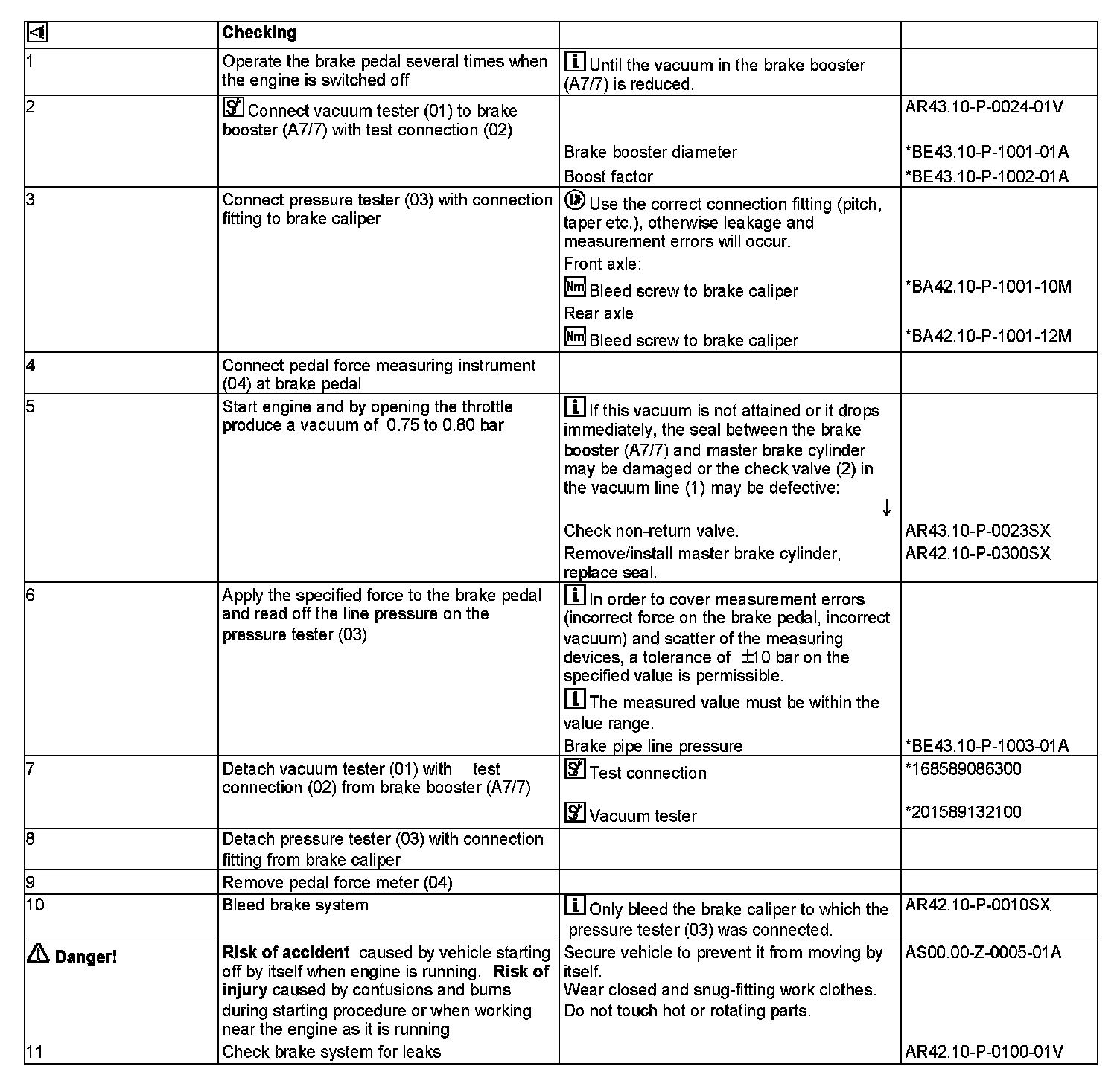

AR43.10-P-0325SX Checking Brake Booster

AR43.10-P-0325SX Checking Brake Booster
MODEL 216.### 1#
MODEL 221.### 1#

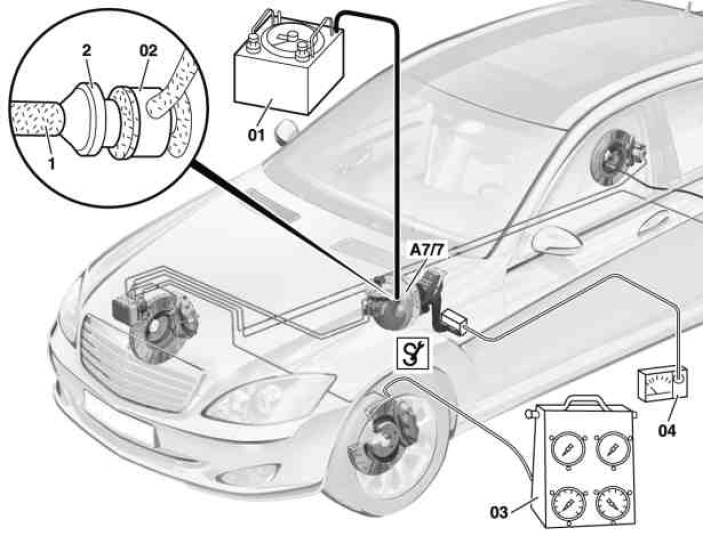

01 Vacuum tester
02 Test connection
03 Pressure tester
04 Pedal force meter
1 Vacuum line
2 Check valve

A7/7 BAS brake booster

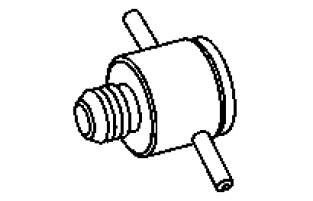

168 589 08 63 00
Test connection





201 589 13 21 00
Vacuum tester
