AR43.10-P-0024-01V Connect/Disconnect Testing Unit at Brake Booster

AR43.10-P-0024-01V Connect/disconnect testing unit at brake booster

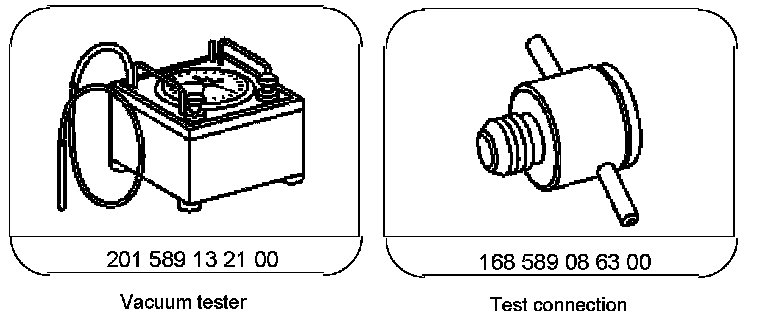

Special Tools:

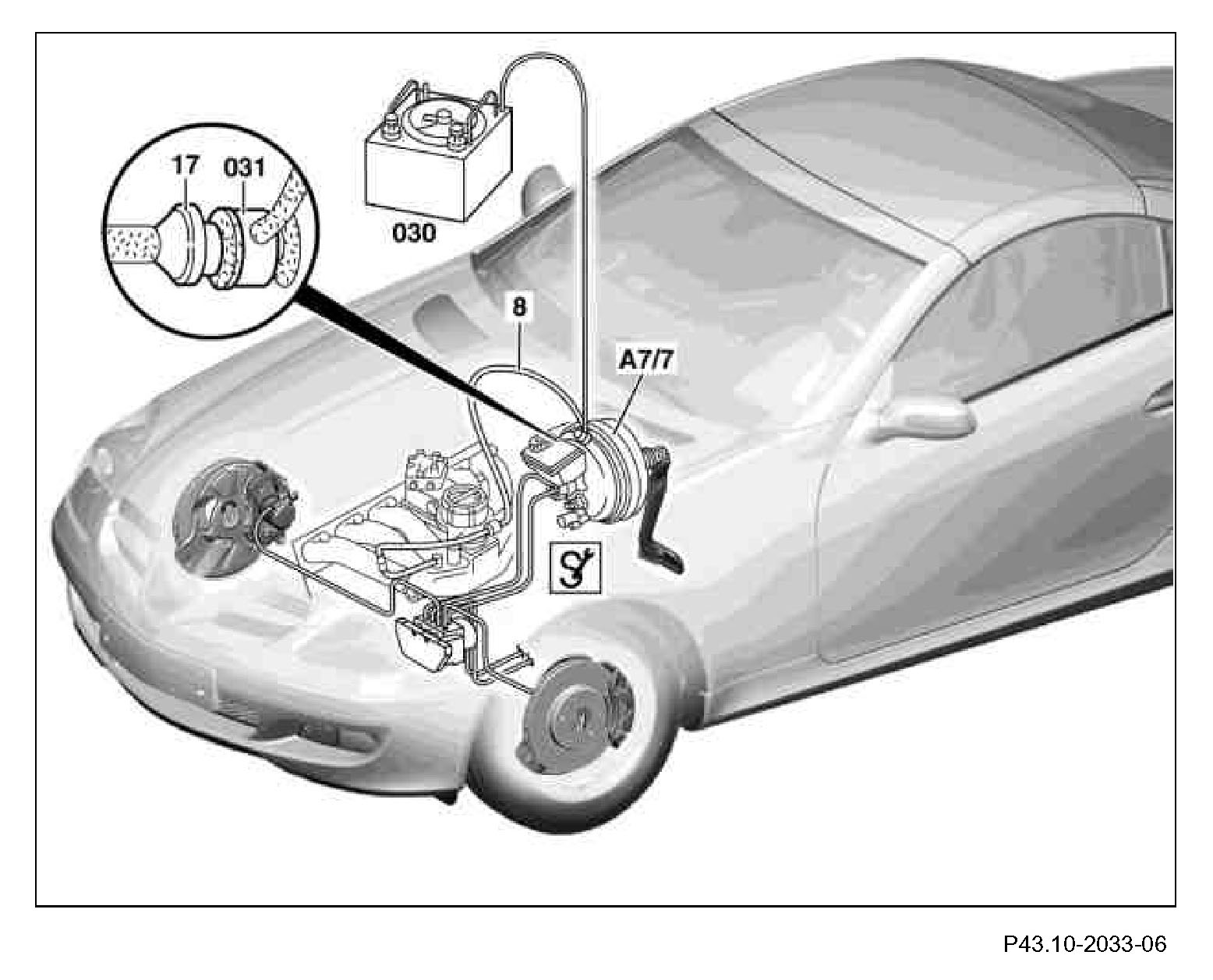

Component Identification:

1 Detach check valve (17) of vacuum line (8) on brake booster (A7/7).
2 Connect test connection (031) between brake booster (A7/7) and vacuum line (8)
3 Connect vacuum tester (030) to test connection (031).
