AR43.10-P-0355SX Remove/Install Brake Booster Vacuum Line



AR43.10-P-0355SX Remove/install brake booster vacuum line

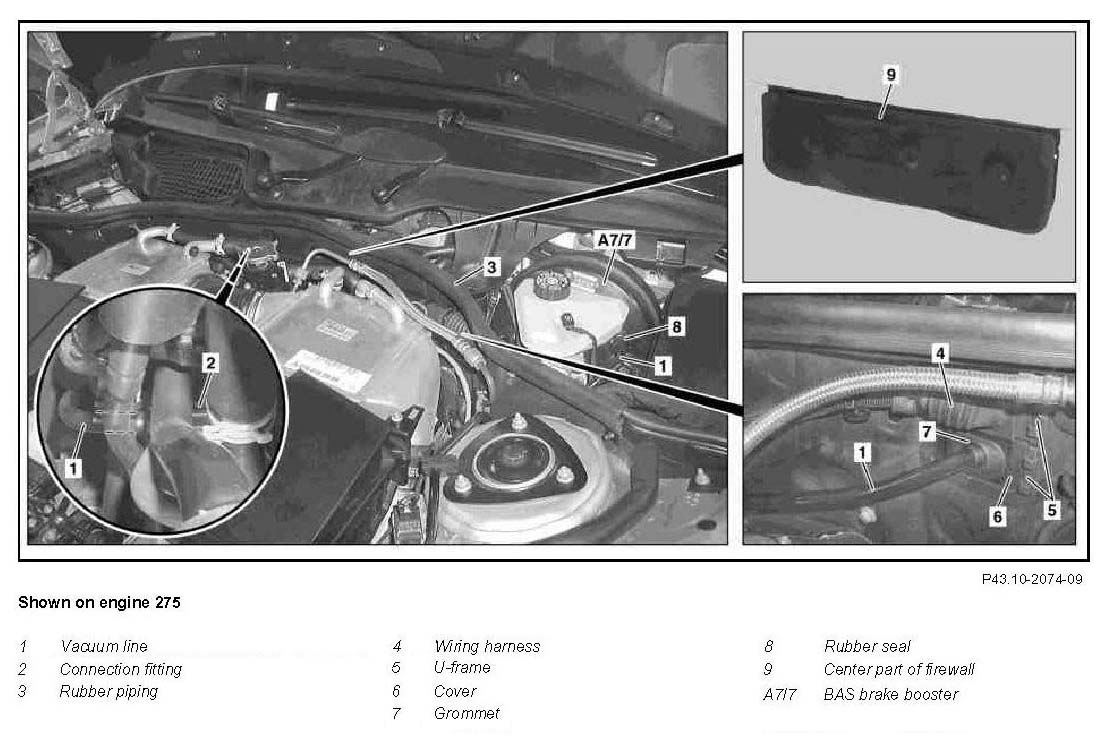

Component Identification:

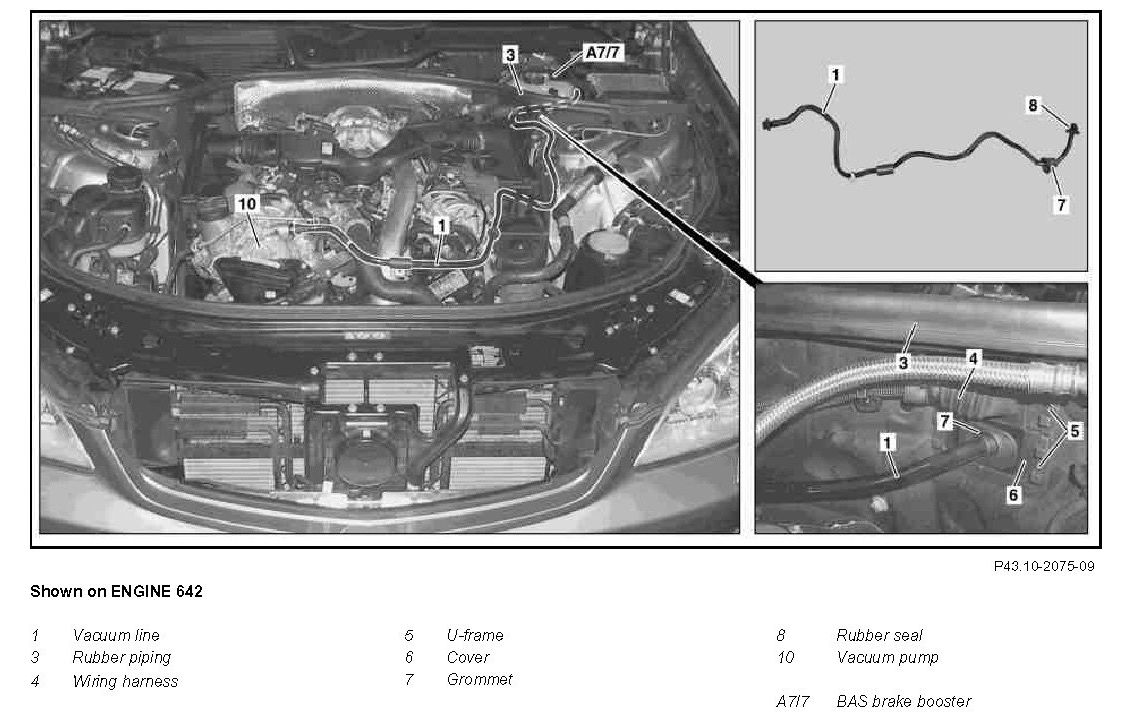

Component Identification:

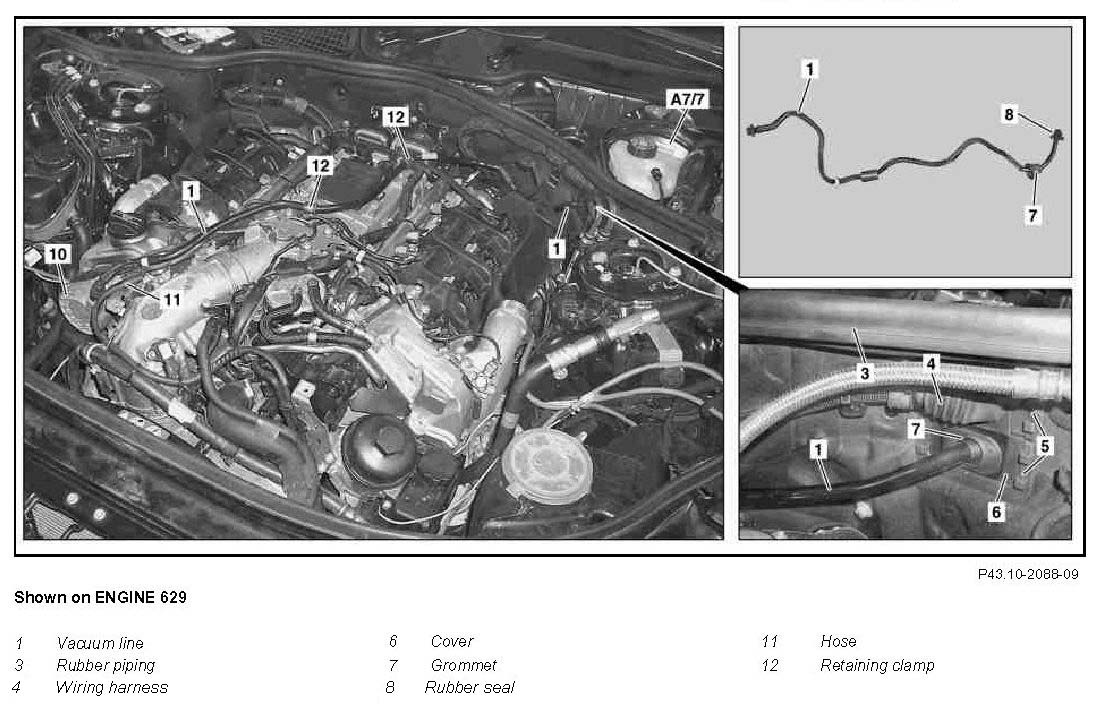

Component Identification:

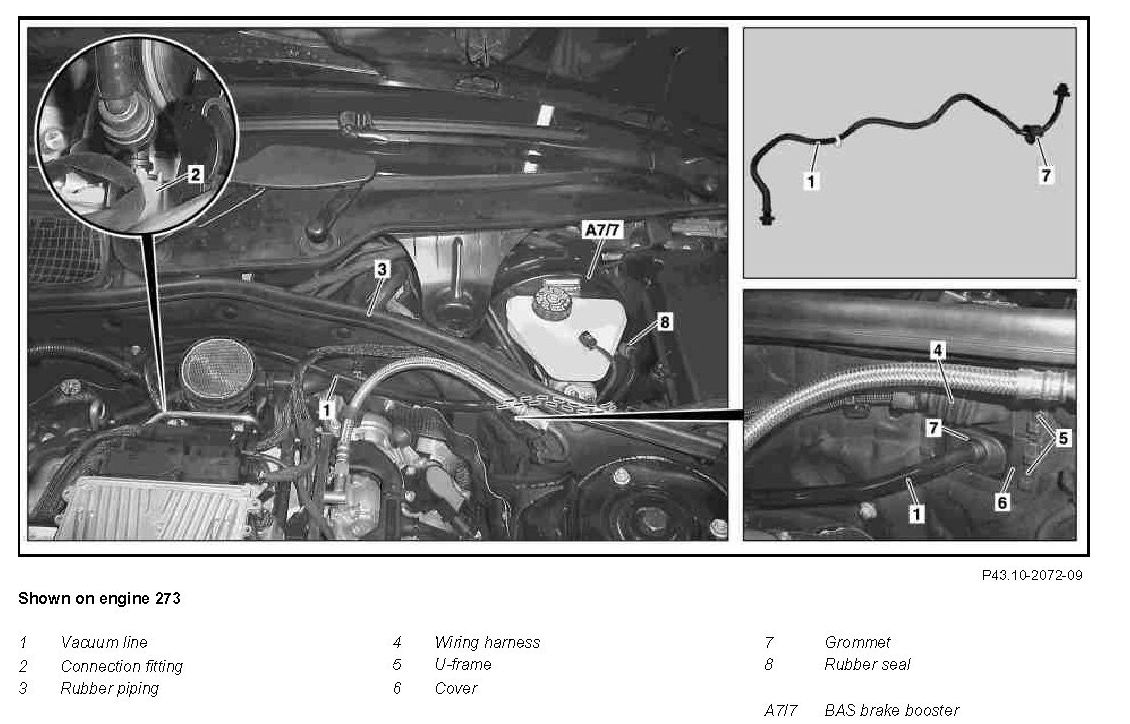

Component Identification:

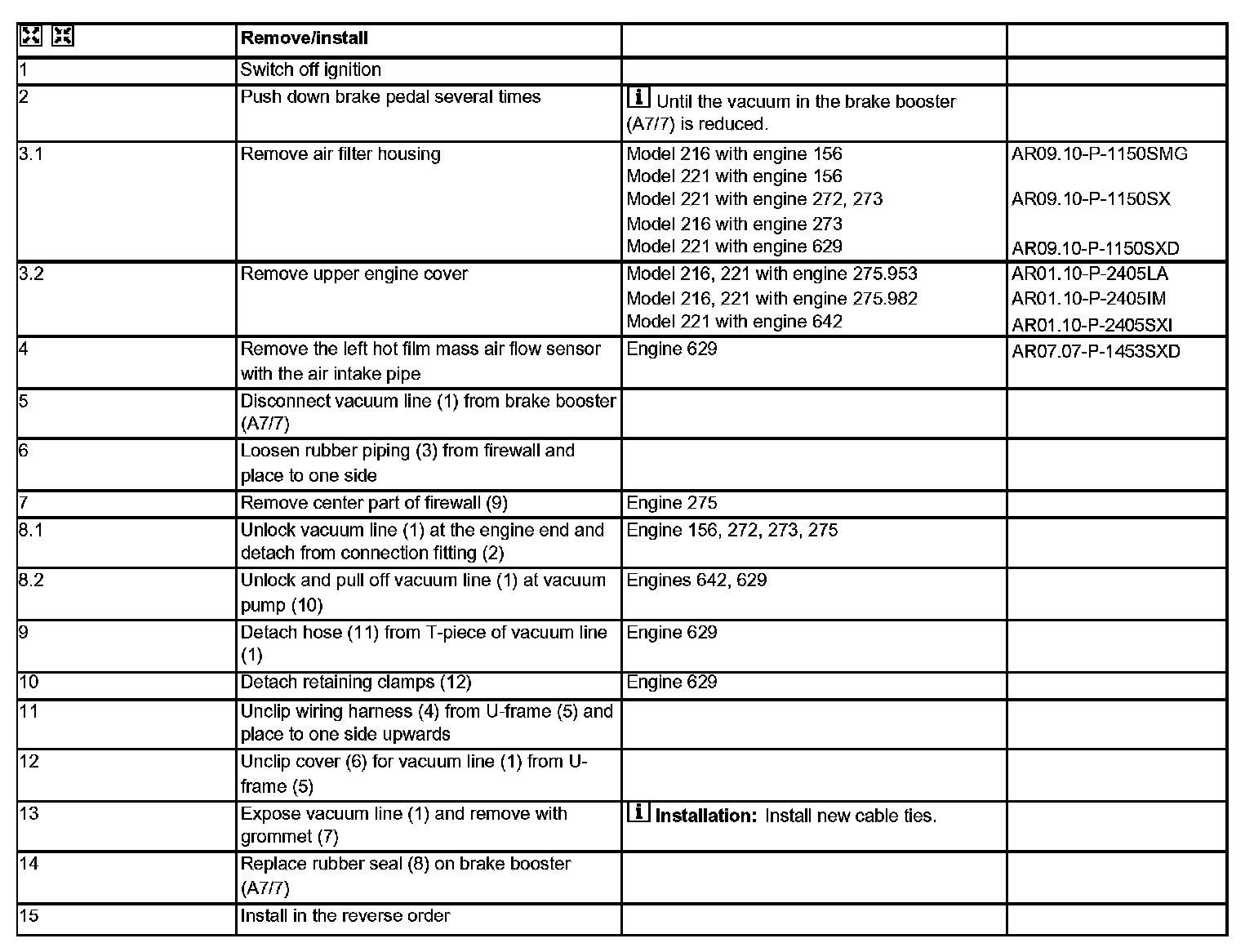

Remove/install Steps 1-15:
