AR42.31-P-6002SX Remove/Install BAS Diaphragm Travel Sensor
AR42.31-P-6002SX Remove/Install BAS Diaphragm Travel Sensor
AR42.31-P-6002SX Remove/install BAS diaphragm travel sensor

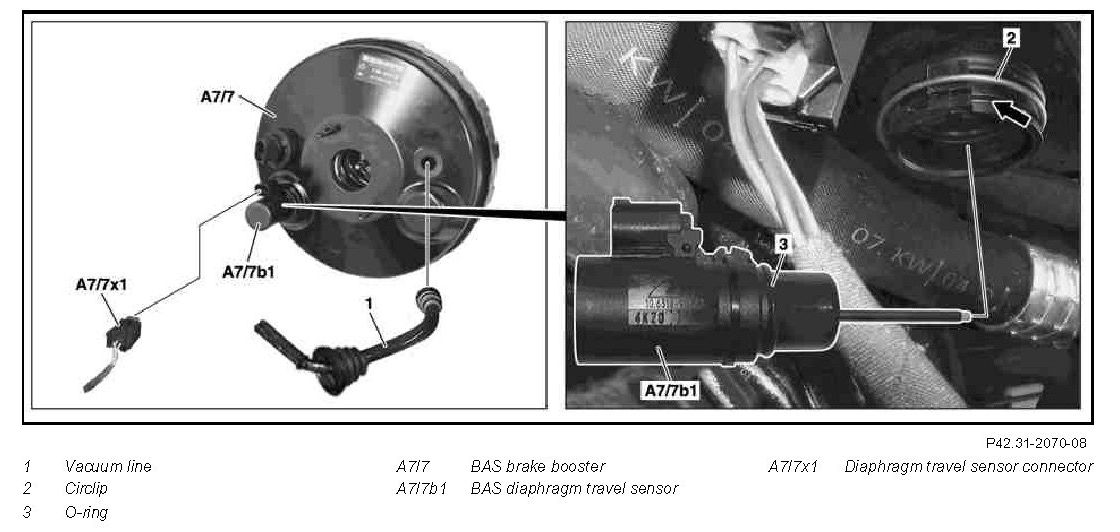

Component Identification:

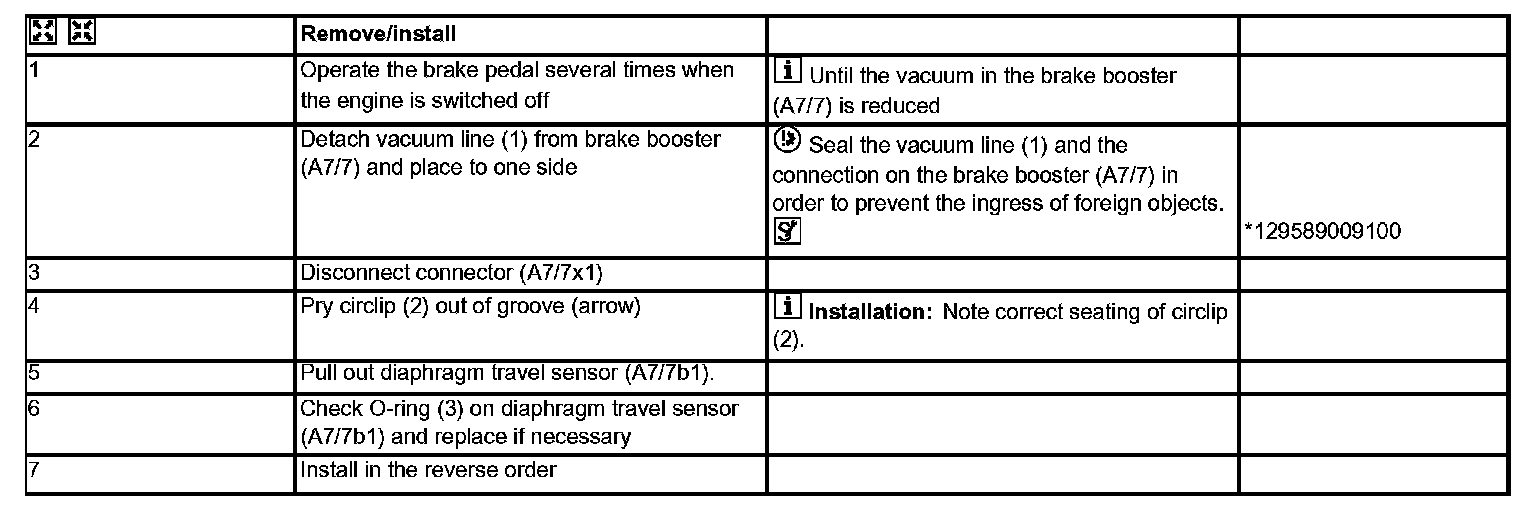

Remove/install Steps 1-7:

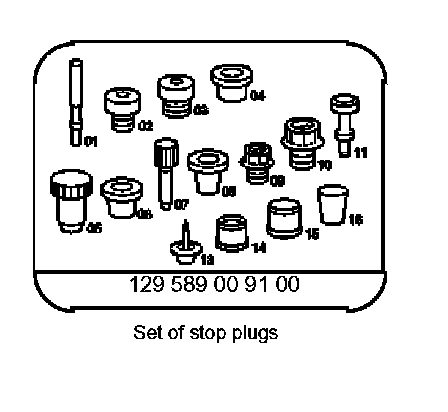

Special Tools:
