Vacuum Brake Booster Check Valve: Testing and Inspection
AR43.10-P-0023SX Check the check valve

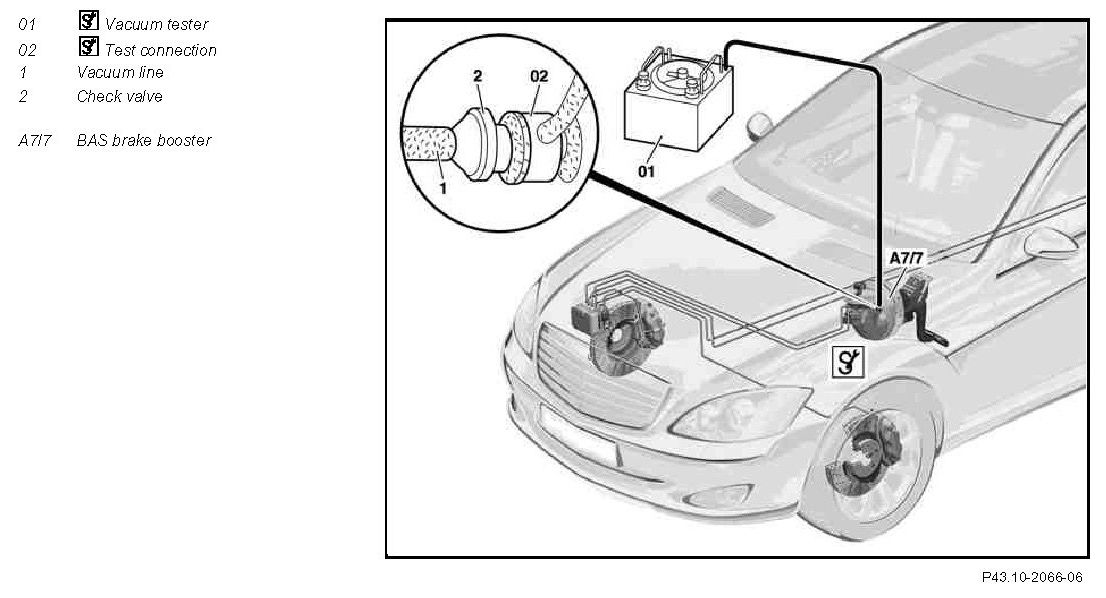

Component Identification:

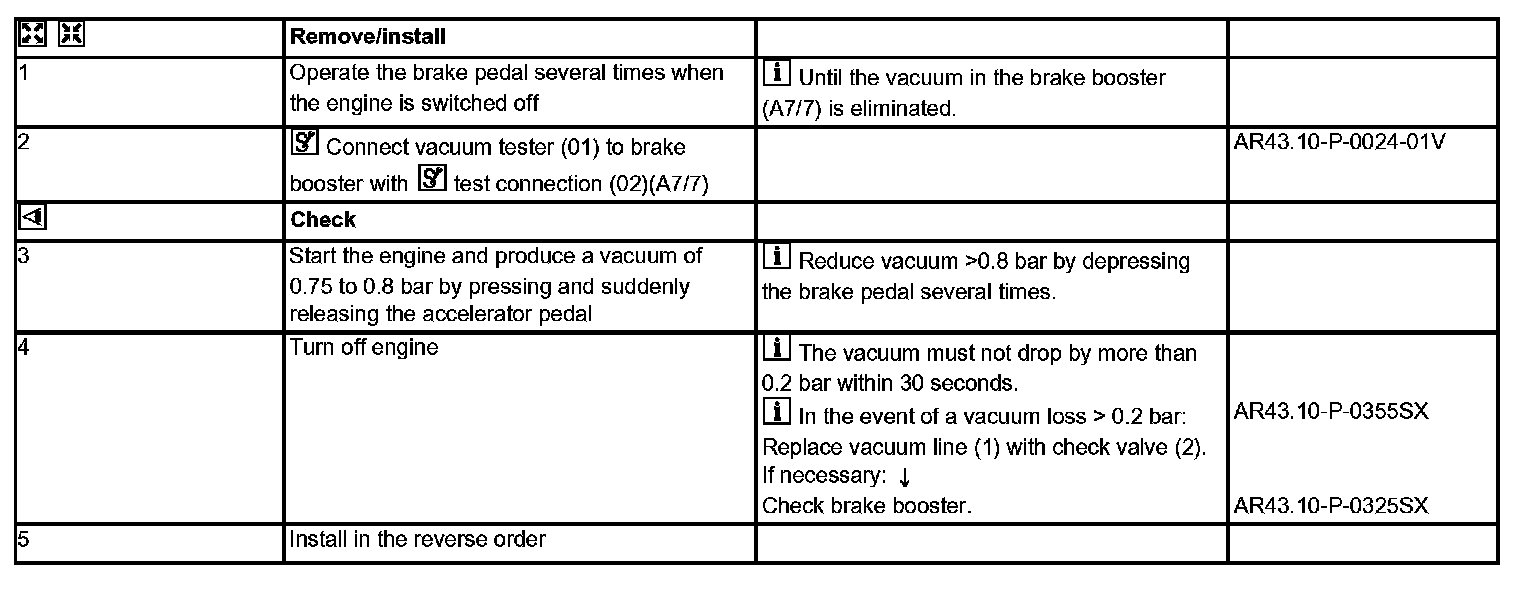

Remove/install Steps 1-5:
