Removal and Replacement

AR42.20-P-0530SX Remove/Install Brake Shoes of Parking Brake
MODEL 216
MODEL 221

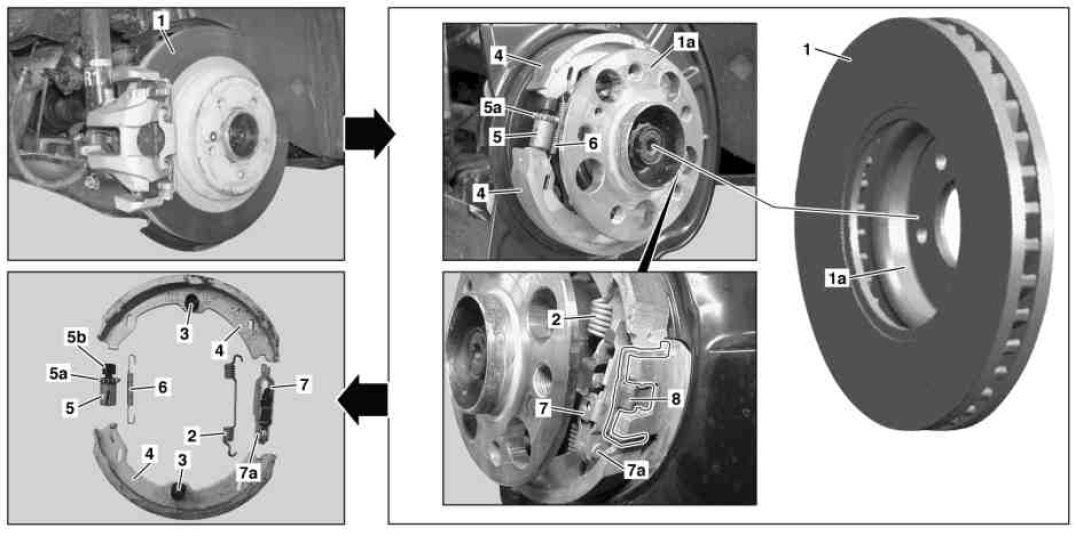

1 Brake disk
1a Parking brake drum
2 Front retracting spring
3 Retaining spring
4 Brake shoes
5 Adjusting mechanism
5a Thumbwheel
5b Thrust piece
6 Rear retracting spring
7 Expansion lock
7a Pin
8 Cap











116 589 01 62 00
Removal and installation tool





112 589 09 61 00
Installation tool
