AR42.20-P-0525SX Remove/Install Rear Brake Control Cable



AR42.20-P-0525SX Remove/install rear brake control cable

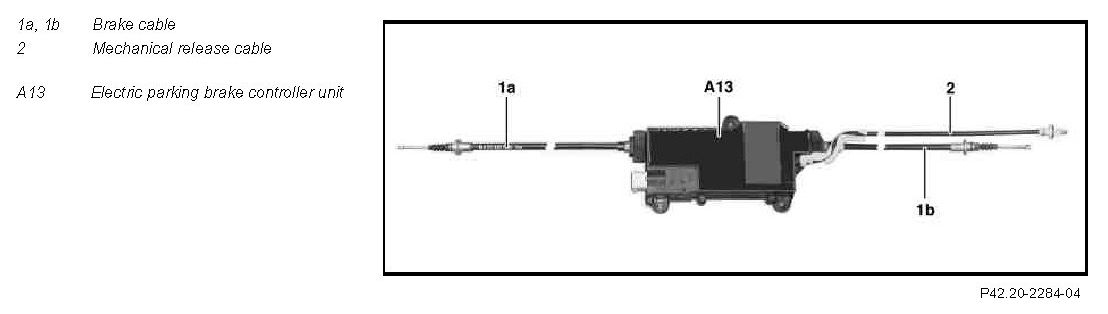

Component Identification:

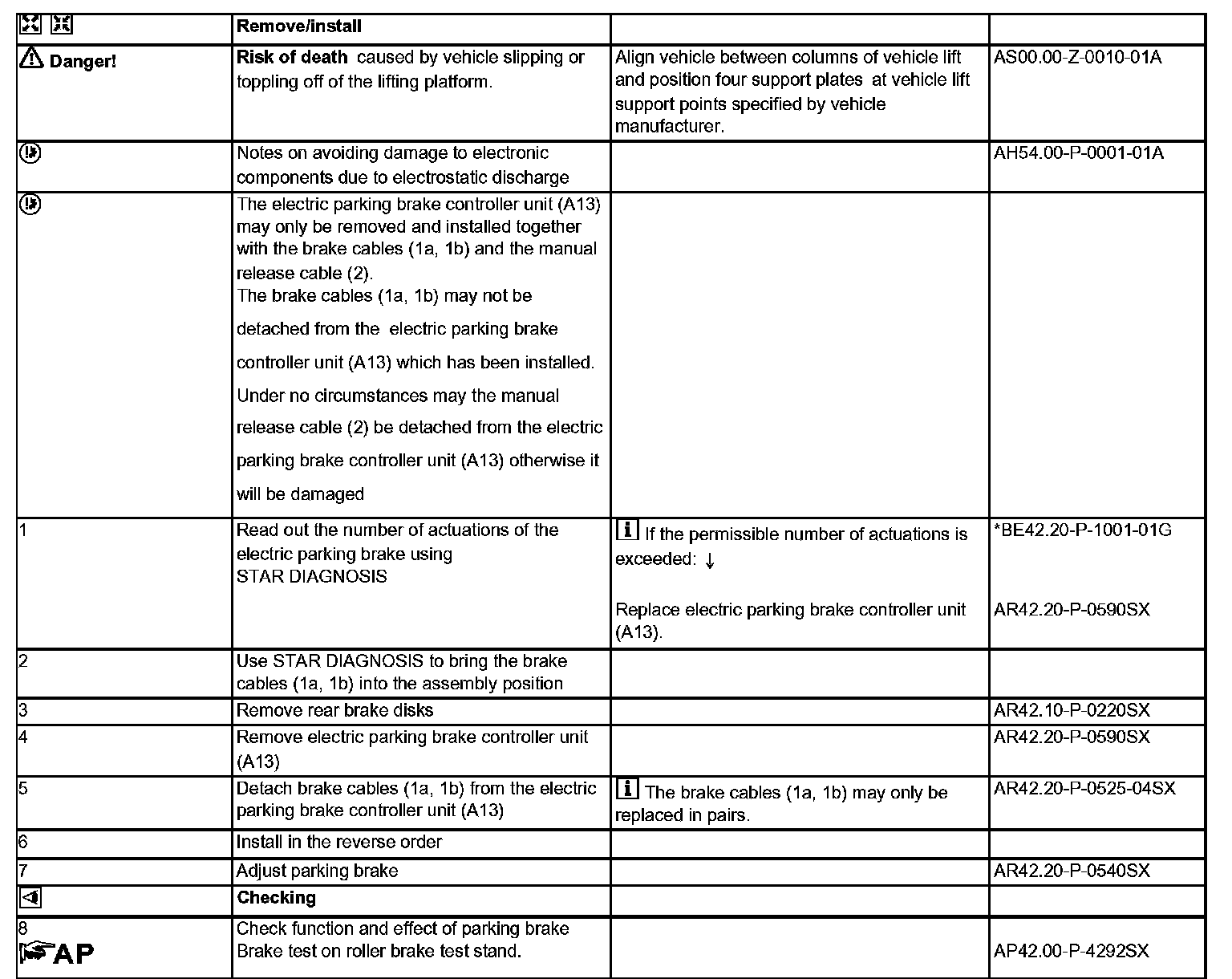

Remove/install Steps 1-8:

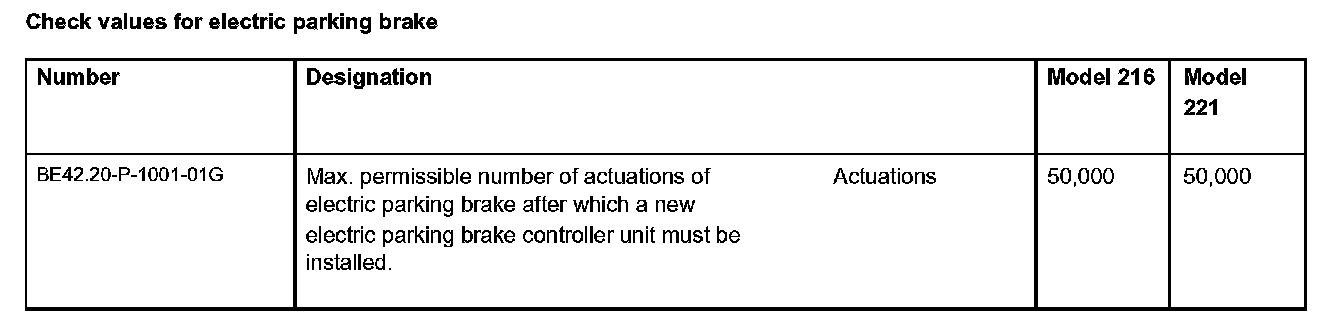

Check values for electric parking brake:
