AR42.20-P-0525-04SX Detach/Attach Brake Cables to Electric Parking Brake Controller Unit

AR42.20-P-0525-04SX Detach/attach brake cables to electric parking brake controller unit

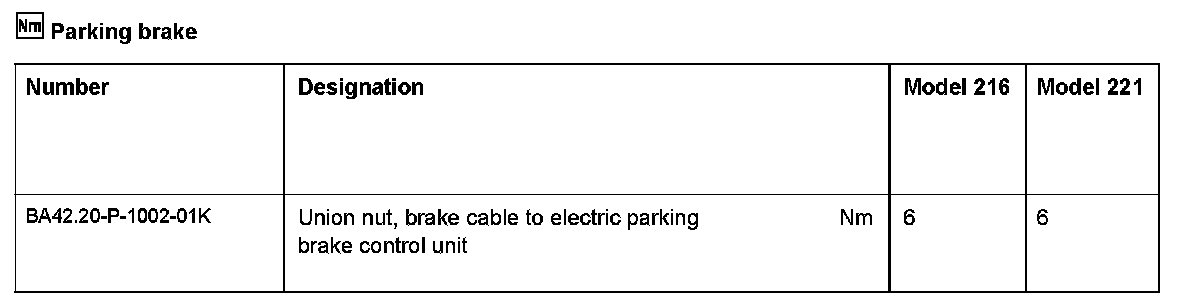

Parking Brake:

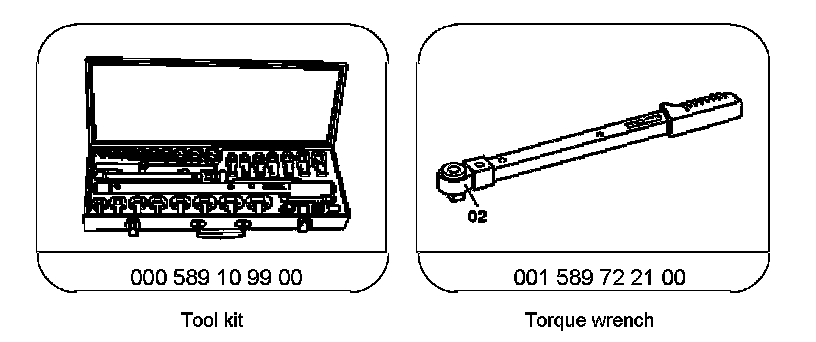

Special Tools:

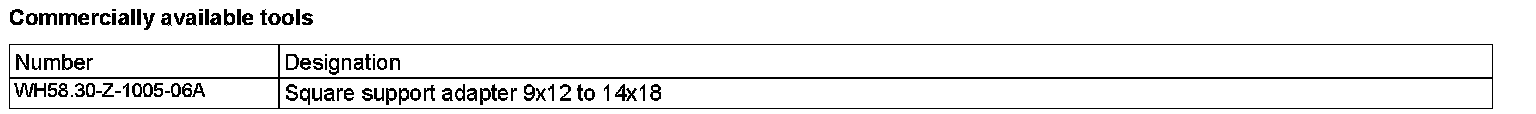

Commercially Available Tools:

Component Identification:

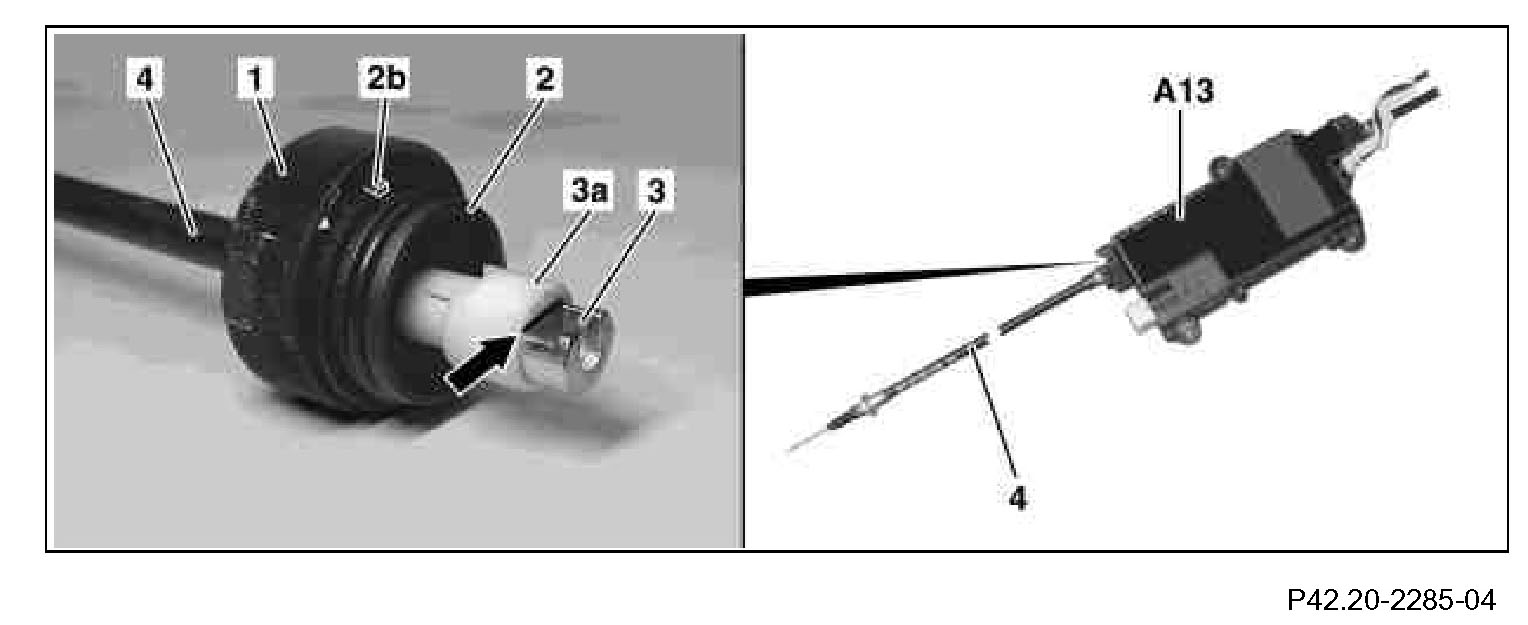

Detach/attach left brake cable
1 Unscrew union nut (1).

Installation: Observe tightening torque

2 Pull stop (2) out of electric parking brake controller unit (A13).

Installation: Guide anti-twist lock (2b) into the notch on the electric parking brake controller unit (A13).

3 Release the claw tension retainer (3a) using a screwdriver and detach from tension claw (3).

Installation: Align the flat moldings (arrow) of the claw tension retainer (3a) and the tension claw (3) with each other.

4 Detach tension claw (3) from electric parking brake controller unit (A13) and detach left brake cable (4).
5 Install in the reverse order.

Component Identification:

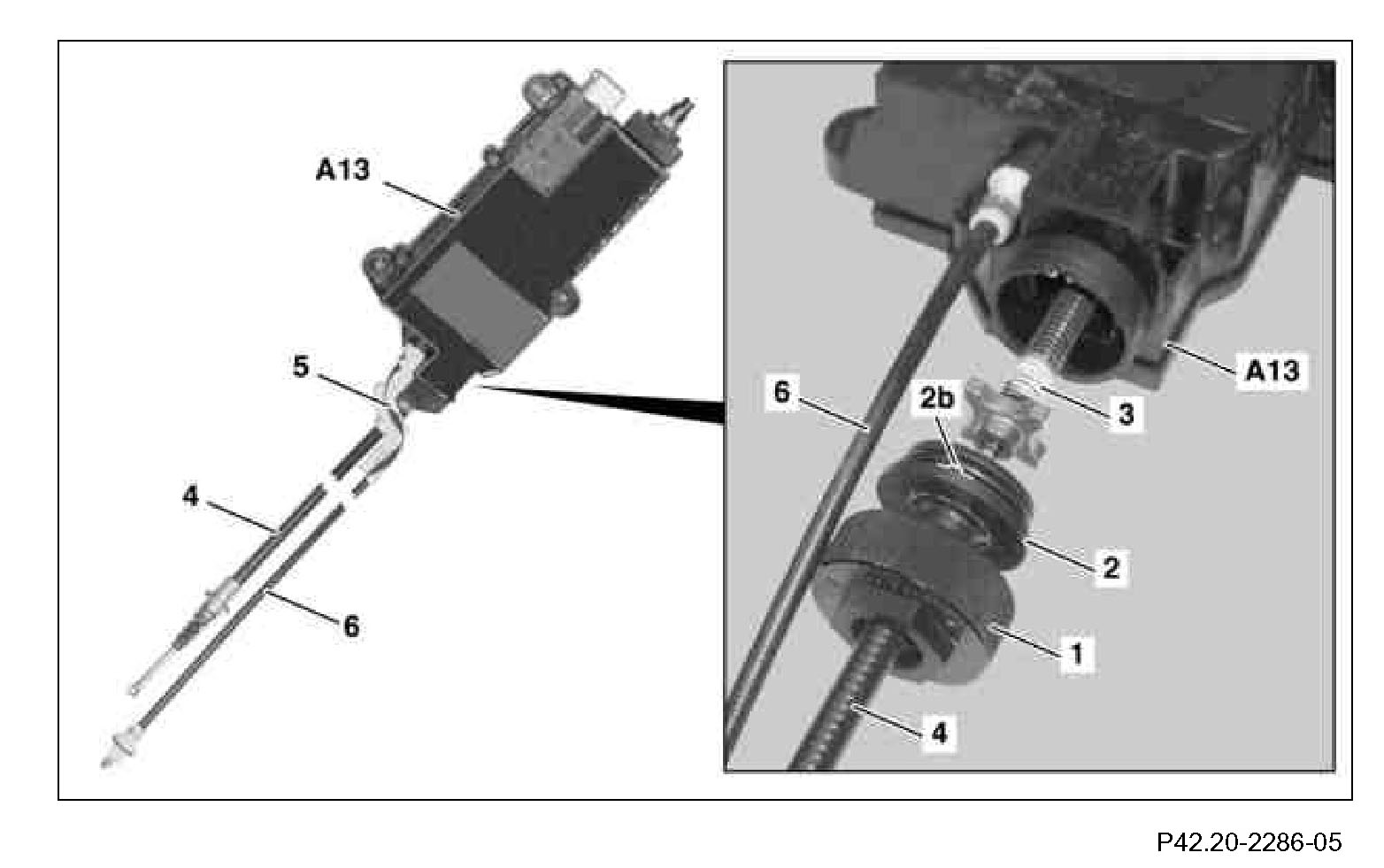

Detach/attach right brake cable
1 Guide mechanical release cable (6) out of cable guide (5).
2 Unclip and detach cable guide (5).
3 Unscrew union nut (1).

Installation: Observe tightening torque

4 Pull stop (2) out of electric parking brake controller unit (A13).

Installation: Guide anti-twist lock (2b) into the notch on the electric parking brake controller unit (A13).

5 Unscrew spindle (3) clockwise out of electric parking brake controller unit (A13) and detach right brake cable (4).

Installation: Coat the spindle (3) over its entire length with the enclosed lubricant screw in three revolutions into the electric parking brake controller unit (A13).

6 Install in the reverse order.
