AR42.20-P-0525-03SX Remove/Install Rear Brake Cable at Wheel Carrier

AR42.20-P-0525-03SX Remove/install rear brake cable at wheel carrier

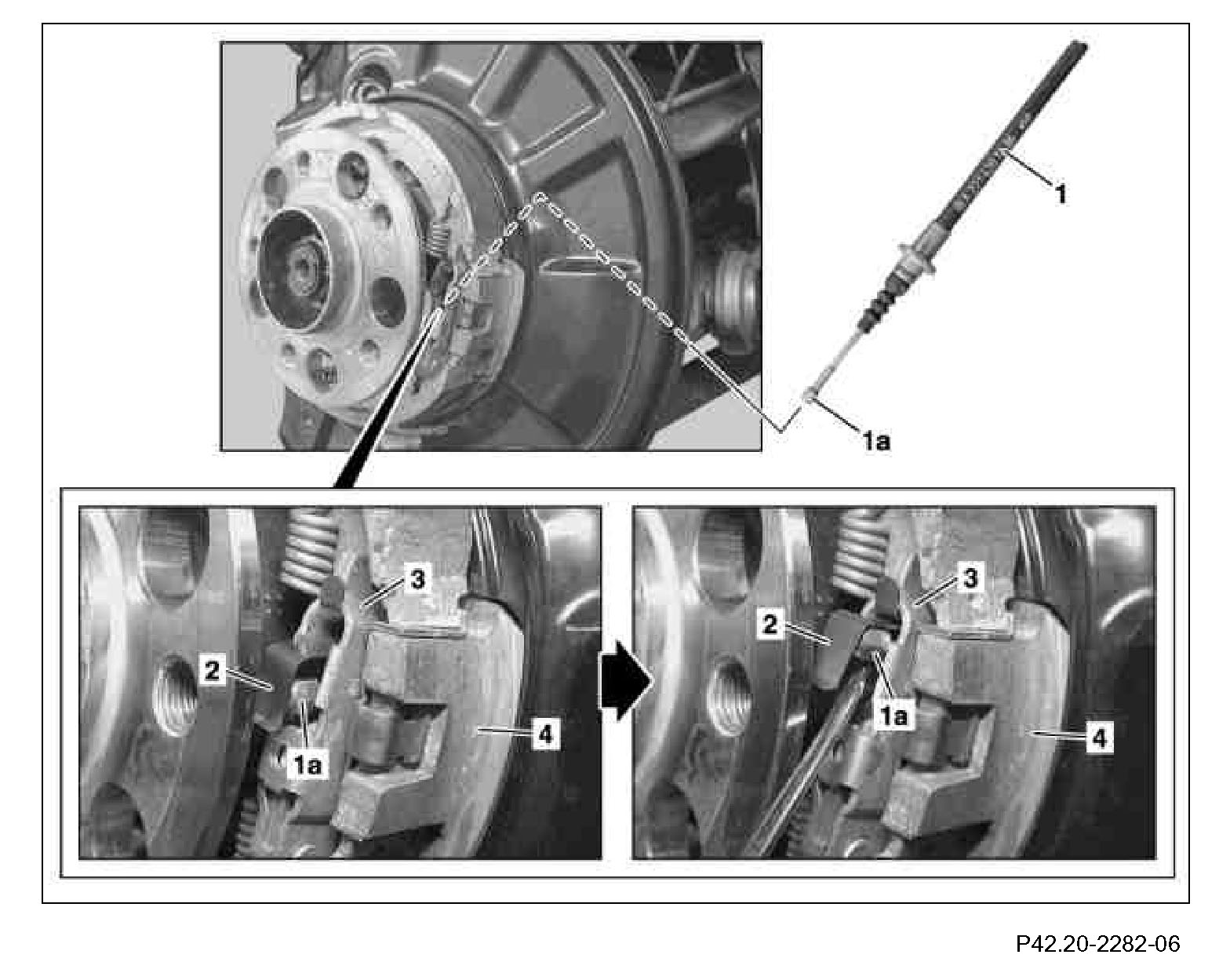

Component Identification:

Removal
1 Press toggle (1a) of brake cable (1) upwards against the spring (2) in the expanding lock (3) using a screwdriver.
2 Pull brake cable (1) out of wheel carrier (4).

Mounting
3 Insert brake cable (1) into the wheel carrier (4) until the toggle (1a) latches into the expanding lock (3).
