Parking Brake System: Adjustments
AR42.20-P-0540SX Adjust parking brake
Component Identification:

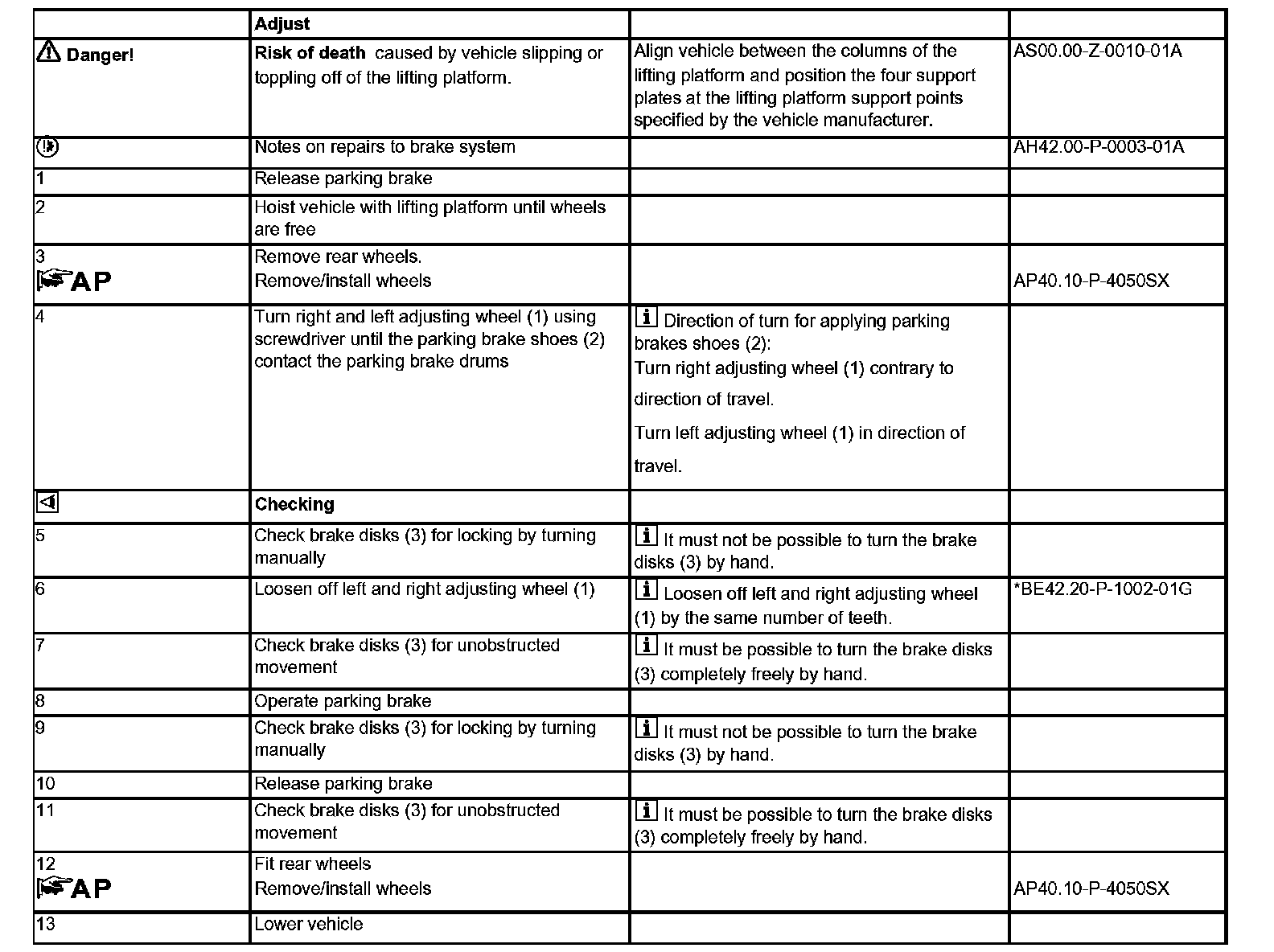

Steps 1-13:

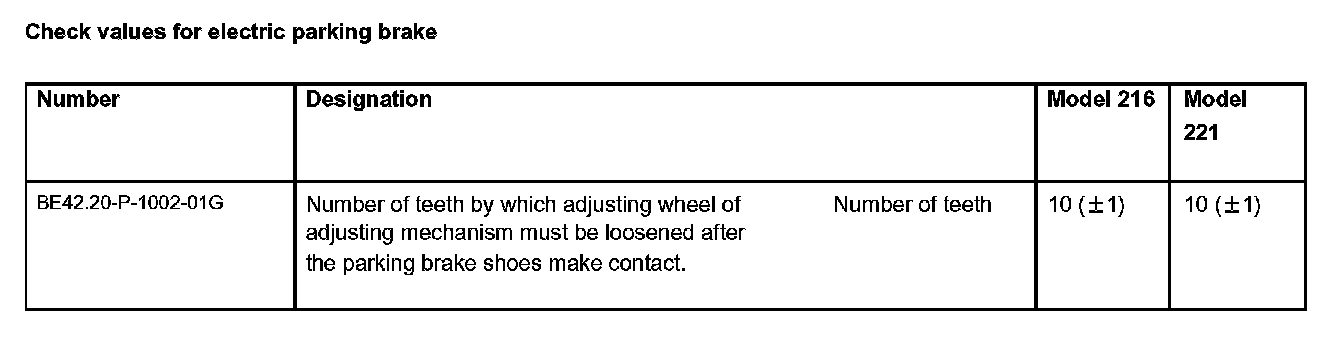

Check values for electric parking brake:
