Hydraulic Control Assembly - Antilock Brakes: Service and Repair
AR42.40-P-0816SX Remove/install ETS/ASR/ESP hydraulic unit

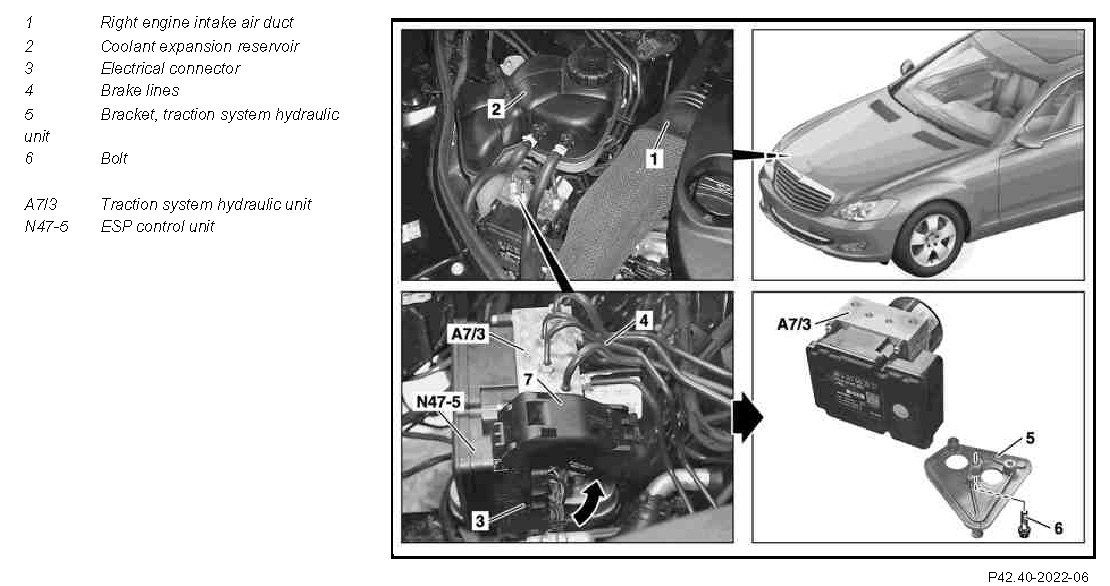

Component Identification:
Modification notes:

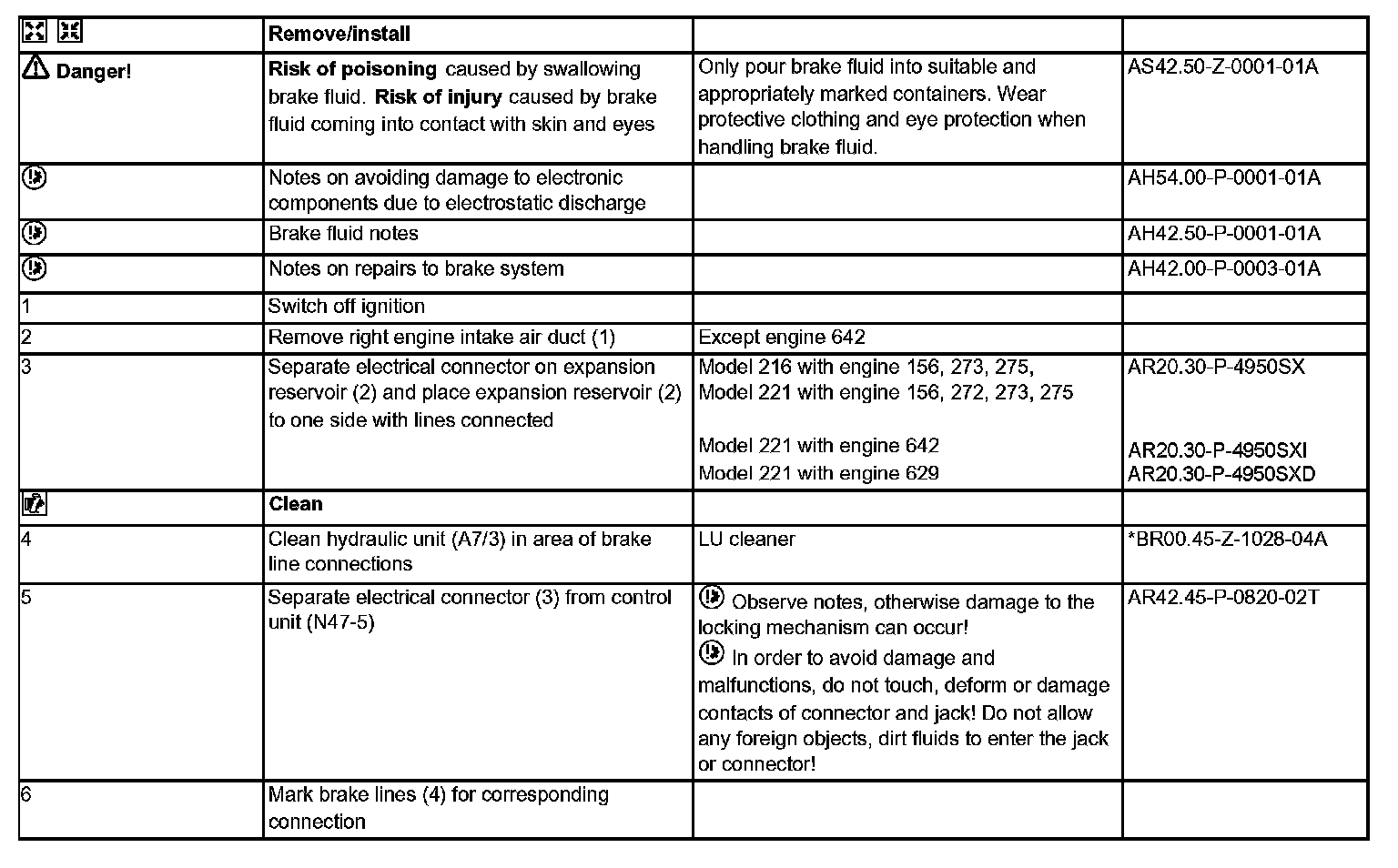

Remove/install Steps 1-6:

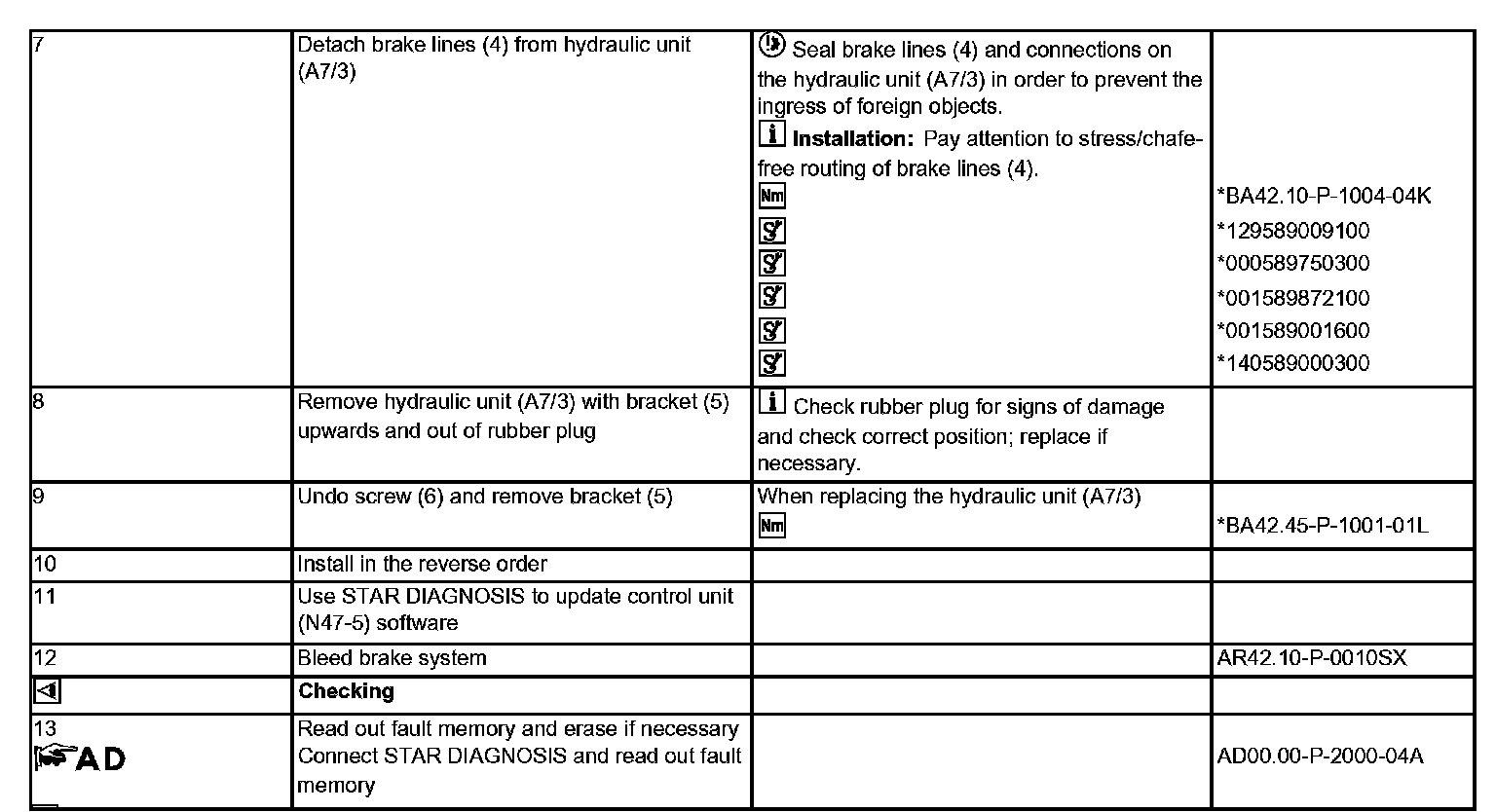

Remove/install Steps 7-13:

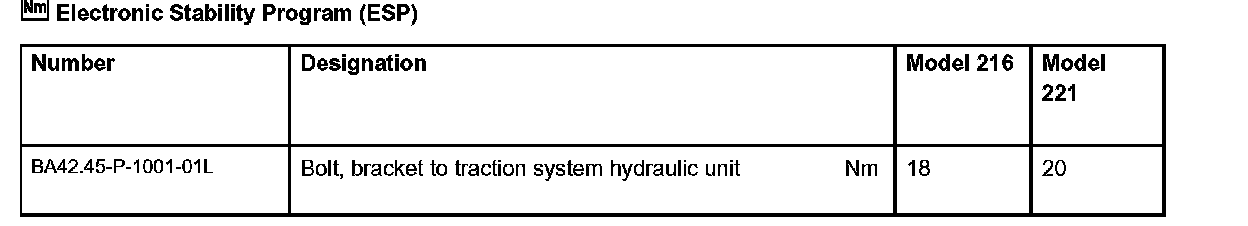

Electronic Stability Program (ESP):

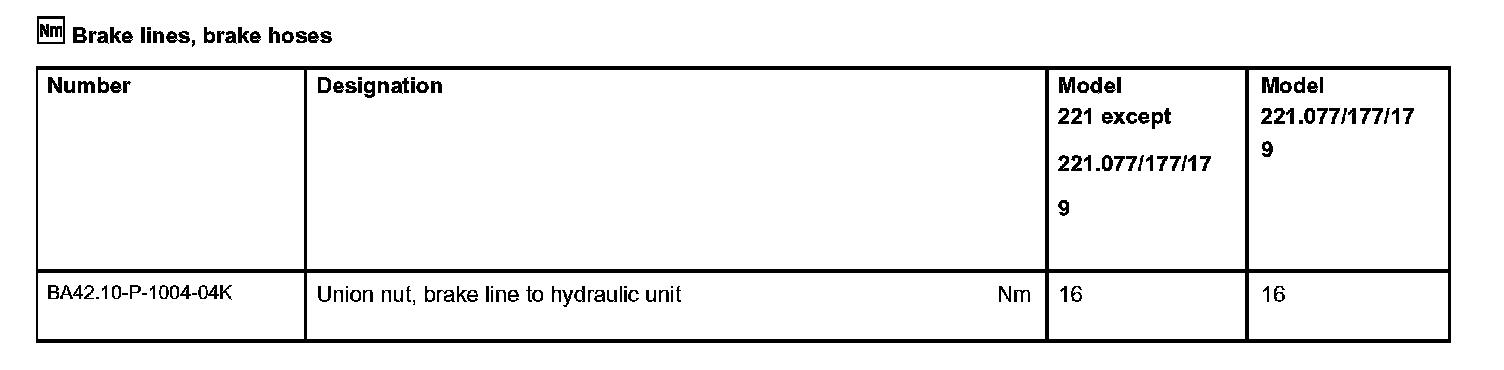

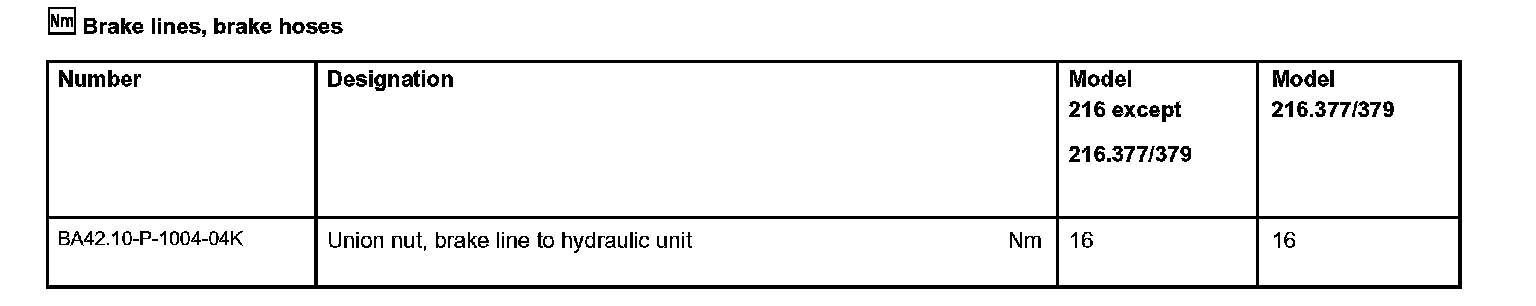

Brake lines, brake hoses:
Brake lines, brake hoses:

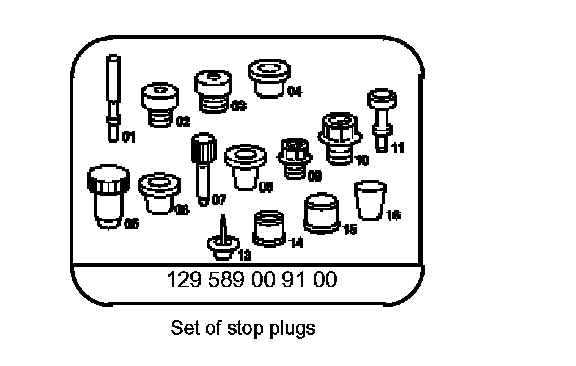

Special Tools:

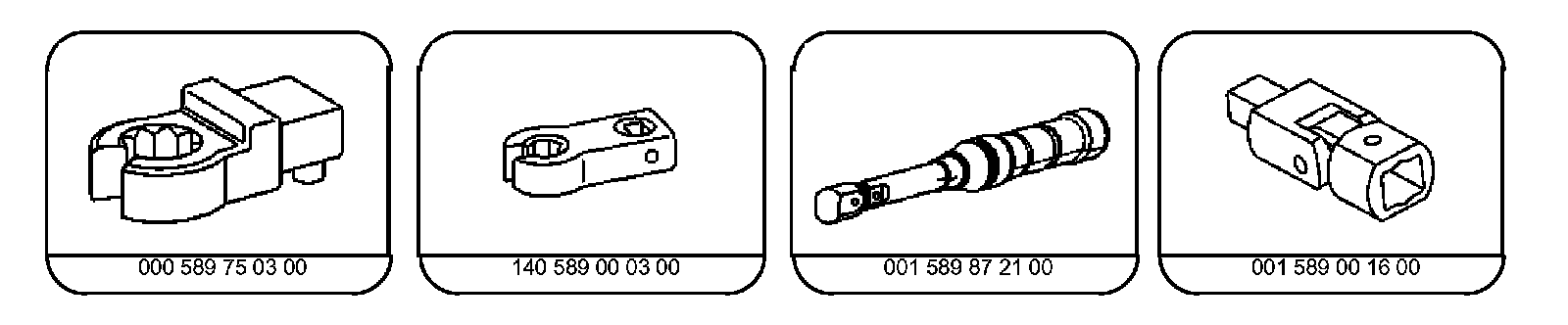

Special Tools:

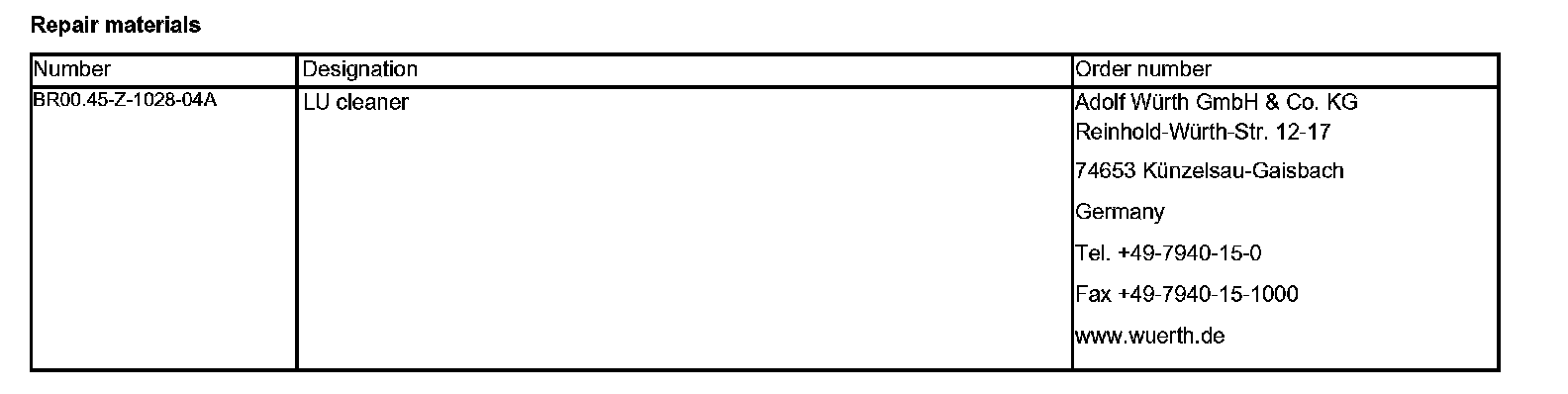

Repair materials:
