AR42.10-P-0301SX Remove/Install Brake Fluid Reservoir



AR42.10-P-0301SX Remove/install brake fluid reservoir

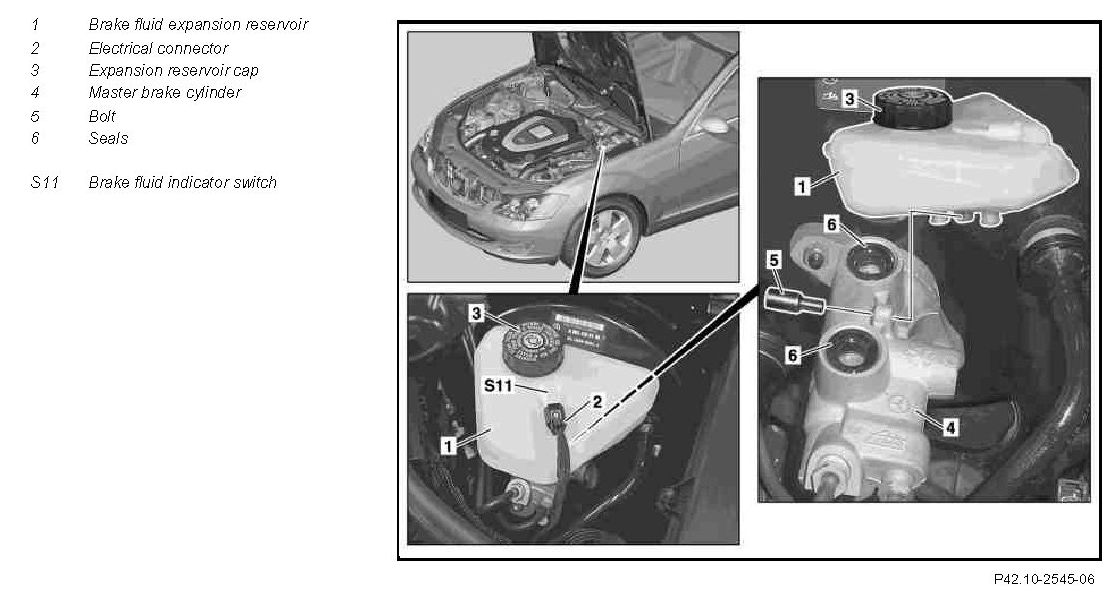

Component Identification:

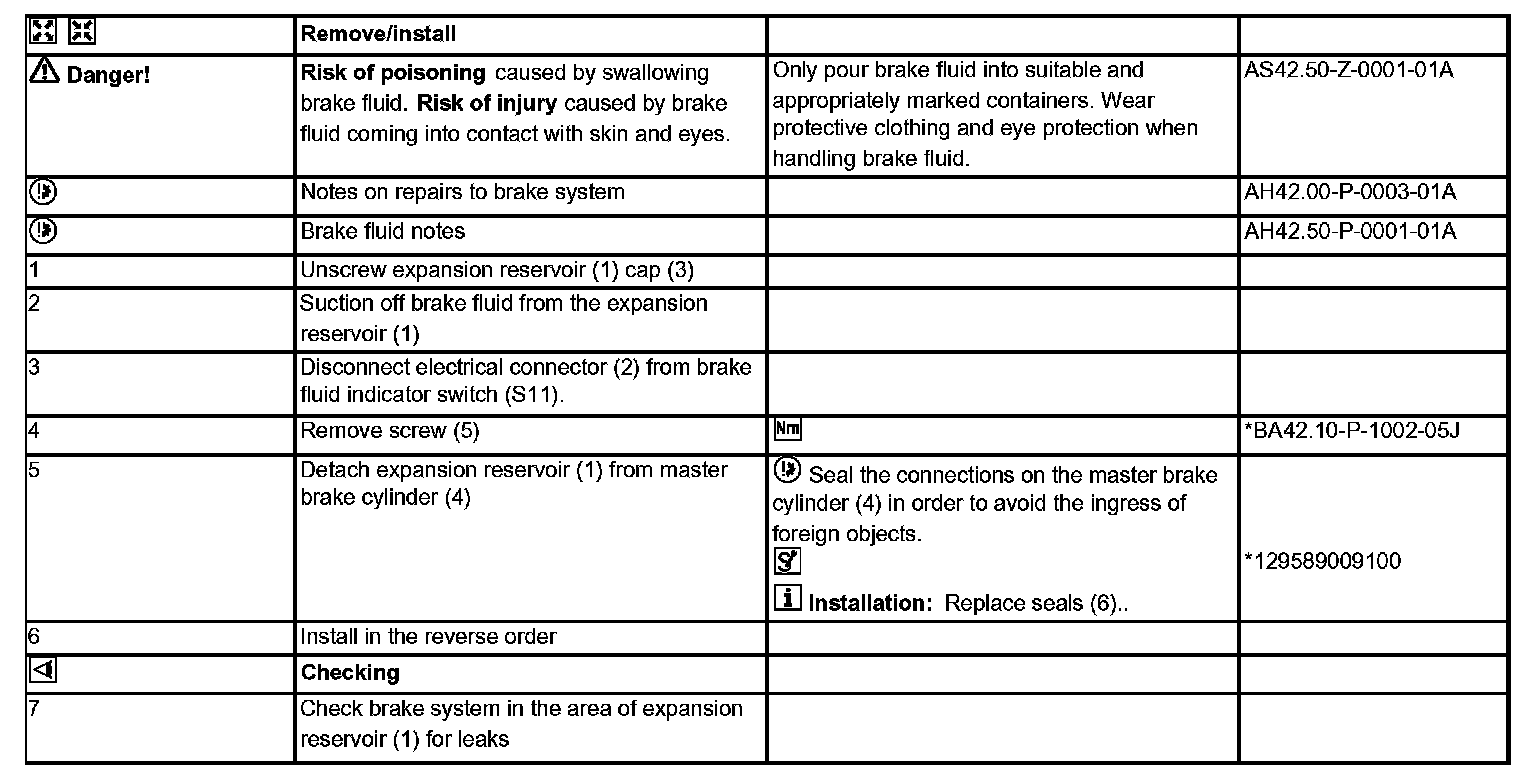

Remove/install Steps 1-7:

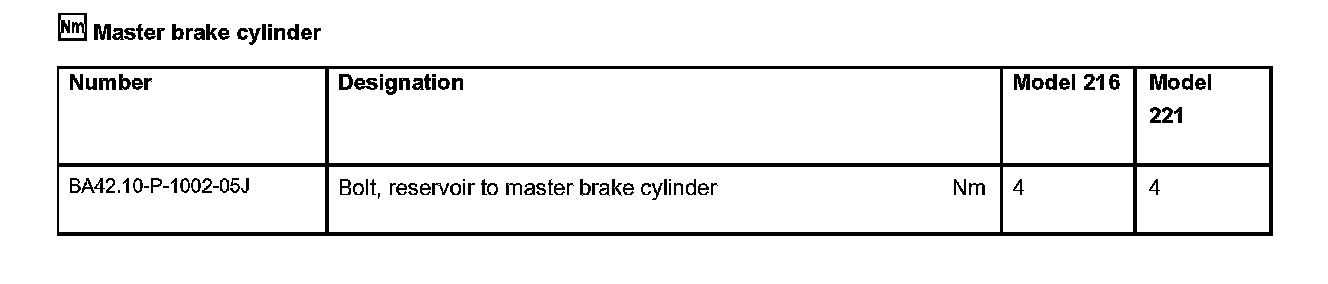

Master brake cylinder:

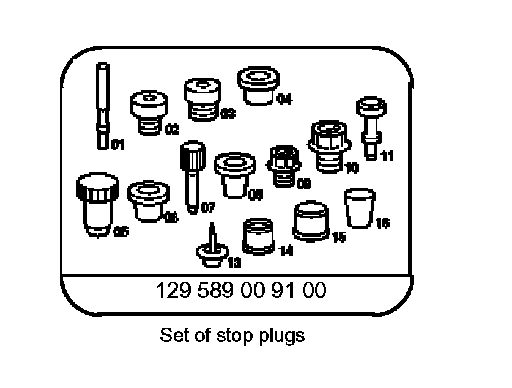

Special Tools:
