AR42.10-P-0300SX Remove/Install Master Brake Cylinder



AR42.10-P-0300SX Remove/install master brake cylinder

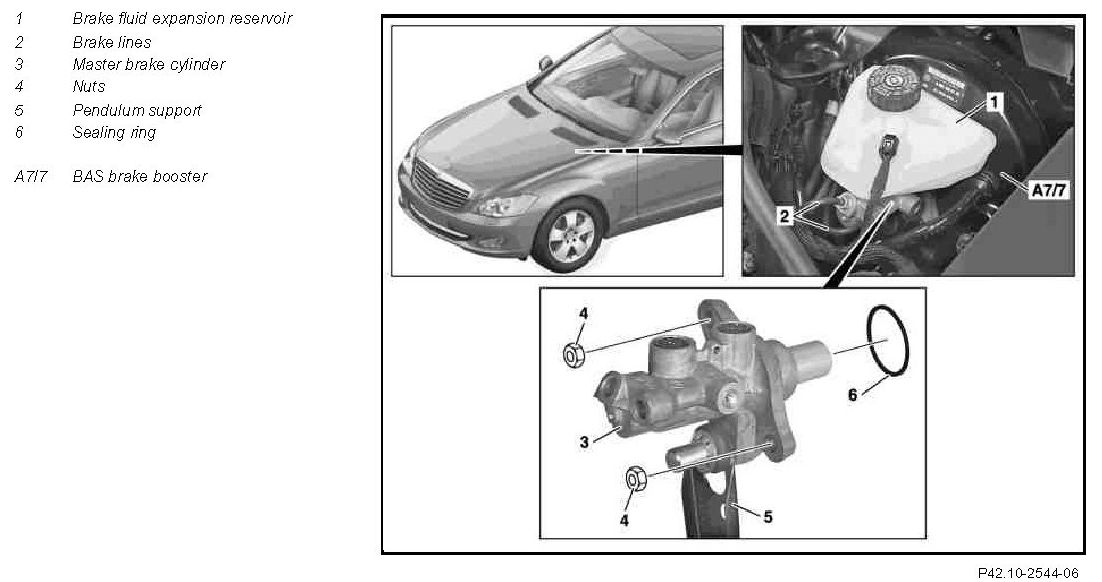

Component Identification:




Modification notes:

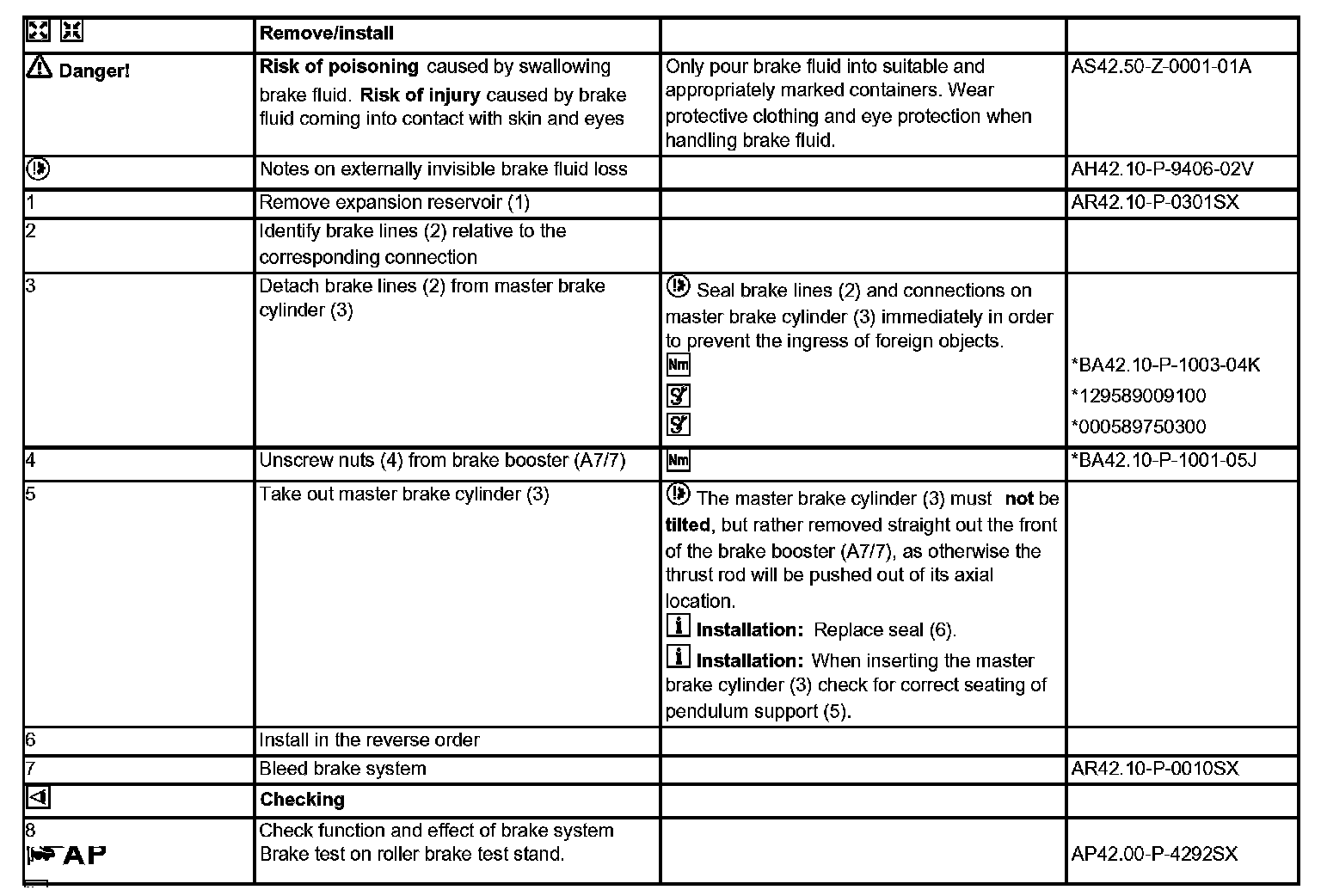

Remove/install Steps 1-8:

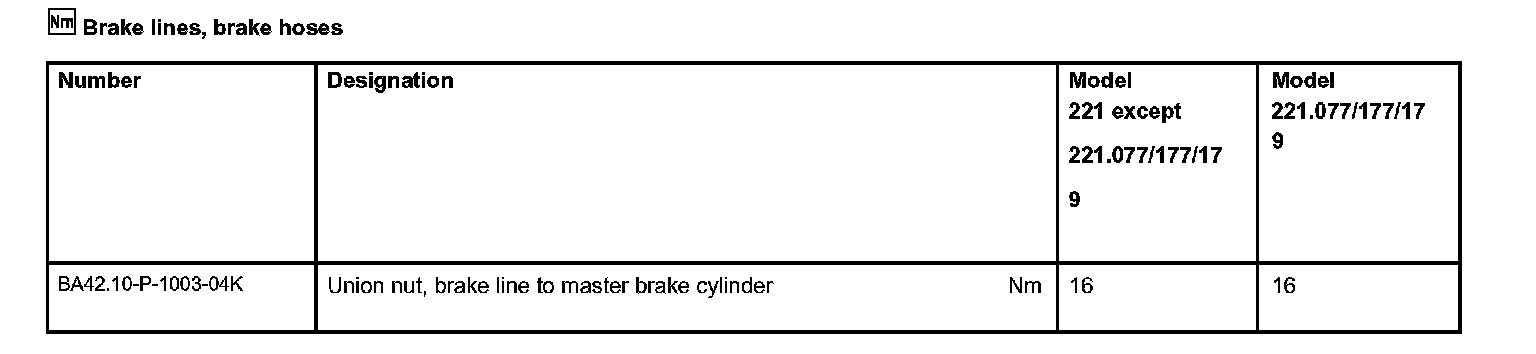

Brake lines, brake hoses:

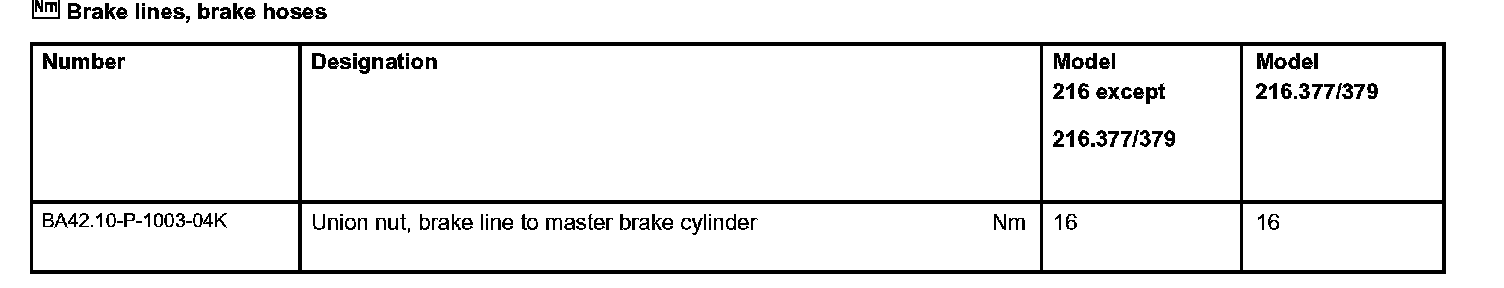

Brake lines, brake hoses:

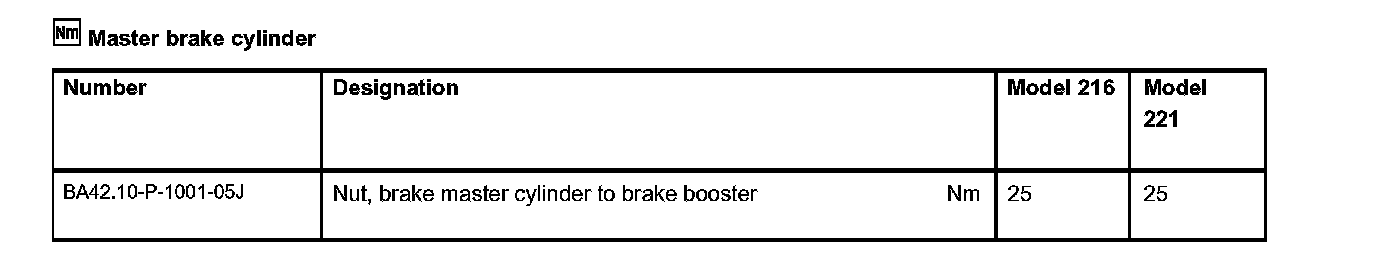

Master brake cylinder:

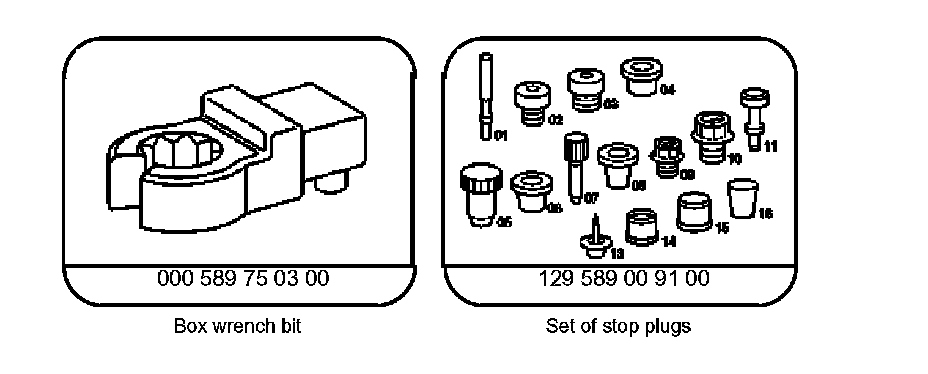

Special Tools:
