BE42.10-P-1000-09M Test Values For Rear Brake Disks



BE42.10-P-1000-09M Test values for rear brake disks

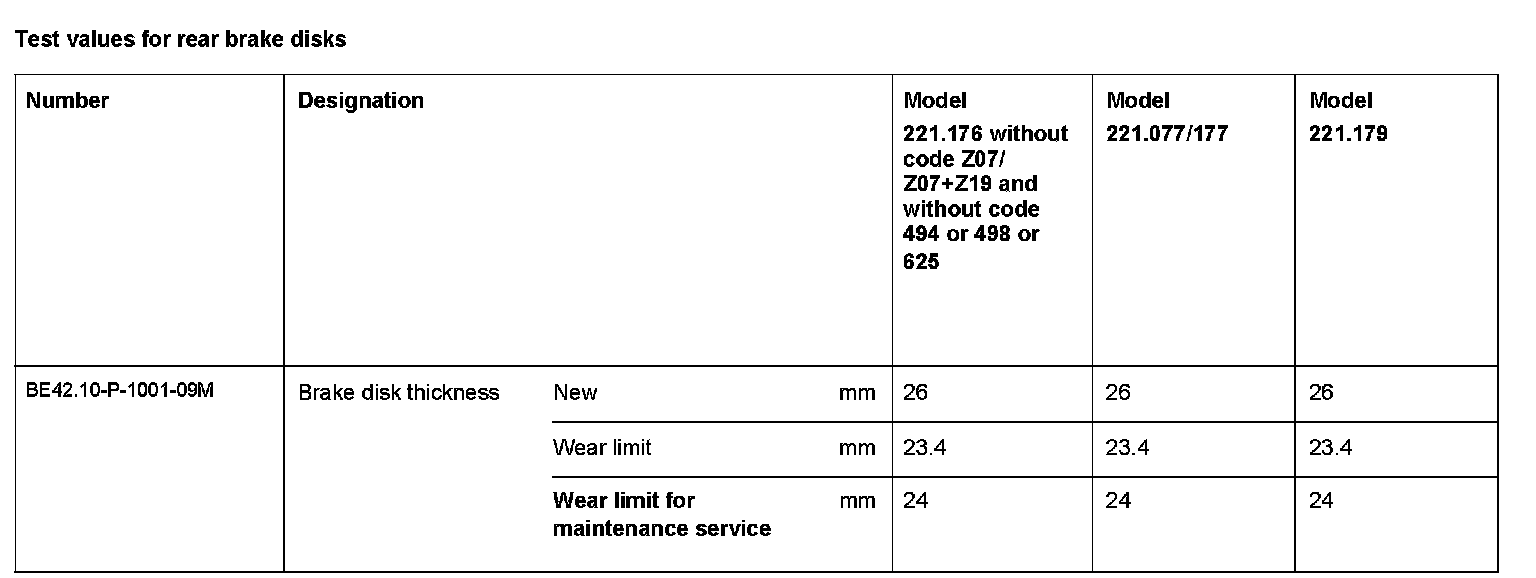

Test Values For Rear Brake Disks:

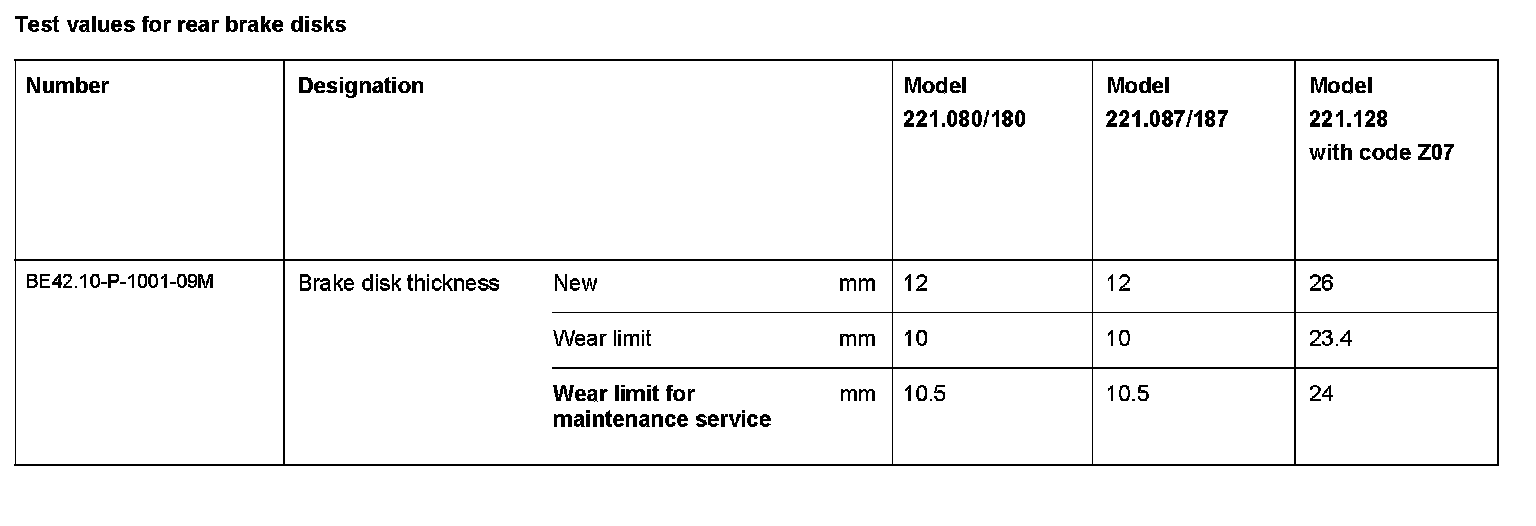

Test Values For Rear Brake Disks:

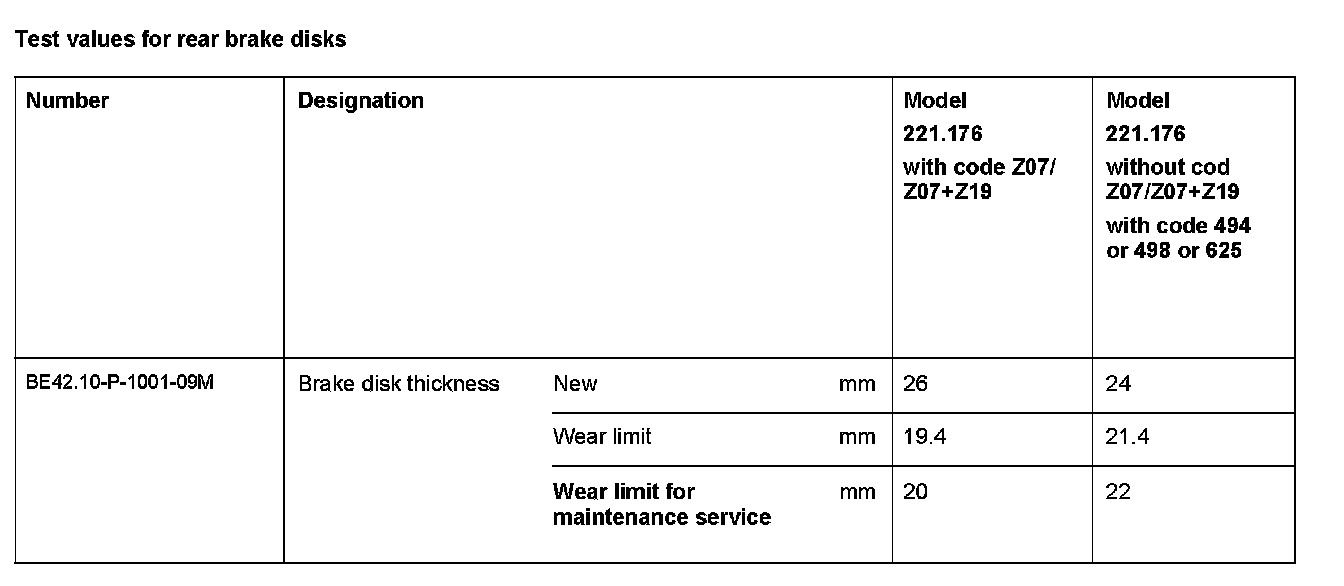

Test Values For Rear Brake Disks:




Test Values For Rear Brake Disks:




Test Values For Rear Brake Disks:




Test Values For Rear Brake Disks:
