Brake Rotor/Disc: Service and Repair

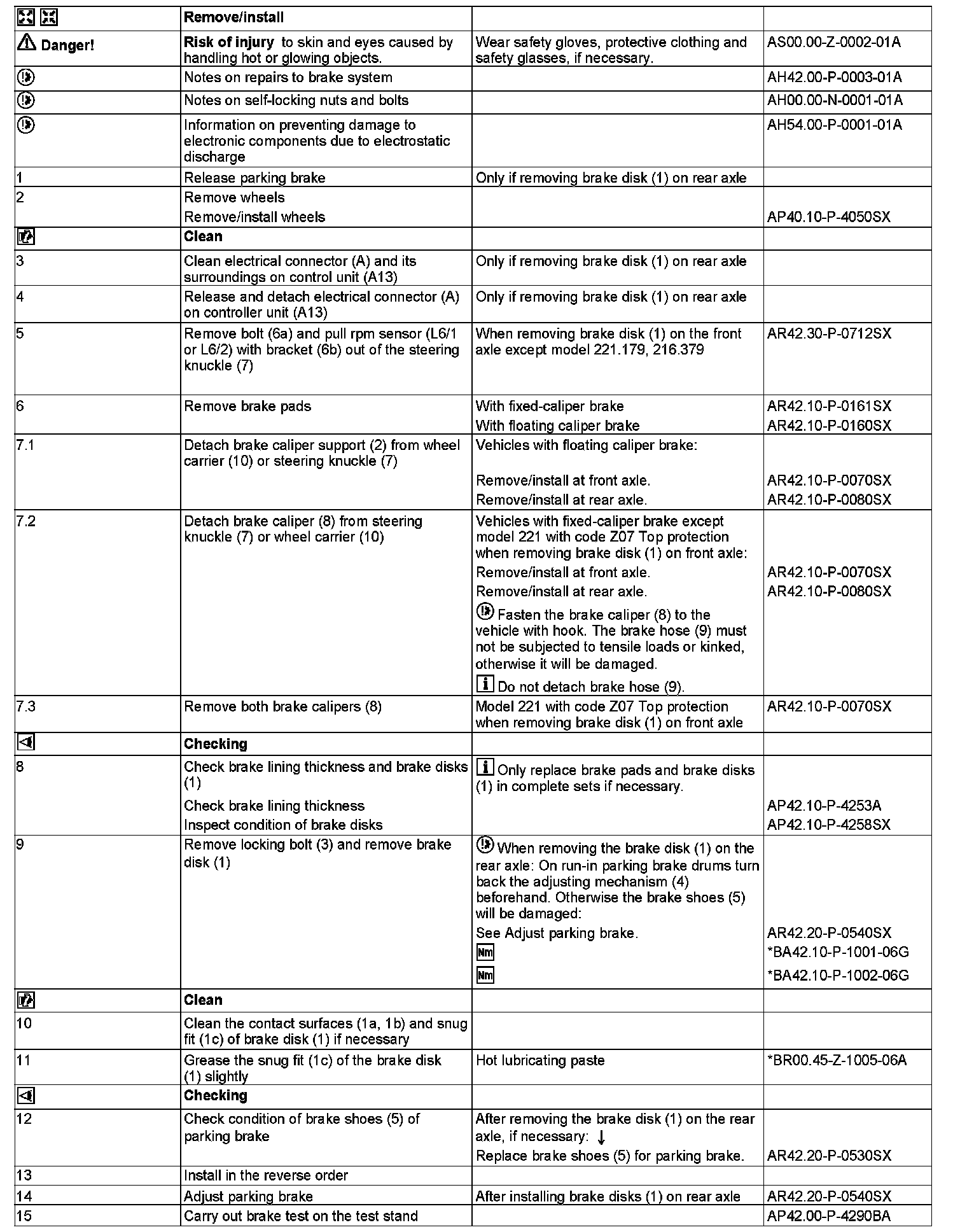

AR42.10-P-0220SX Remove/Install Brake Disc
MODEL 216
MODEL 221





A Electrical connector

A13 Electric parking brake control unit





1 Brake disk
1a, 1b Contact surface
1c Snug fit
2 Caliper support

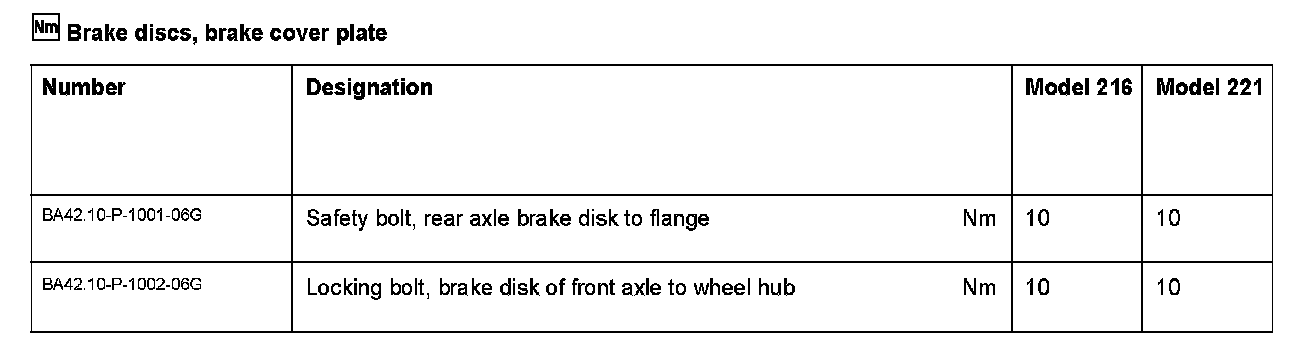

3 Security bolt
4 Adjusting mechanism
5 Brake shoes
8 Brake caliper
9 Brake hose
10 Wheel carrier





1 Brake disk
3 Security bolt
6a Screw
6b Bracket
7 Steering knuckle
8 Brake caliper

L6/1 Left front rpm sensor
L6/2 Right front rpm sensor
