AR42.10-P-0080SX Remove/Install Rear Axle Brake Caliper



AR42.10-P-0080SX Remove/install rear axle brake caliper

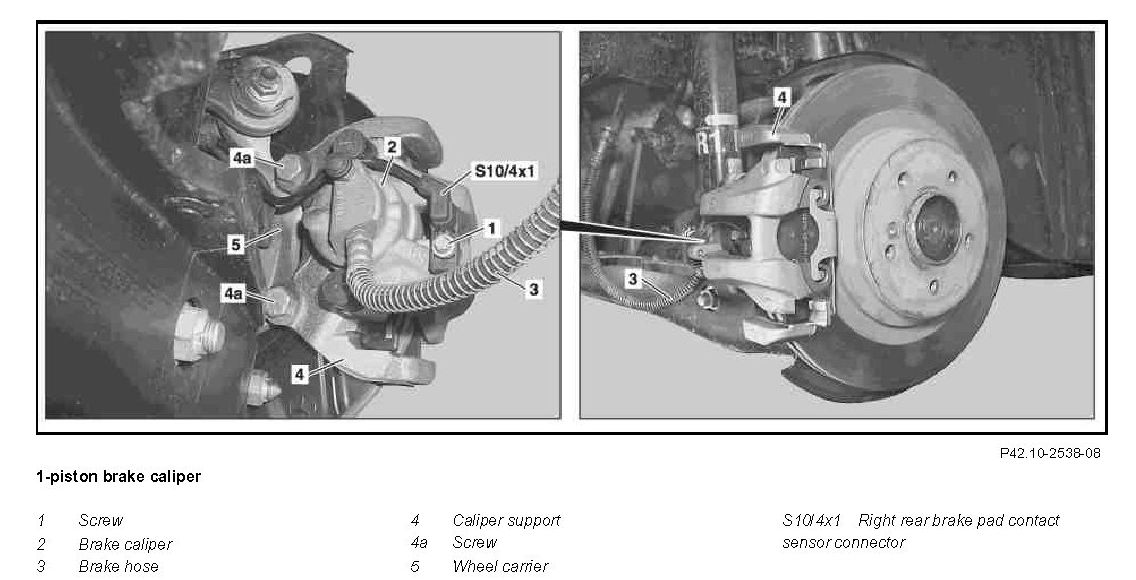

Component Identification:

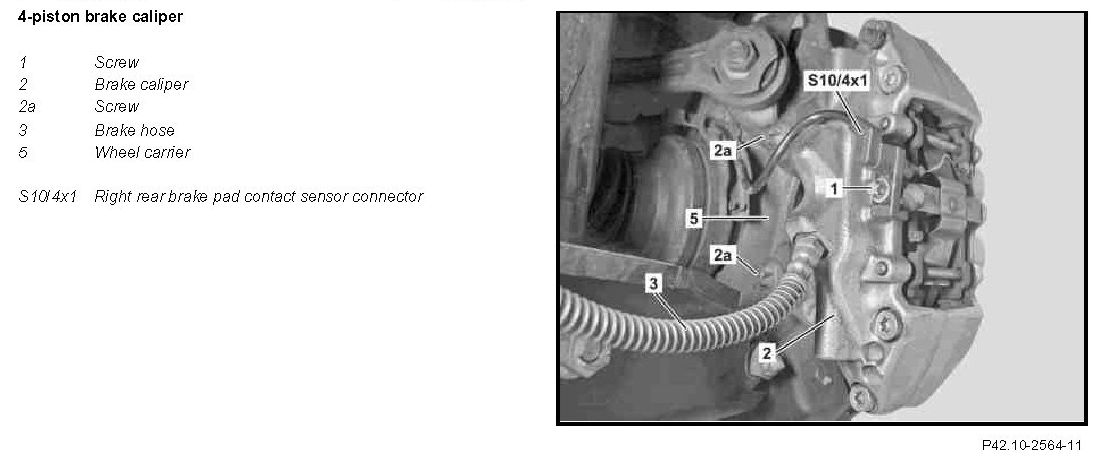

Component Identification:

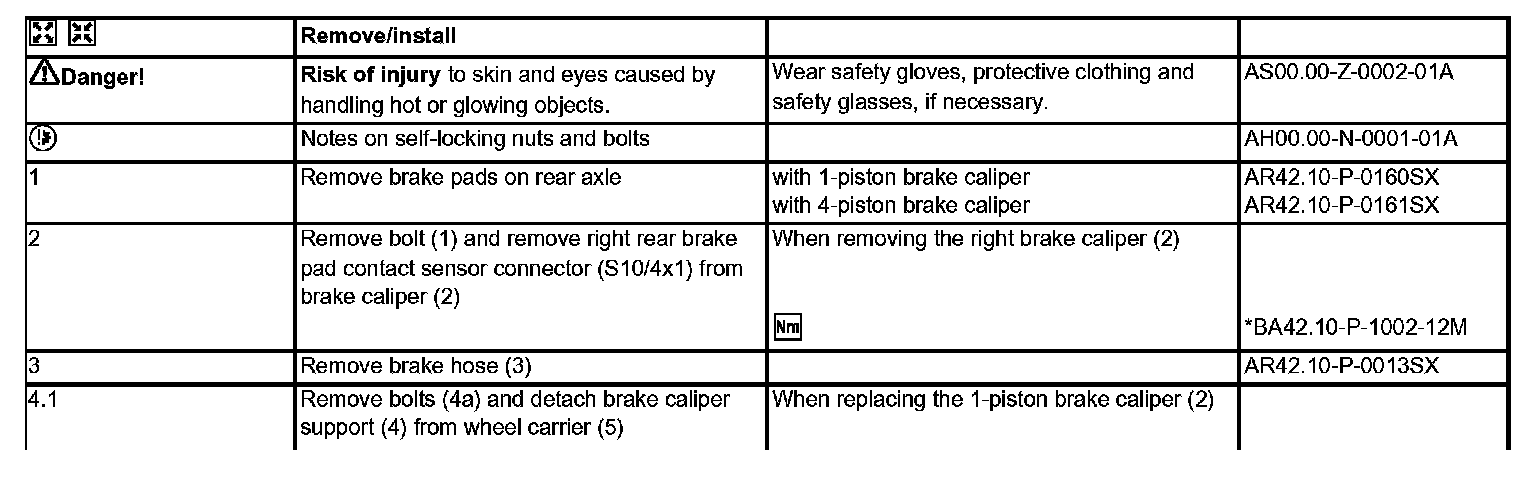

Remove/install Steps 1-4.1:

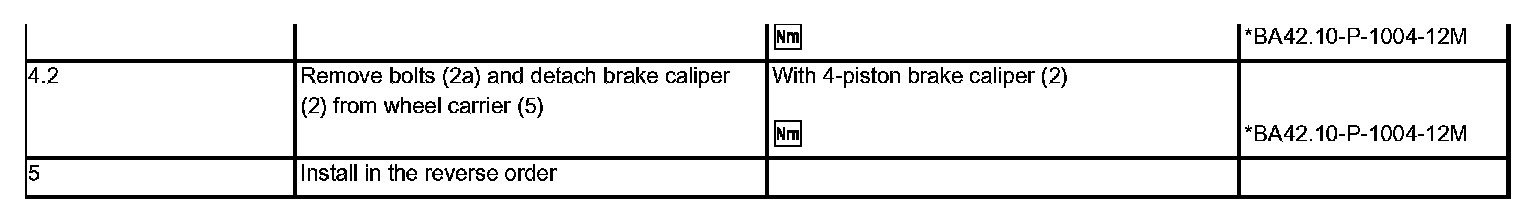

Remove/install Steps 4.1 (Continued)-5:

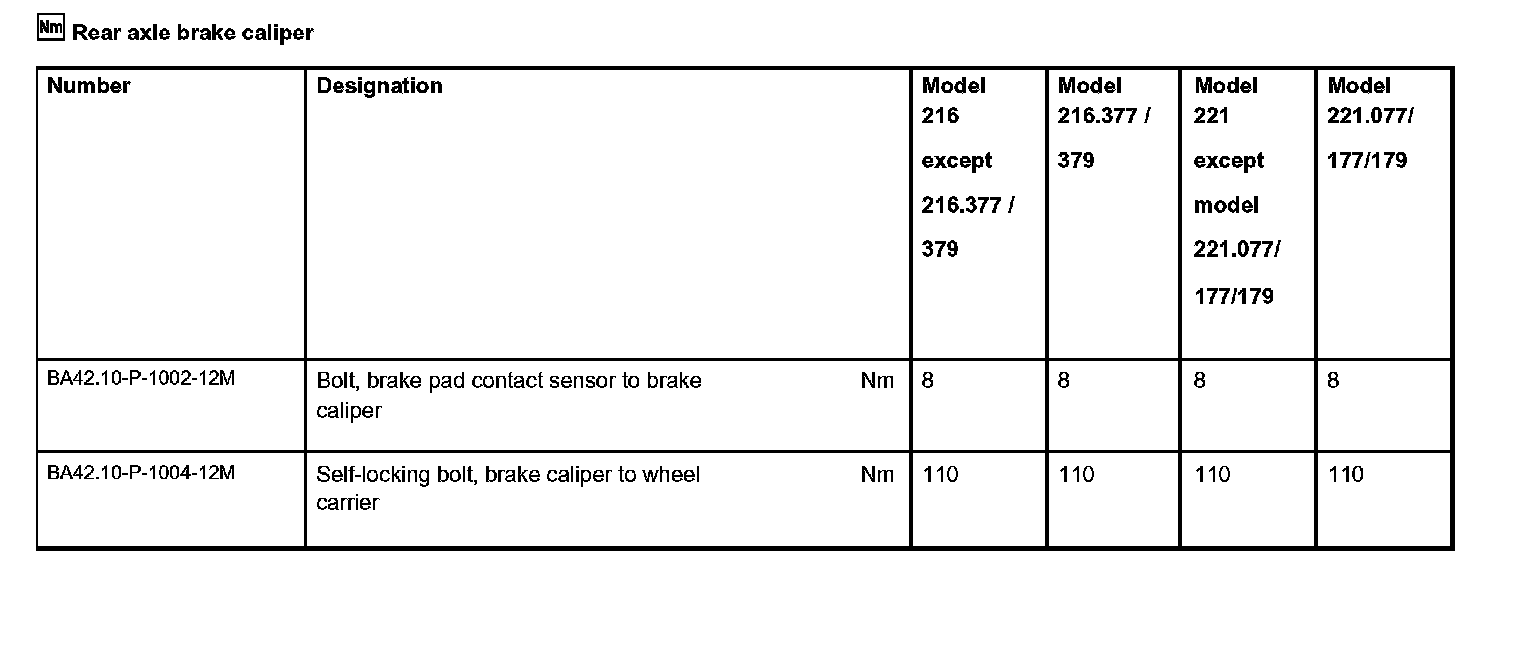

Rear axle brake caliper:
