AR77.21-P-0620SX Remove/Install Panoramic Rear Glass Roof Seal



AR77.21-P-0620SX Remove/Install Panoramic Rear Glass Roof Seal
- with CODE (413) Panoramic glass roof with top sliding roof

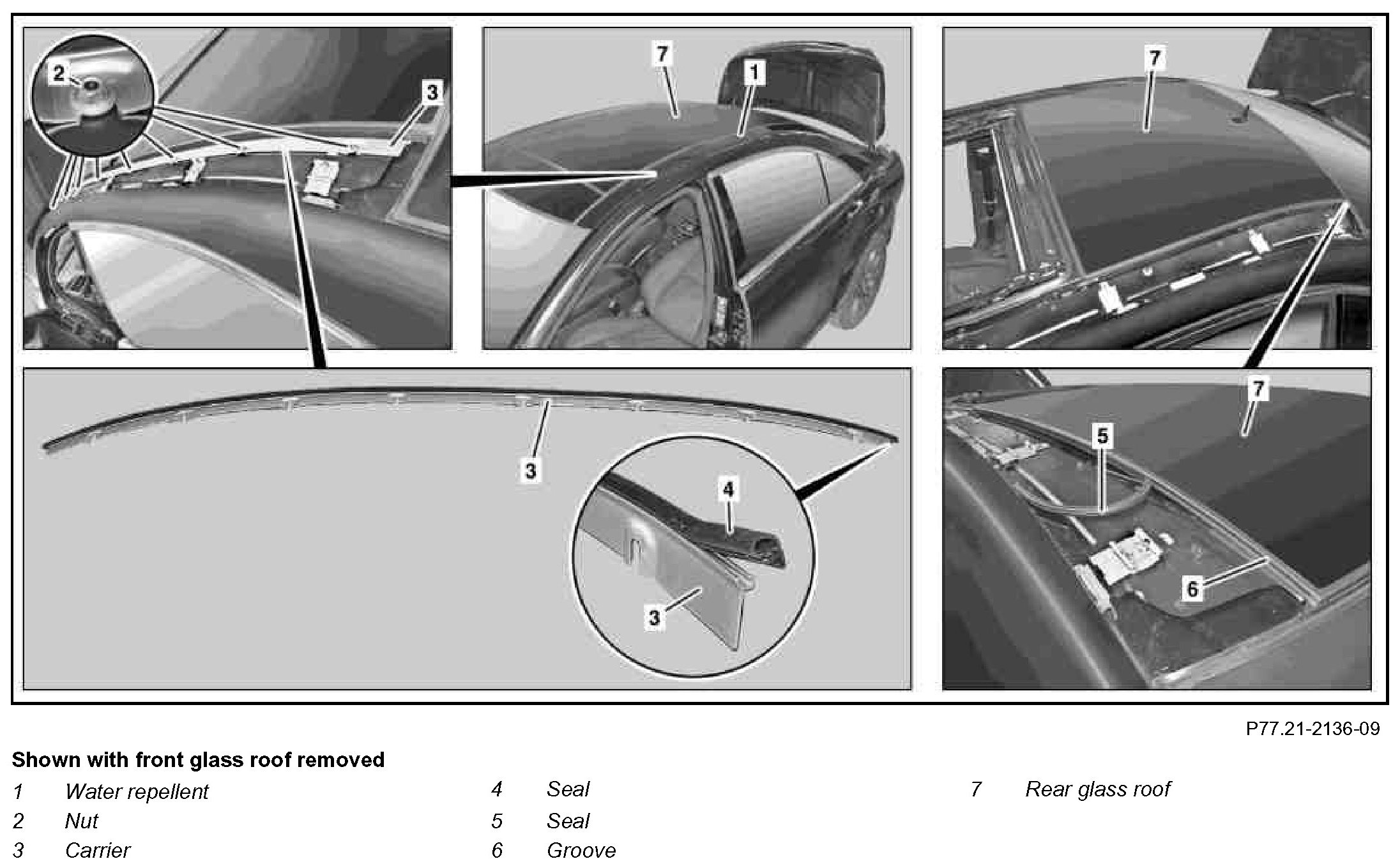

Component Identification:

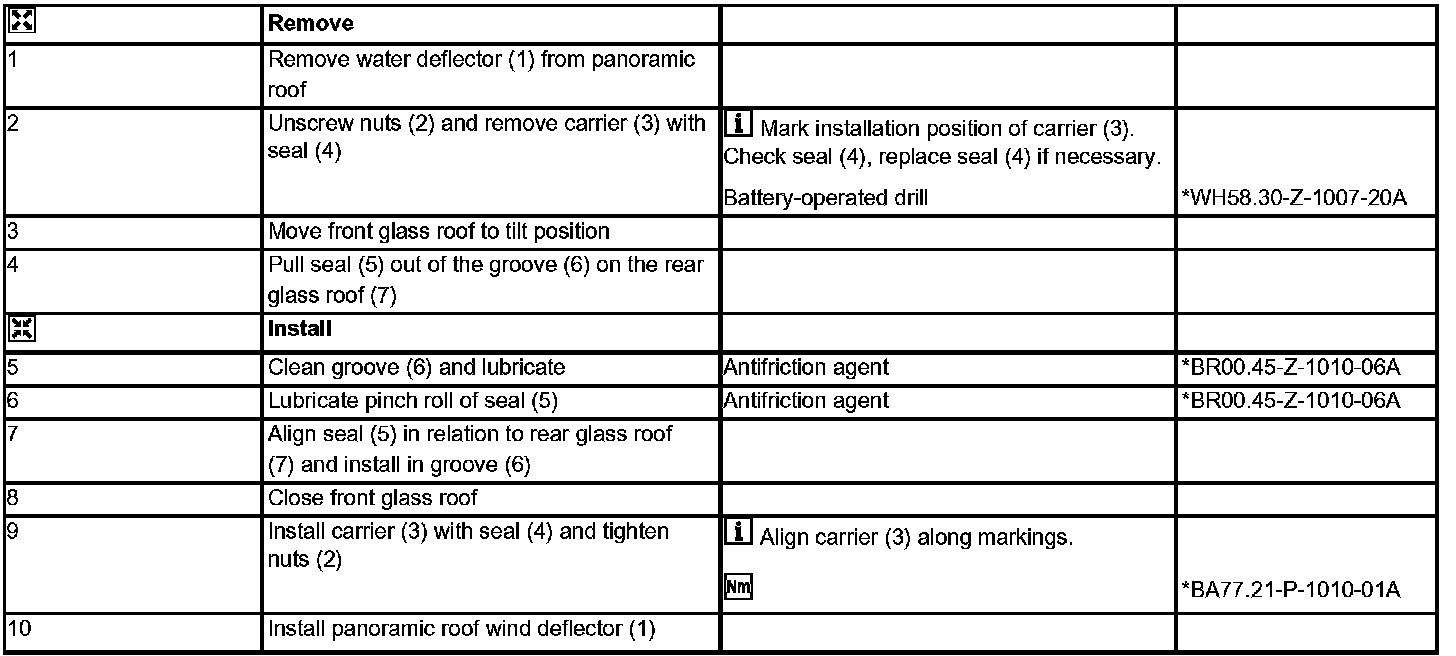

Steps 1 - 10:

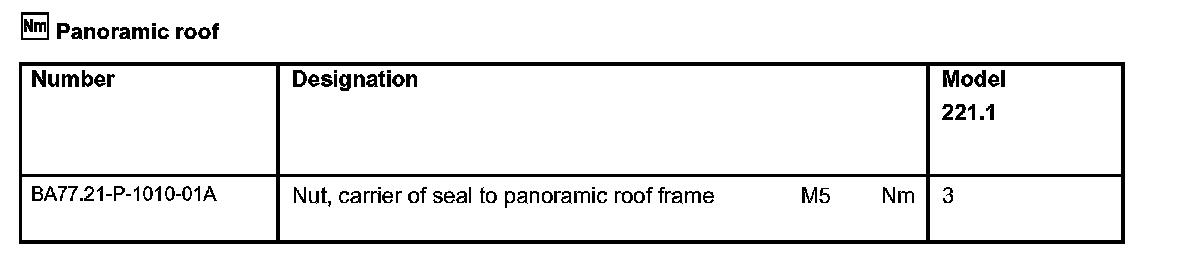

Panoramic Roof:

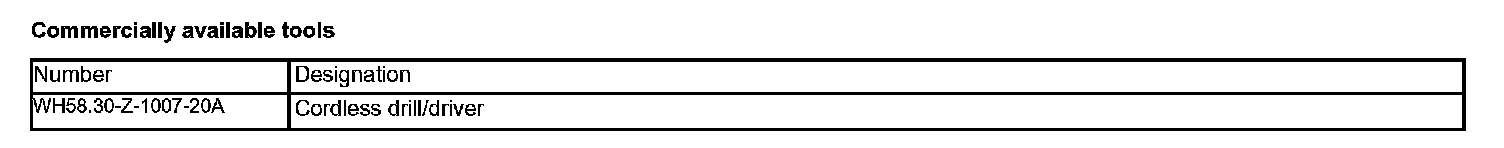

Commercially Available Tools:

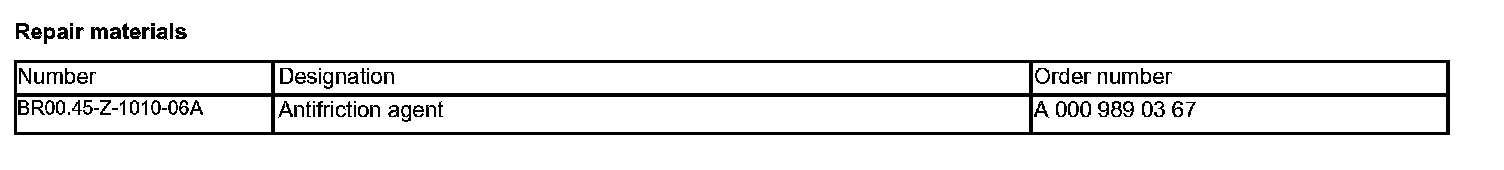

Repair materials:
