AR72.12-P-1550SX Remove/Install Seal (Upper) on Rear Door Window Frame



AR72.12-P-1550SX Remove/Install Seal (Upper) On Rear Door Window Frame
- except CODE (Z07) Top protection

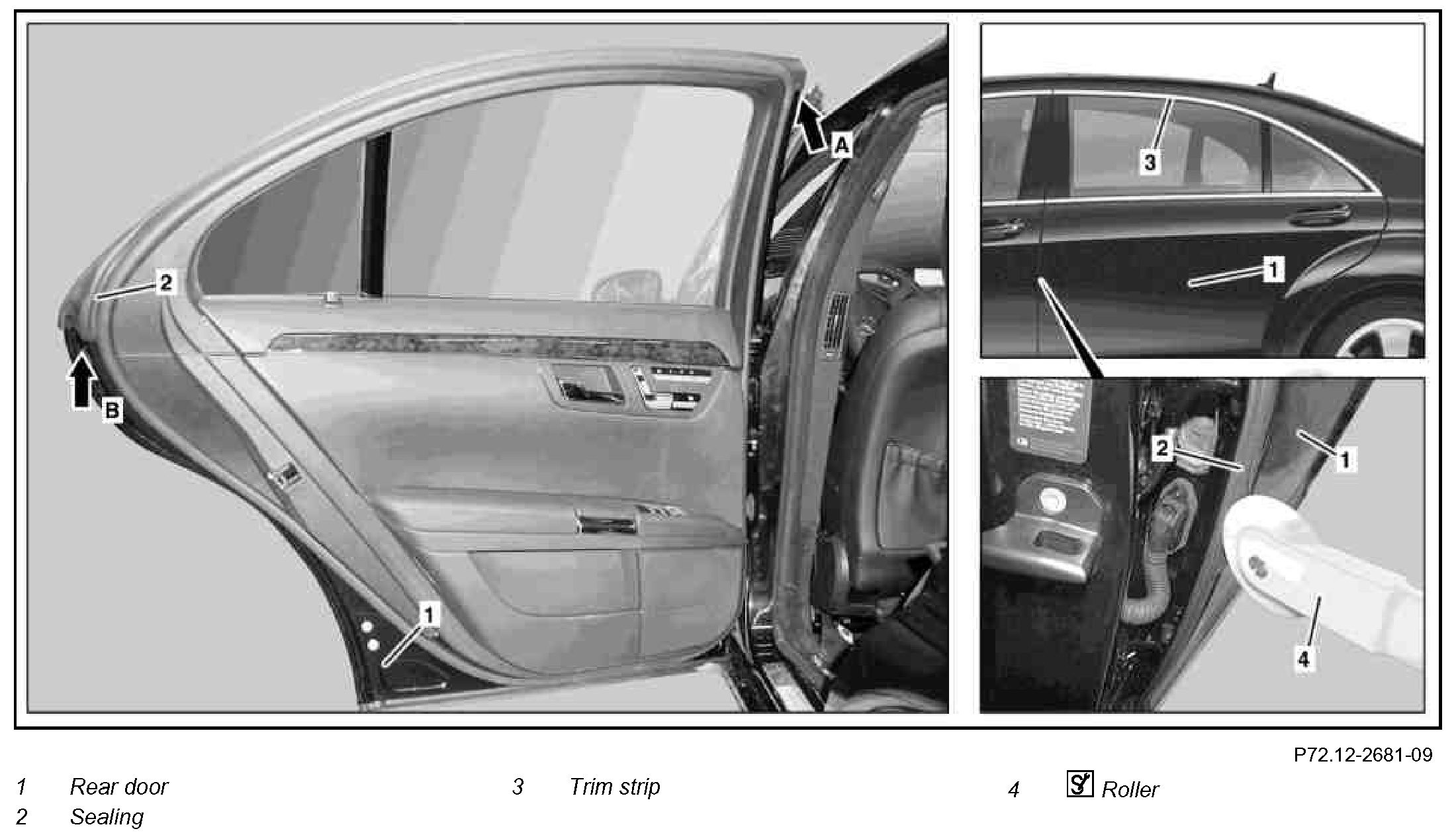

Component Identification:

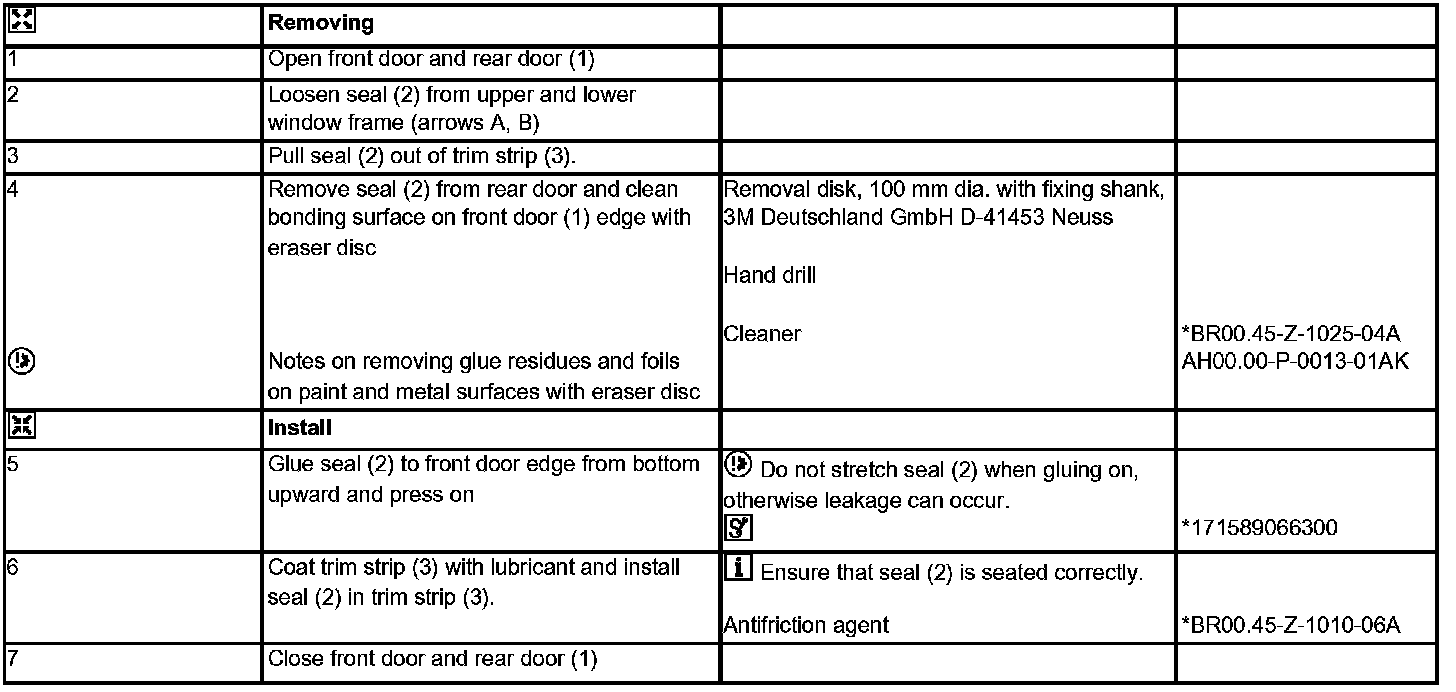

Steps 1 - 7:

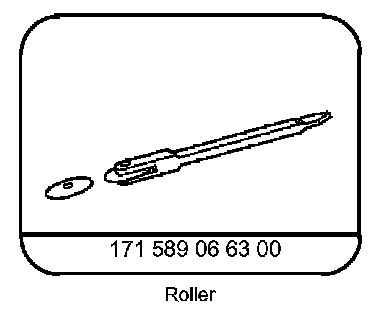

Special Tools:

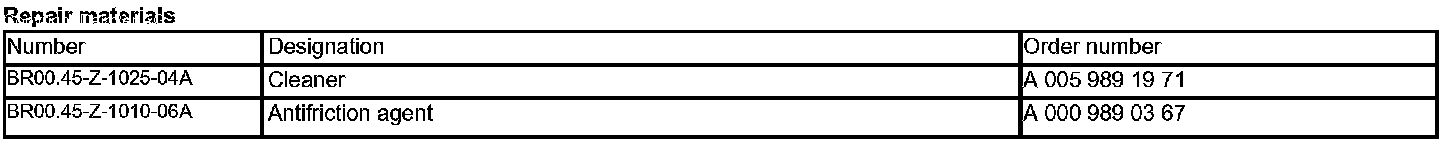

Repair Materials:
