AR72.12-P-1015SXS Remove/Install Door Frame Seal on Rear Door



AR72.12-P-1015SXS Remove/Install Door Frame Seal On Rear Door
- with CODE (Z07) Top protection

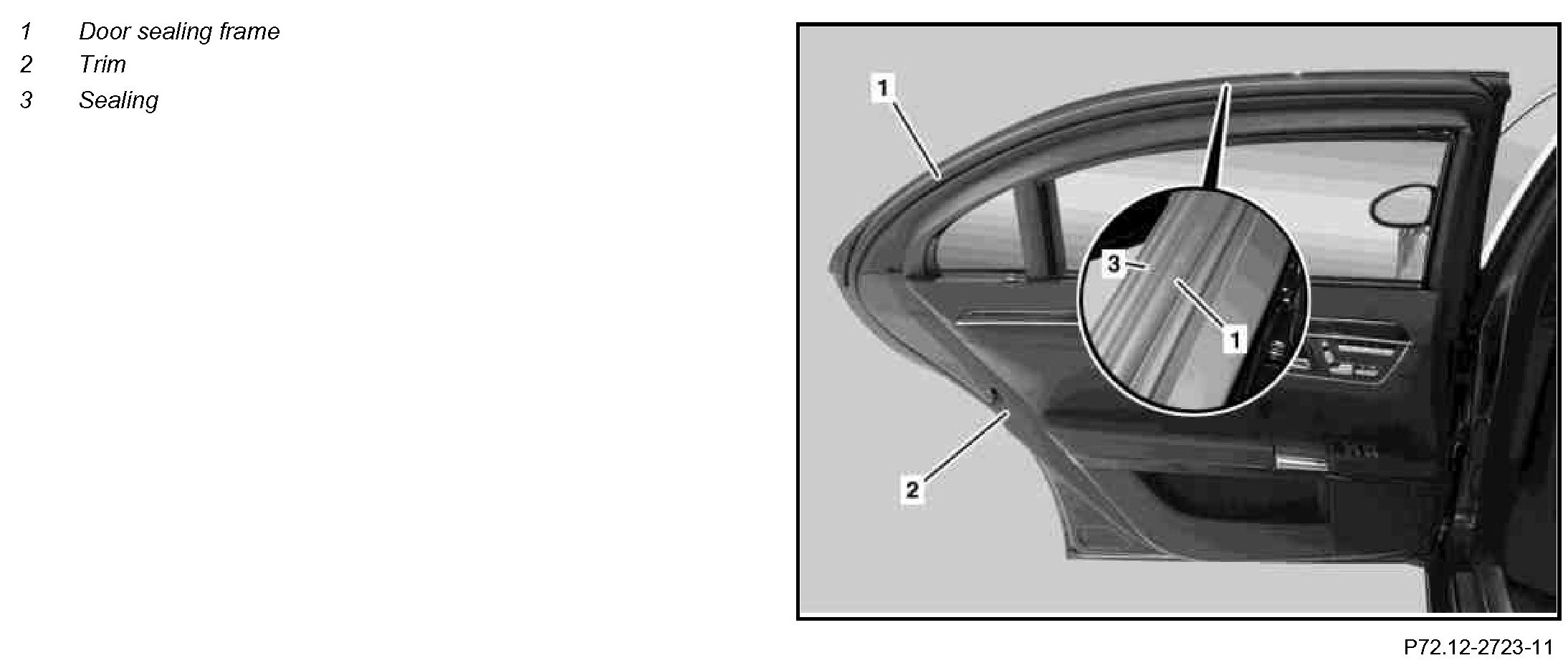

Component Identification:

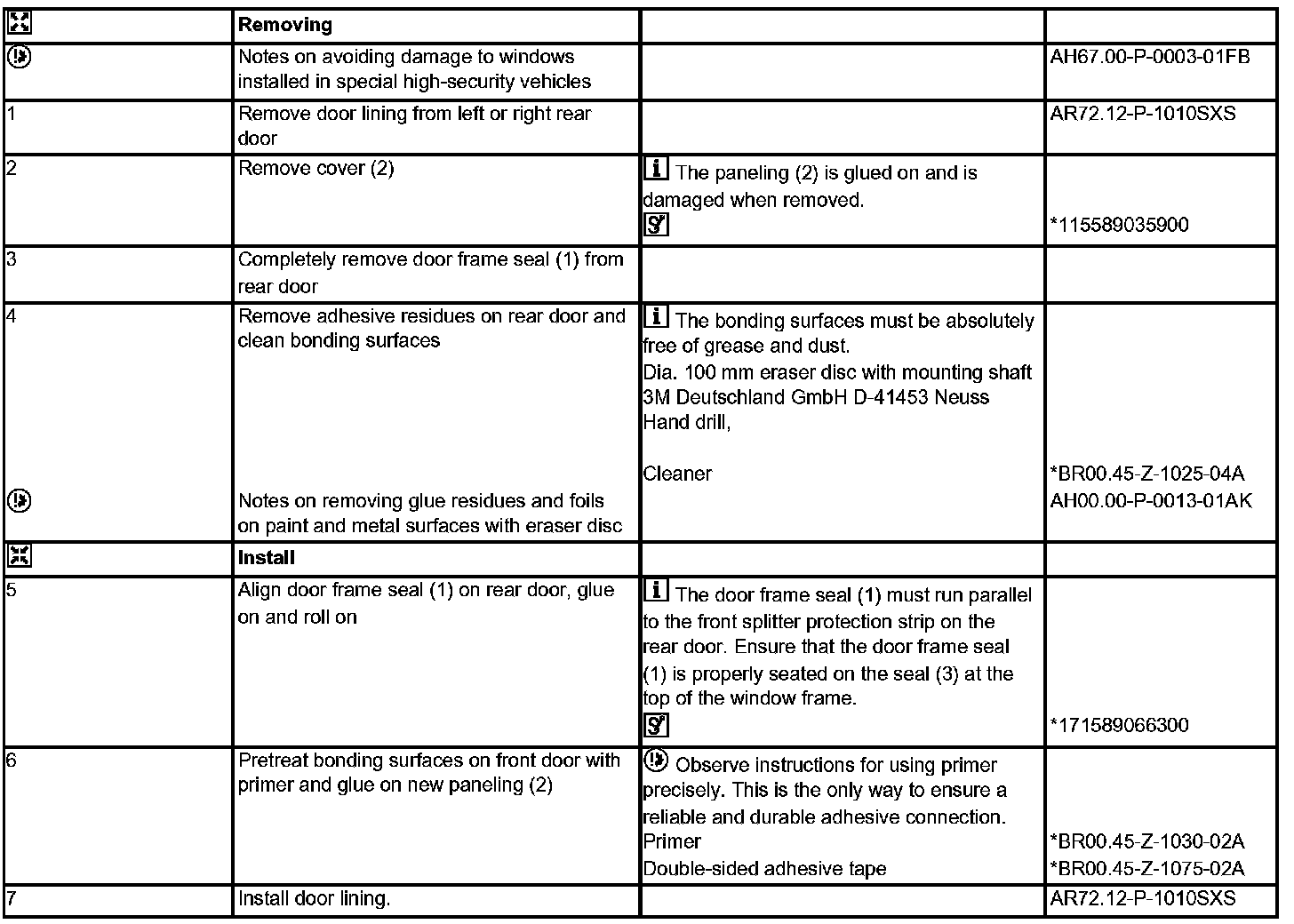

Steps 1 - 7:

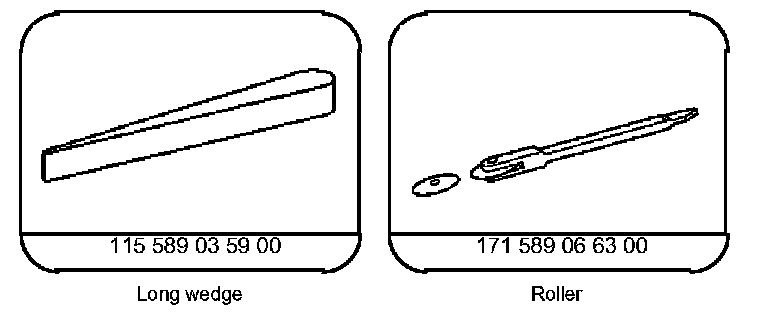

Special Tools:

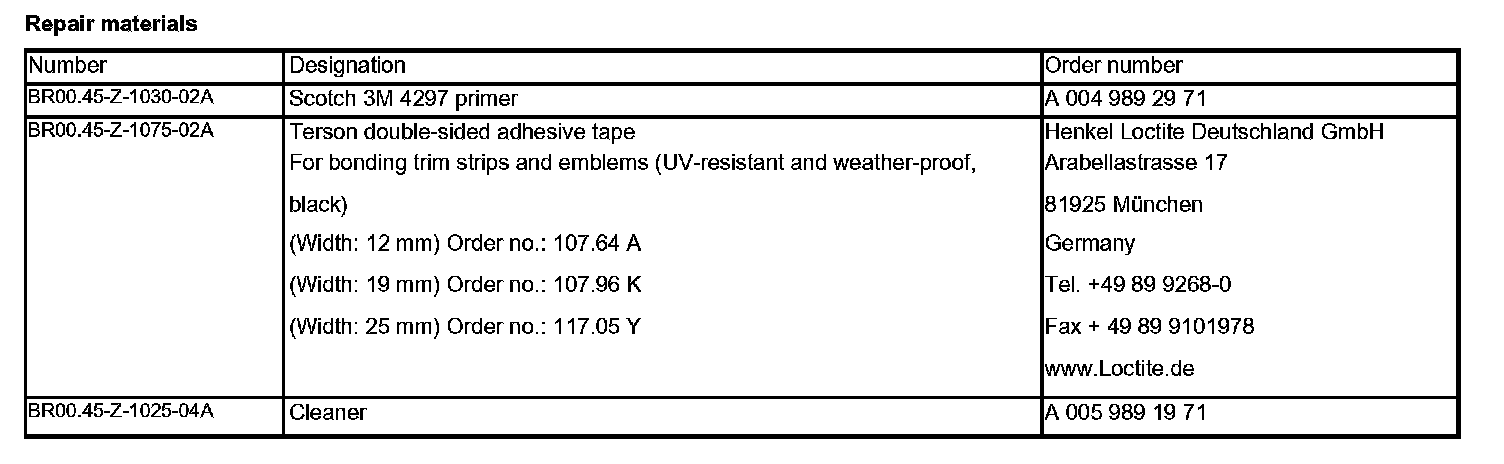

Repair Materials:
