AR72.10-P-2120SXS Remove/Install Door Frame Seal



AR72.10-P-2120SXS Remove/Install Door Frame Seal
- with CODE (Z07) Top protection

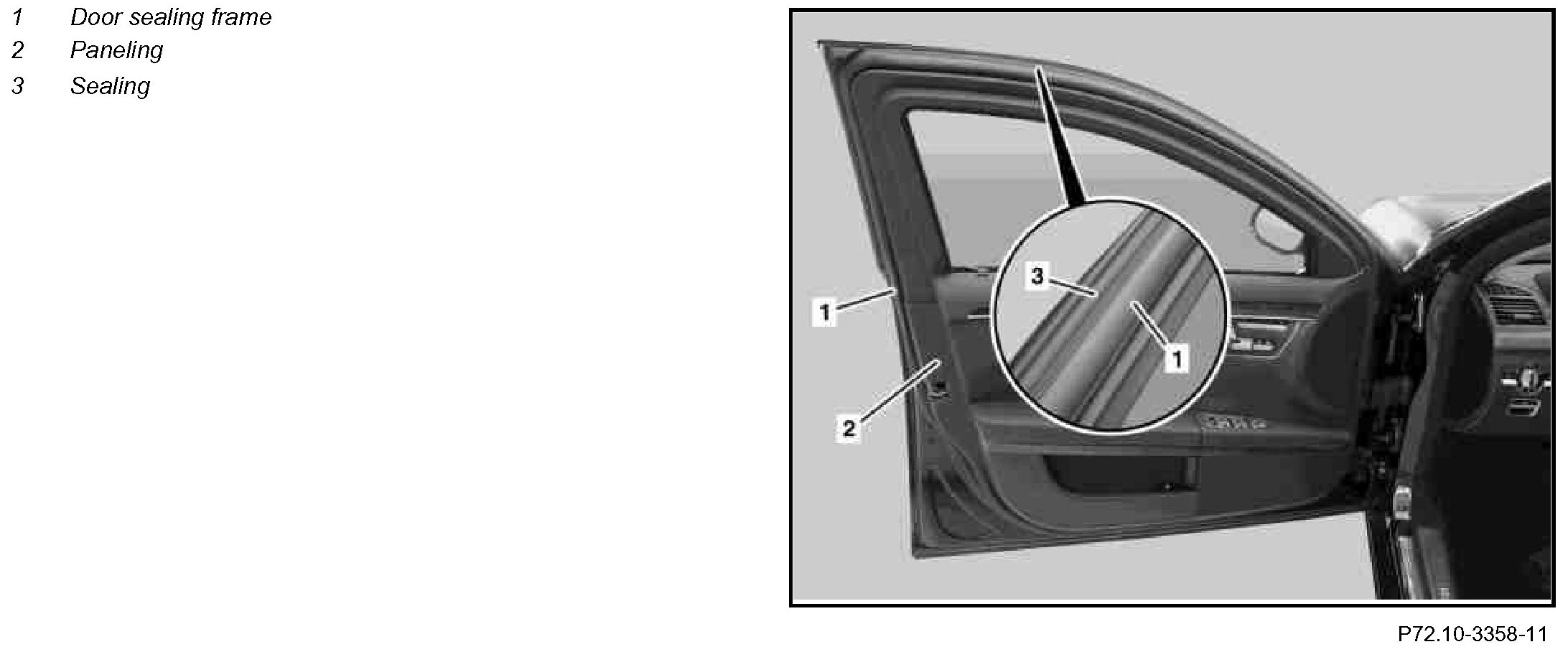

Component Identification:

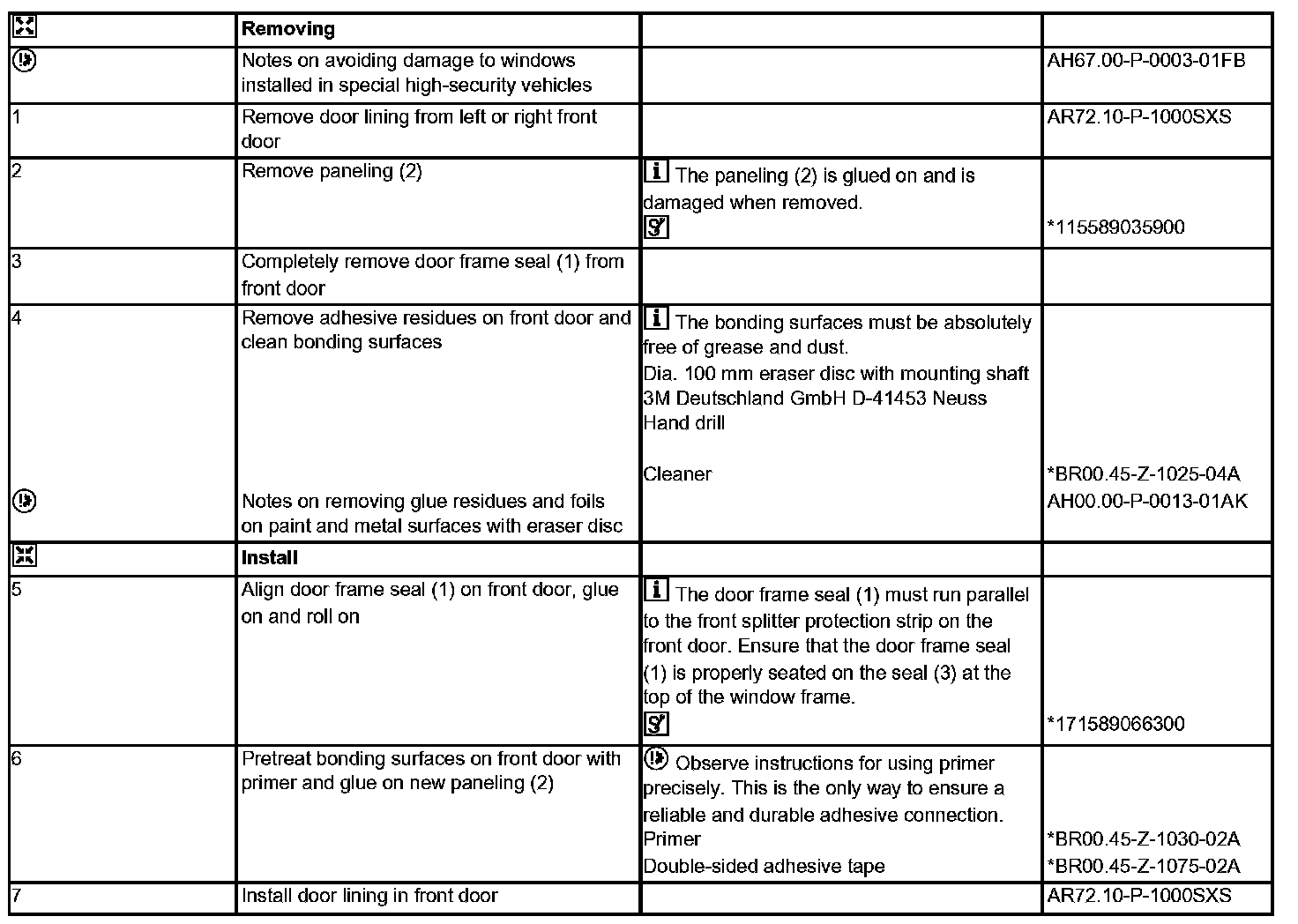

Steps 1 - 7:

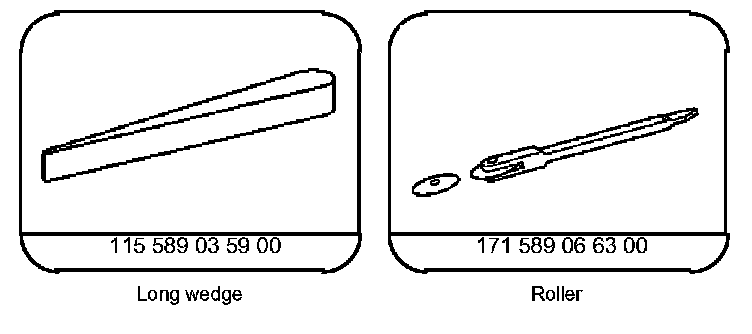

Special Tools:

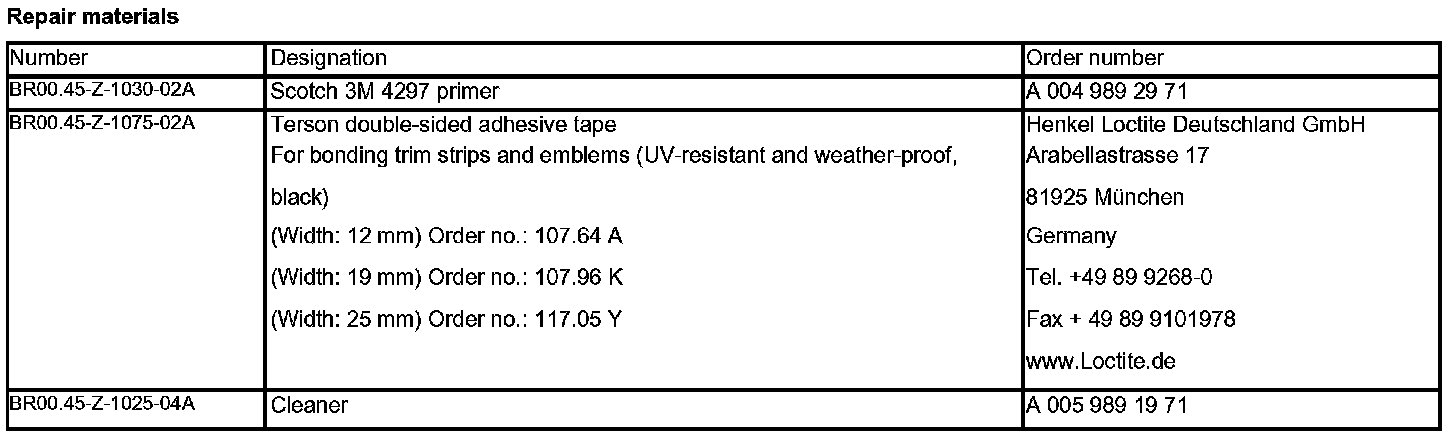

Repair Materials:
