AR72.10-P-2120SX Remove/Install Door Frame Seal



AR72.10-P-2120SX Remove/Install Door Frame Seal
- except CODE (Z07) Top protection

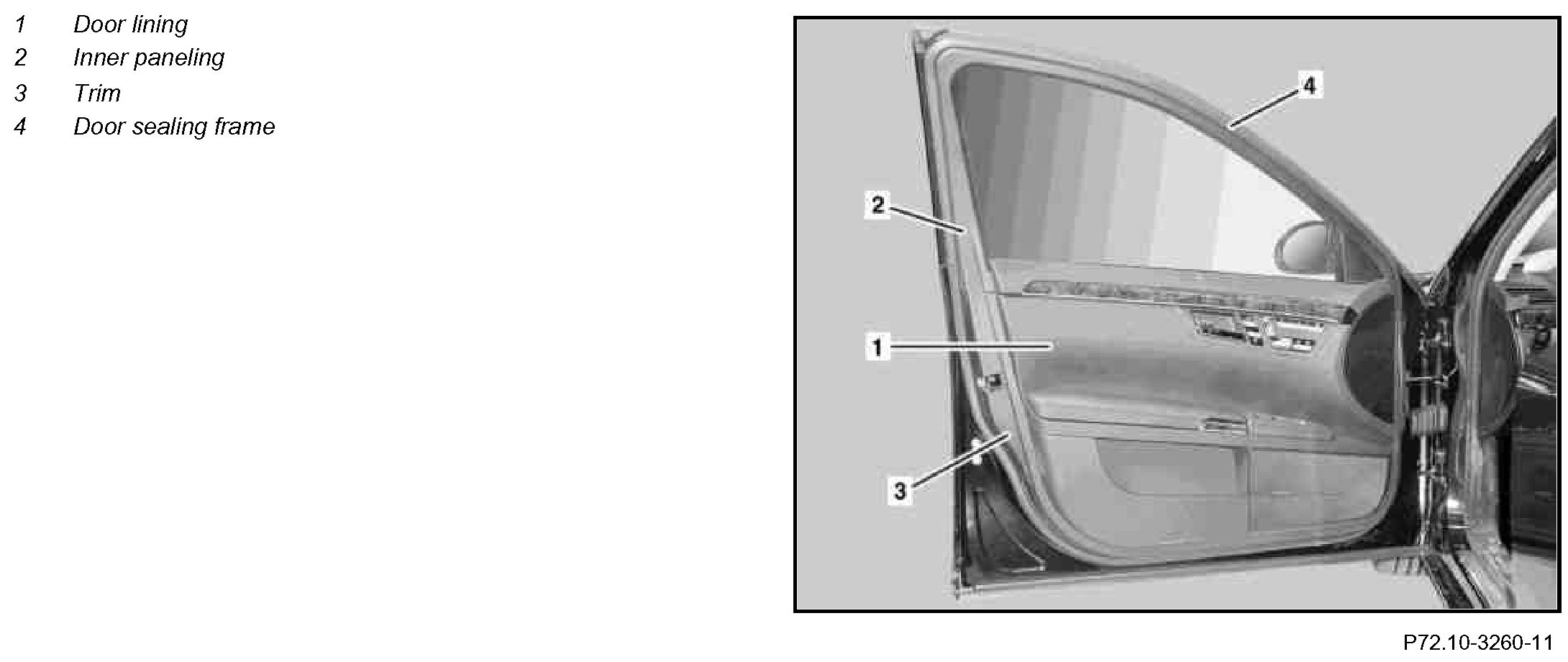

Component Identification:

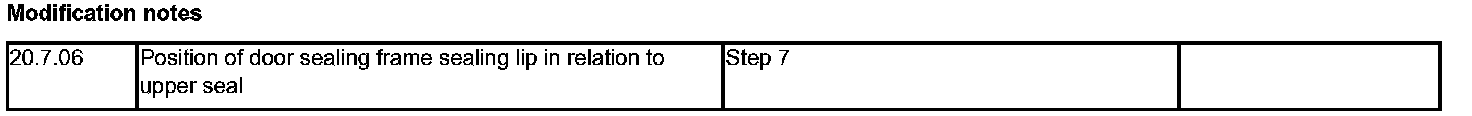

Modification Notes:

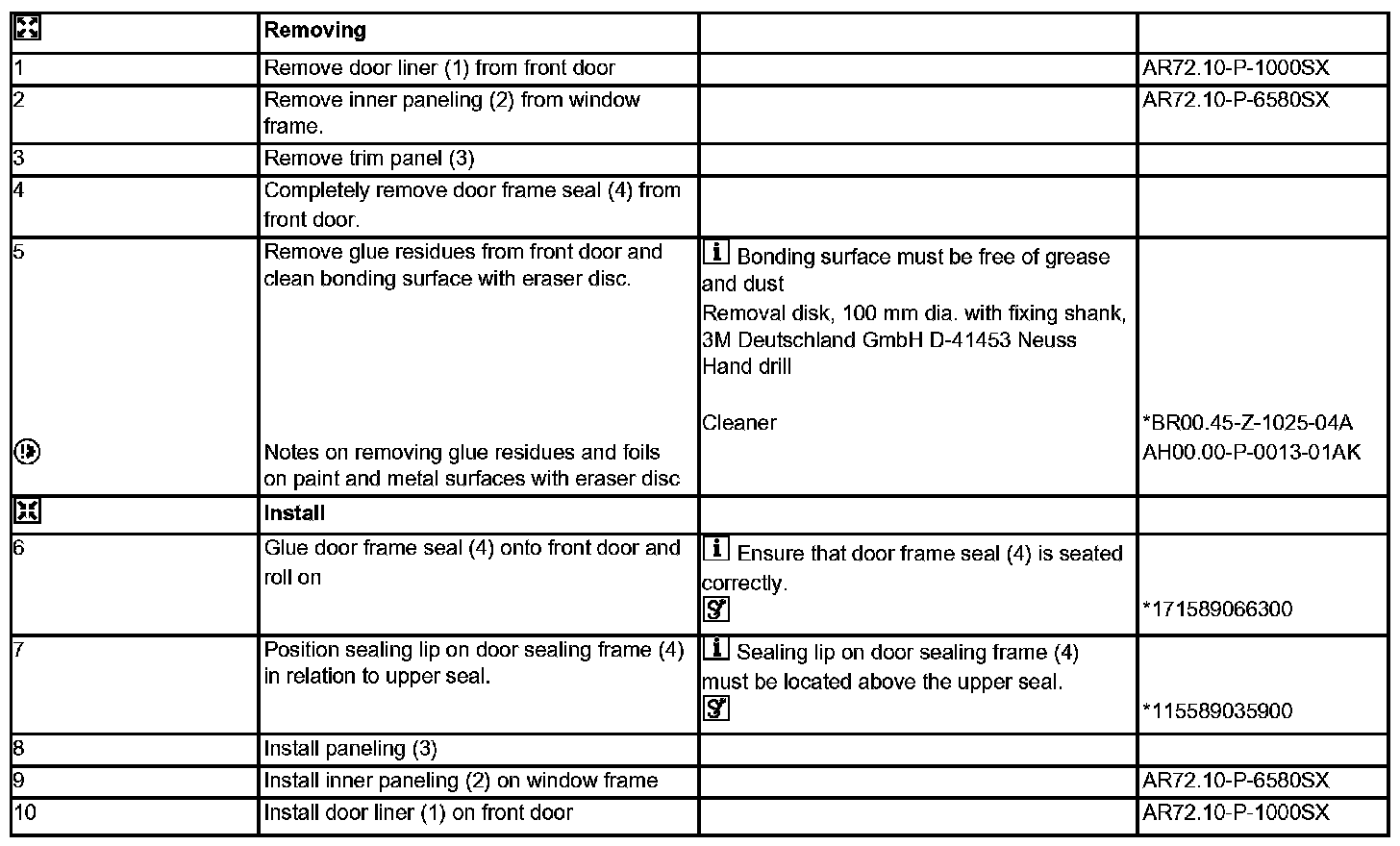

Steps 1 - 10:

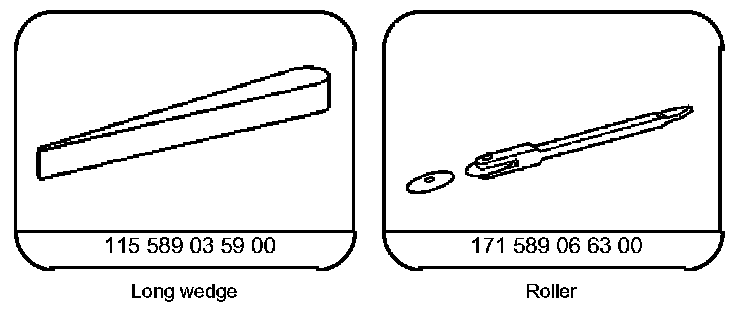

Special Tools:

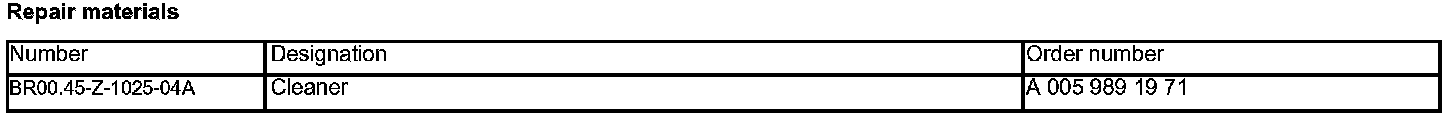

Repair Materials:
