Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Body and Frame >> Weatherstrip >> Front Door Weatherstrip >> Service and Repair >> AR72.10-P-1780SX Remove/Install Door Joint Seal on Front Door

AR72.10-P-1780SX Remove/Install Door Joint Seal on Front Door



AR72.10-P-1780SX Remove/Install Door Joint Seal On Front Door

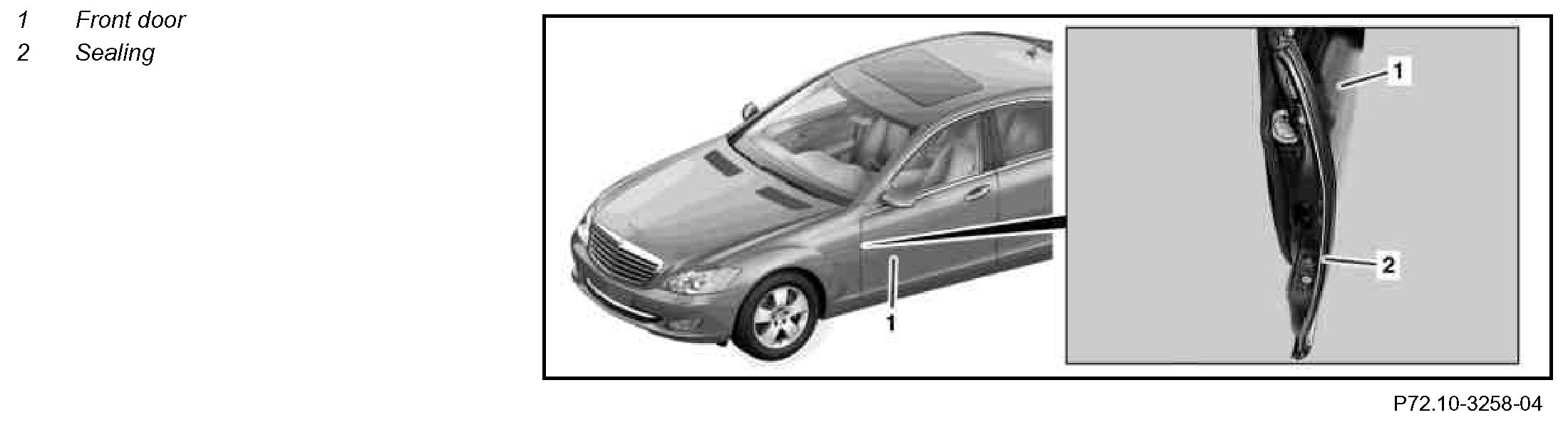

Component Identification:

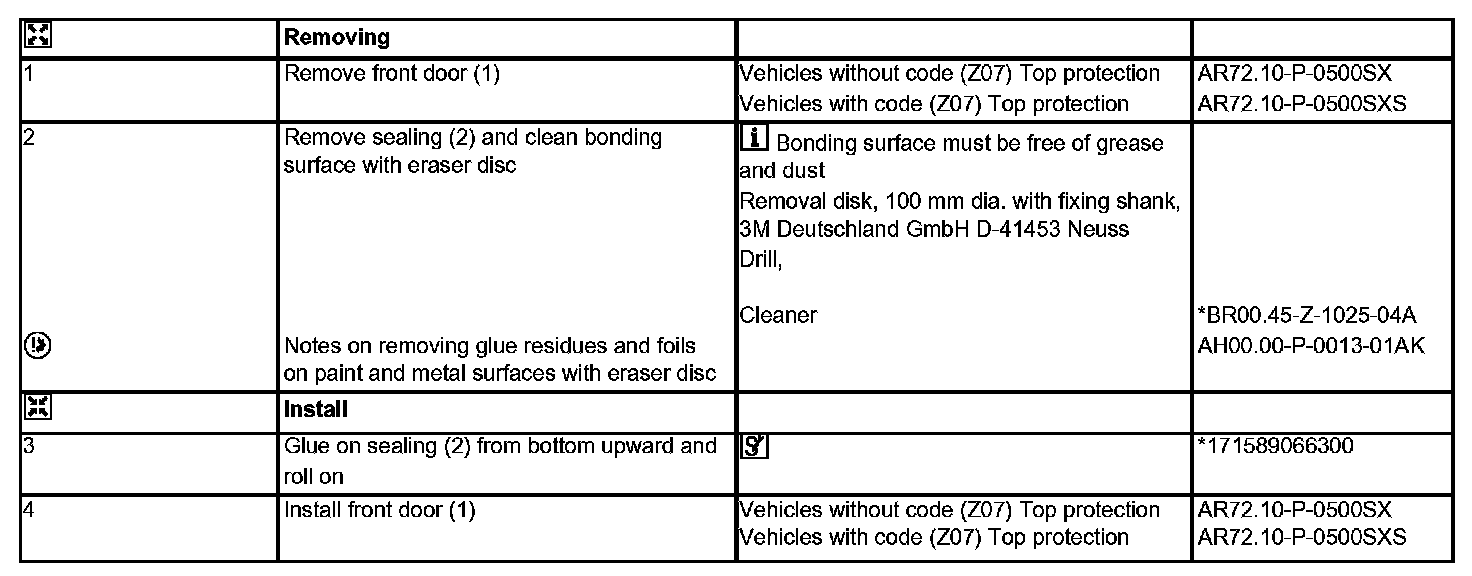

Steps 1 - 4:

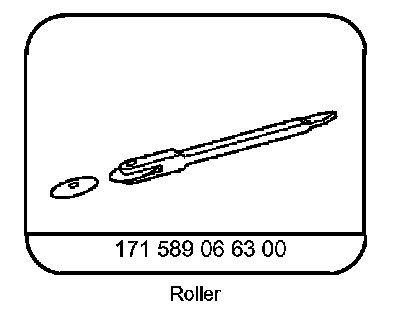

Special Tools:

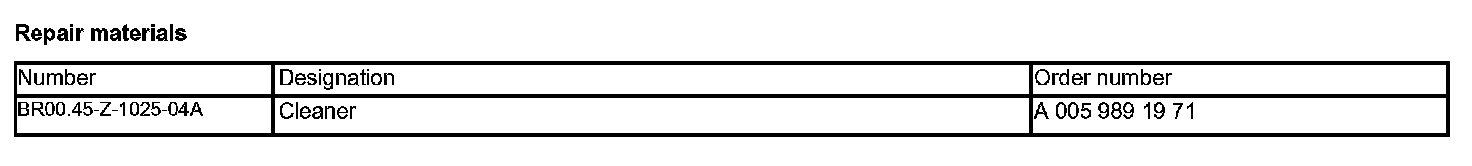

Repair Materials:
