AR72.10-P-1550SX Remove/Install Seal (Top) on Front Door Window Frame



AR72.10-P-1550SX Remove/Install Seal (Top) On Front Door Window Frame
- except CODE (Z07) Top protection

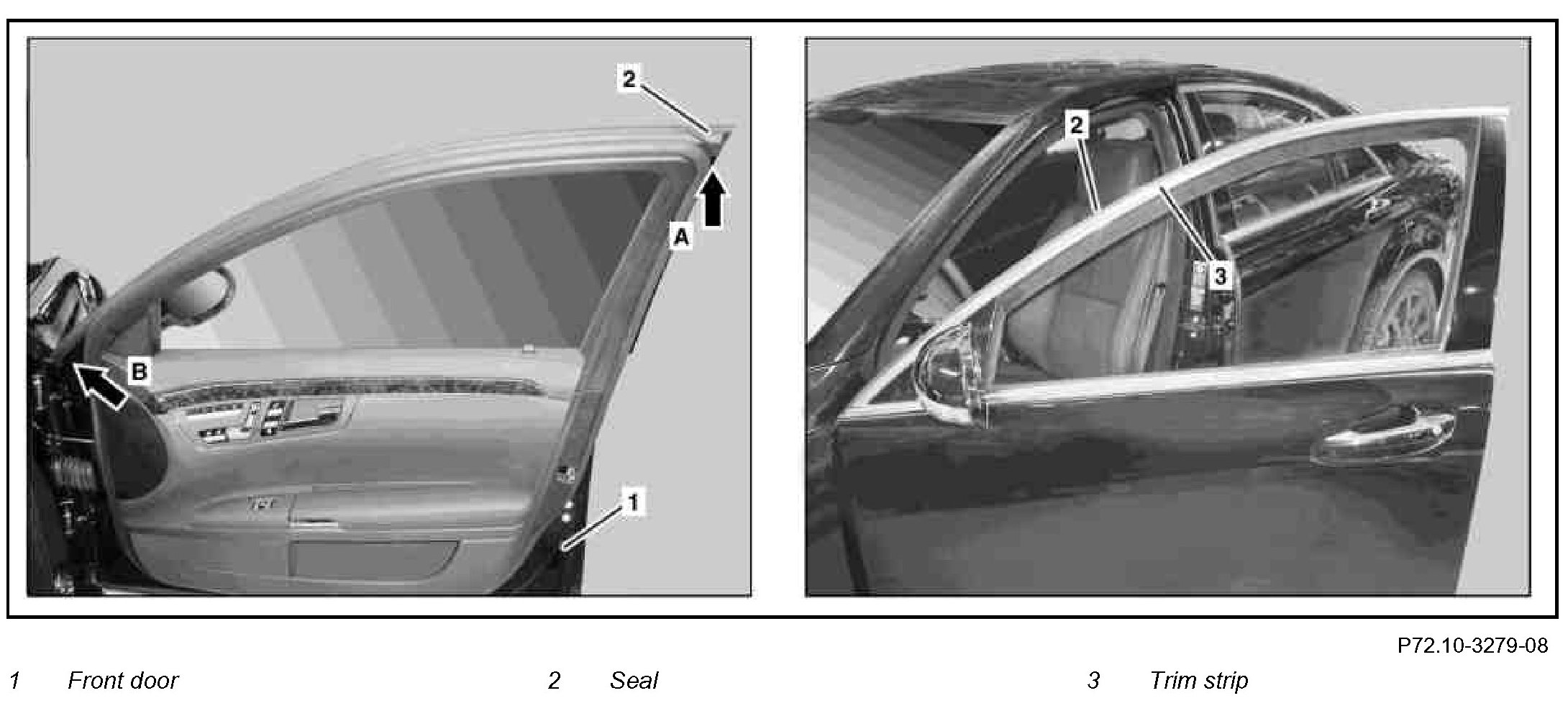

Component Identification:

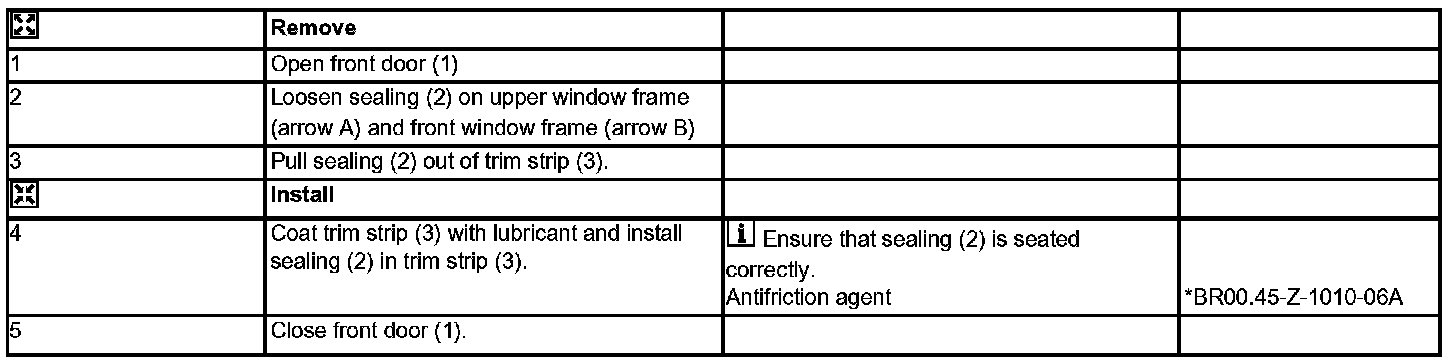

Steps 1 - 5:

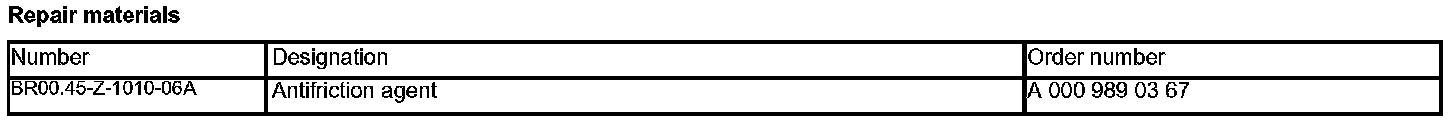

Repair Materials:
