AR88.30-P-1000SX Remove/Install Spare Tire Well

AR88.30-P-1000SX Remove/Install Spare Tire Well
MODEL 204.3, 221, 216

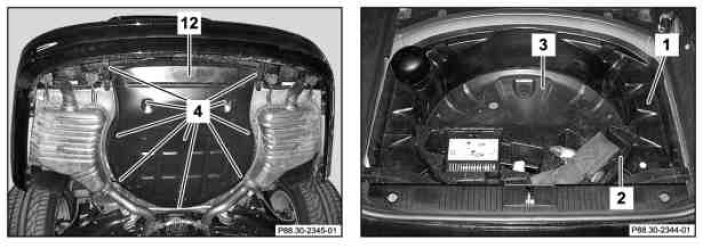

Shown on model 221

1 Spare wheel well
2 Tool box
3 Insulation mat
4 Bolts
12 Cover panel

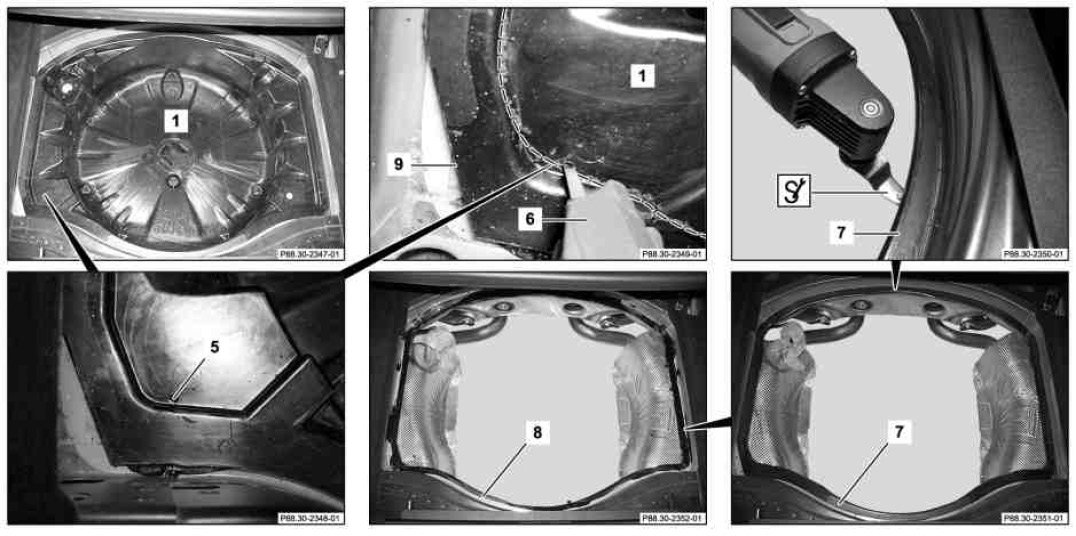

1 Spare wheel well
5 Bore
6 Body saw
7 Remainder of spare tire well
8 Remaining adhesive material
9 Body flange

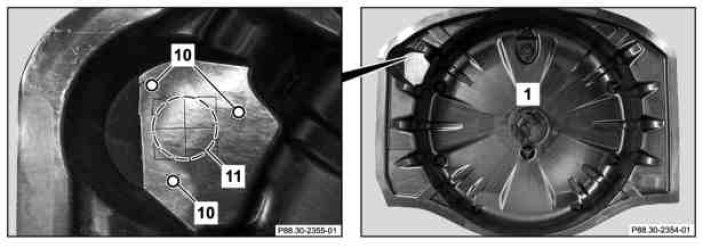

Shown on model 221 with code (487) Active Body Control (ABC)

1 Spare wheel well
10 Holes
11 Hole














124 589 21 63 00
Cutting blade
