Trunk / Liftgate Position Sensor: Service and Repair
AR88.50-P-5065SX Remove/install Trunk Lid Opening Angle Detection Sensor
- with CODE (881) Remote trunk closing (RTC [HDFS])

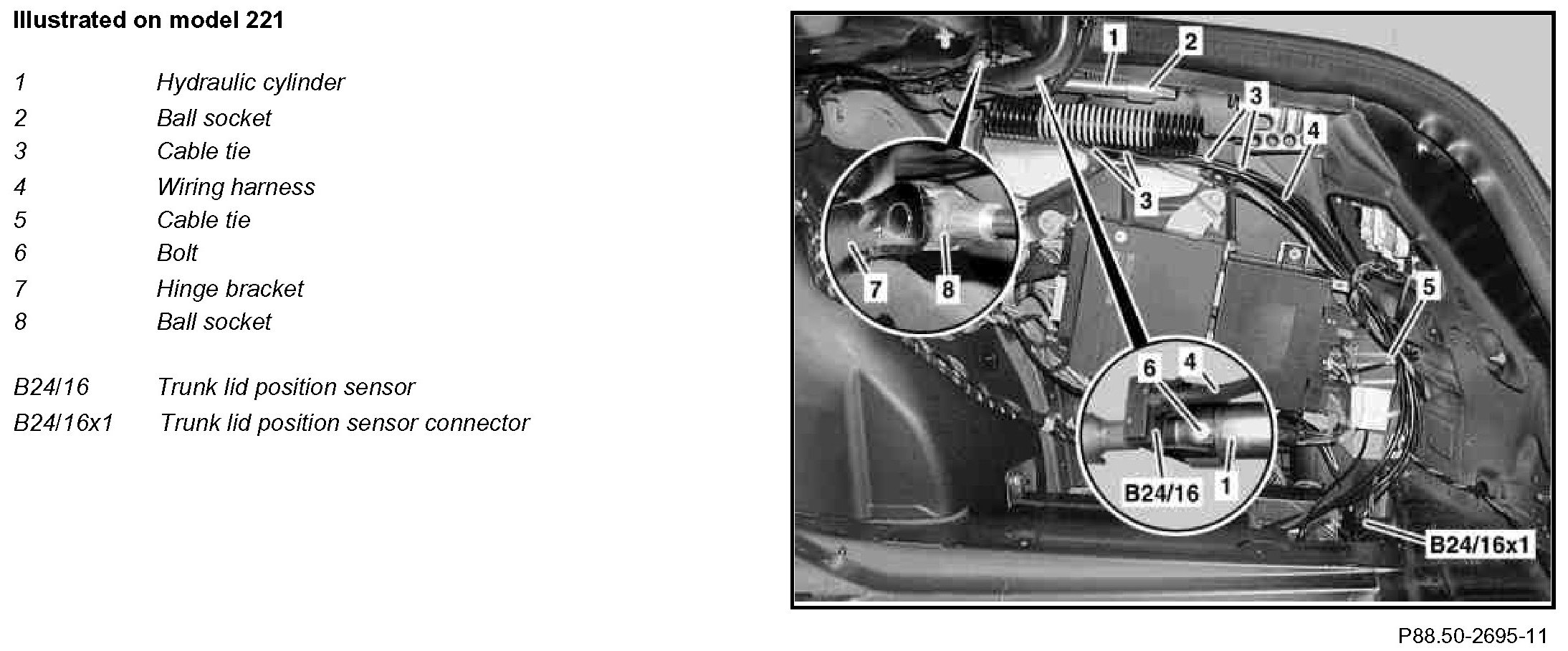

Component Identification:

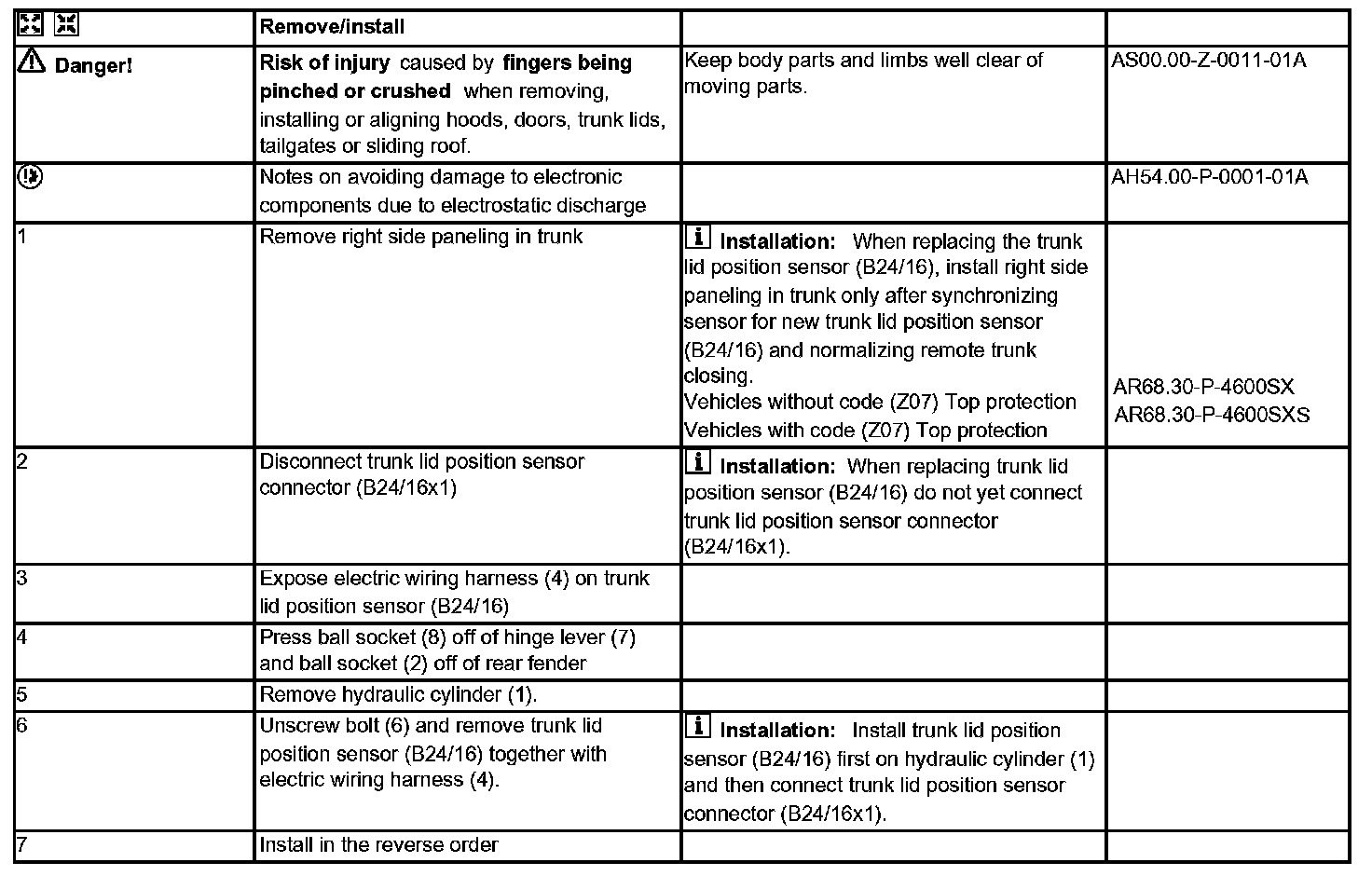

Steps 1-7:

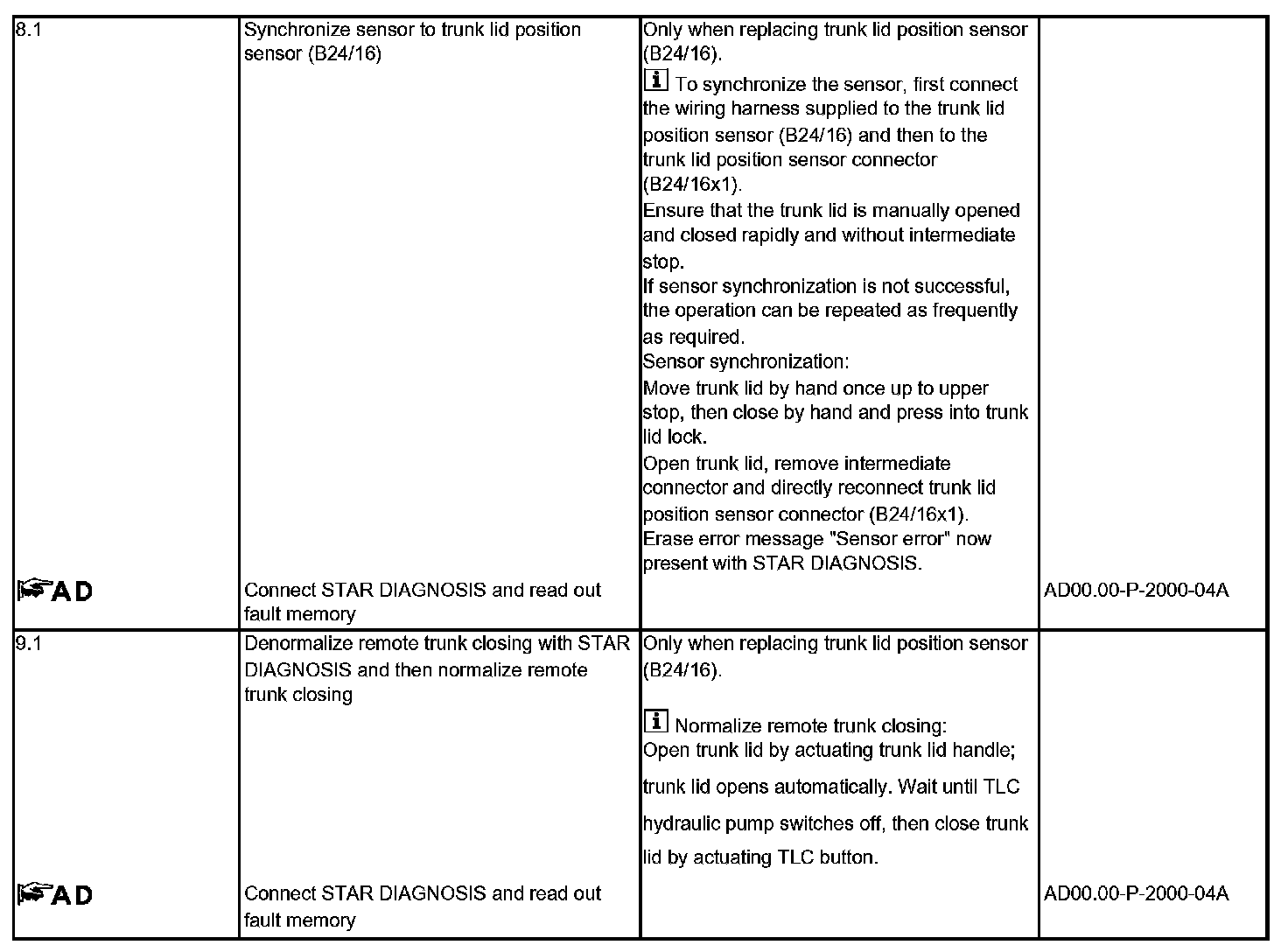

Steps 8.1-9.1:
AR88.50-P-5065SX Remove/install Trunk Lid Opening Angle Detection Sensor
- with CODE (881) Remote trunk closing (RTC [HDFS])
