AR91.12-P-1520SXS Remove/Install Seat Adjustment Mechanism At Rear Seat



AR91.12-P-1520SXS Remove/Install Seat Adjustment Mechanism At Rear Seat
- with CODE (Z07) Top protection

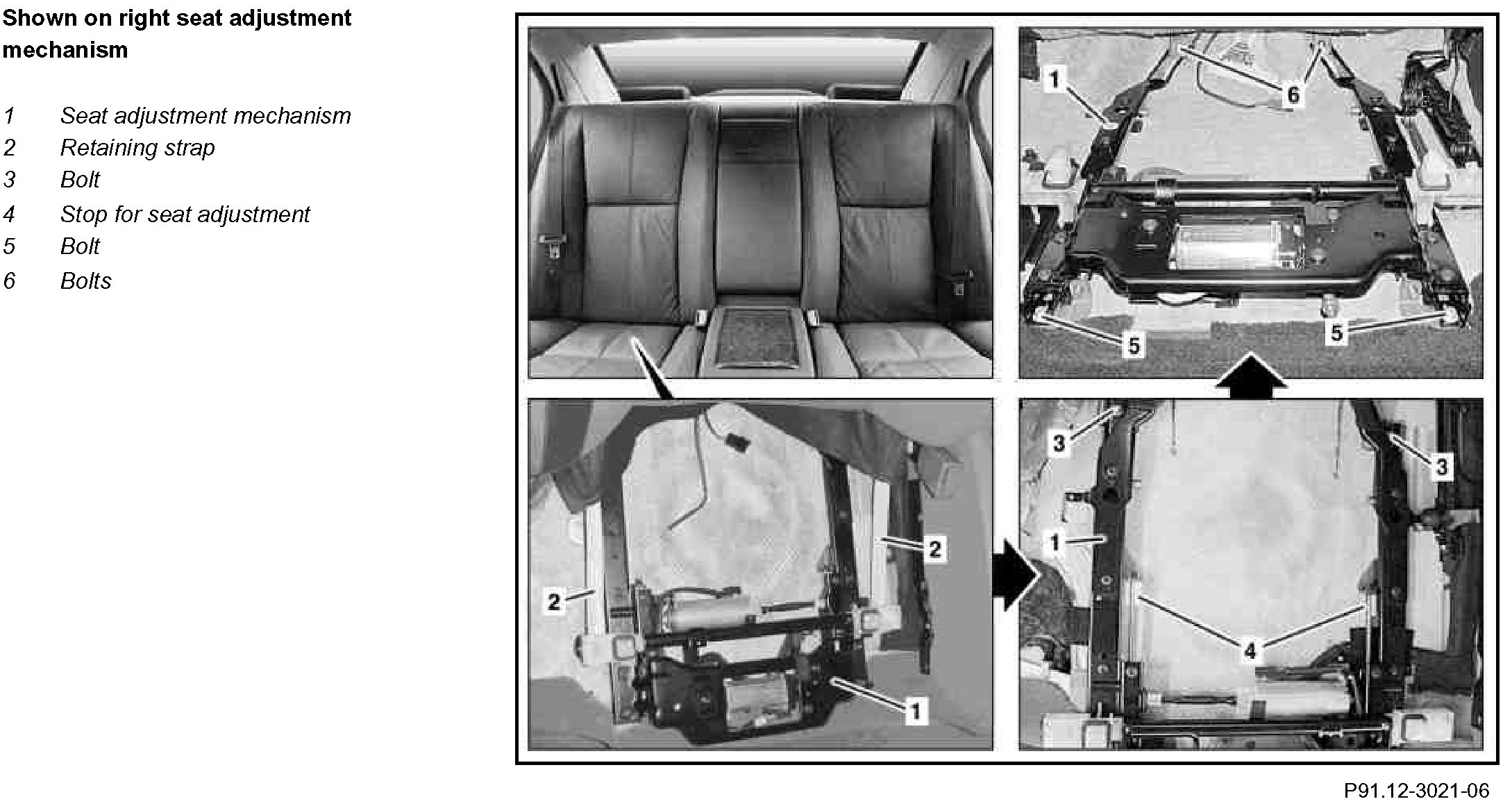

Component Identification:

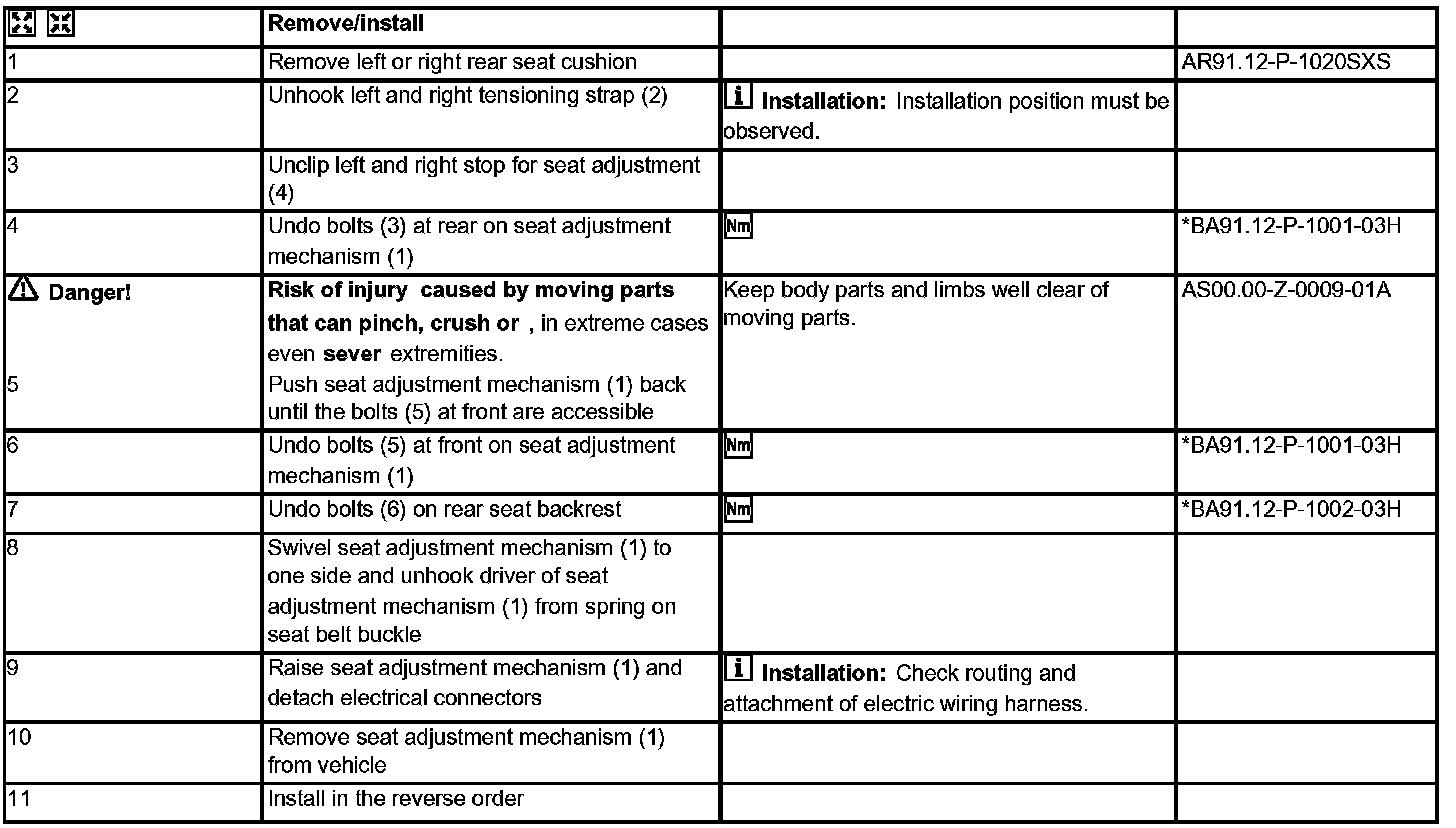

Steps 1 - 11:

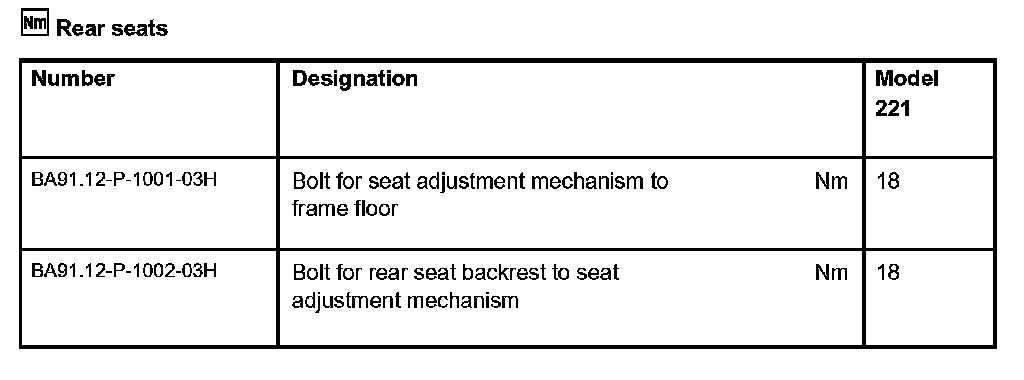

Rear Seats:
