AR91.12-P-1520SX Remove/Install Seat Adjuster At Rear Seat

AR91.12-P-1520SX Remove/Install Seat Adjuster At Rear Seat
- except CODE (Z07) Top protection
- with CODE (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning funtion for outer seats and outer head restraints
- with CODE (224) Rear individual seat design

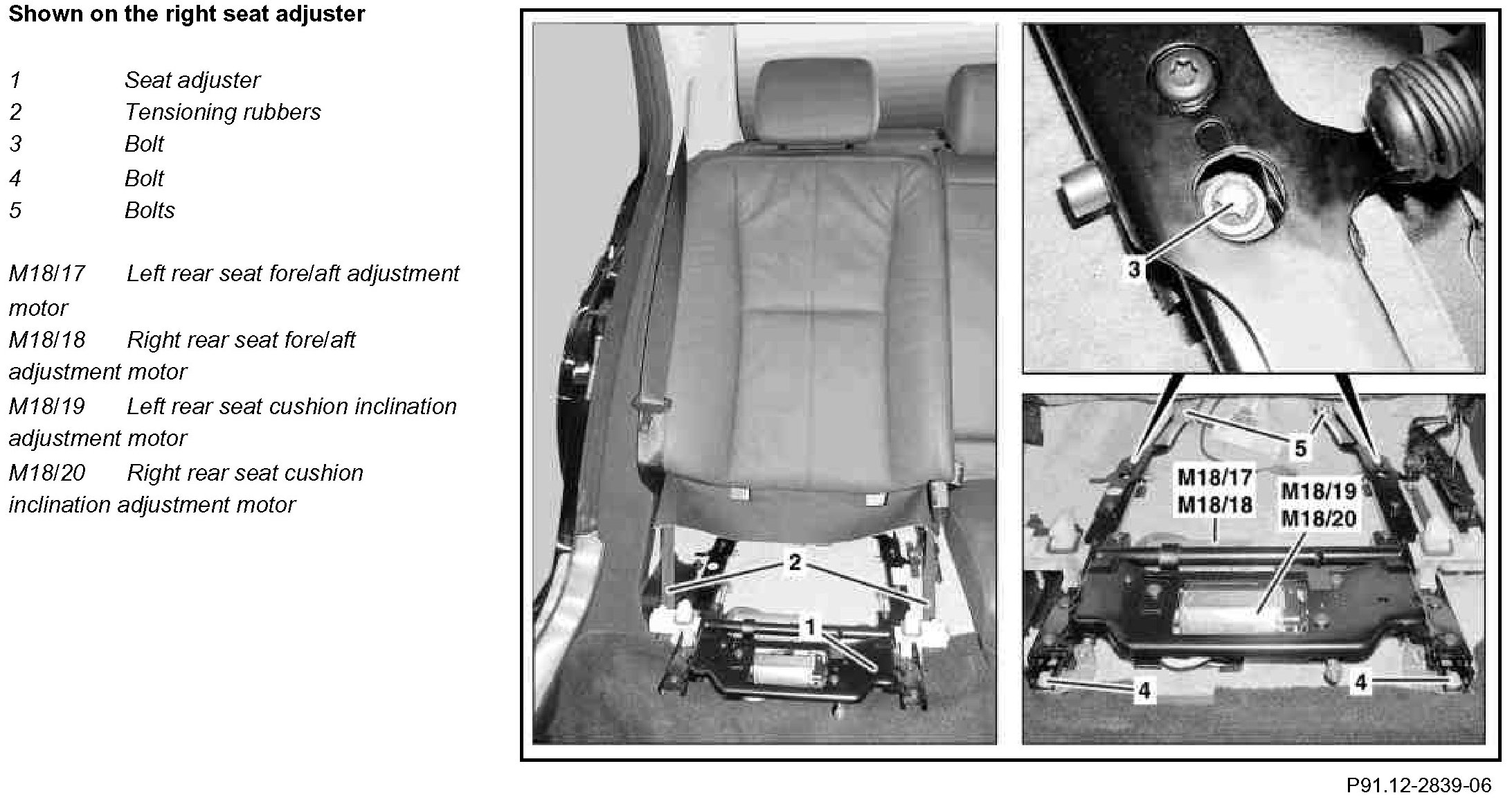

Component Identification:

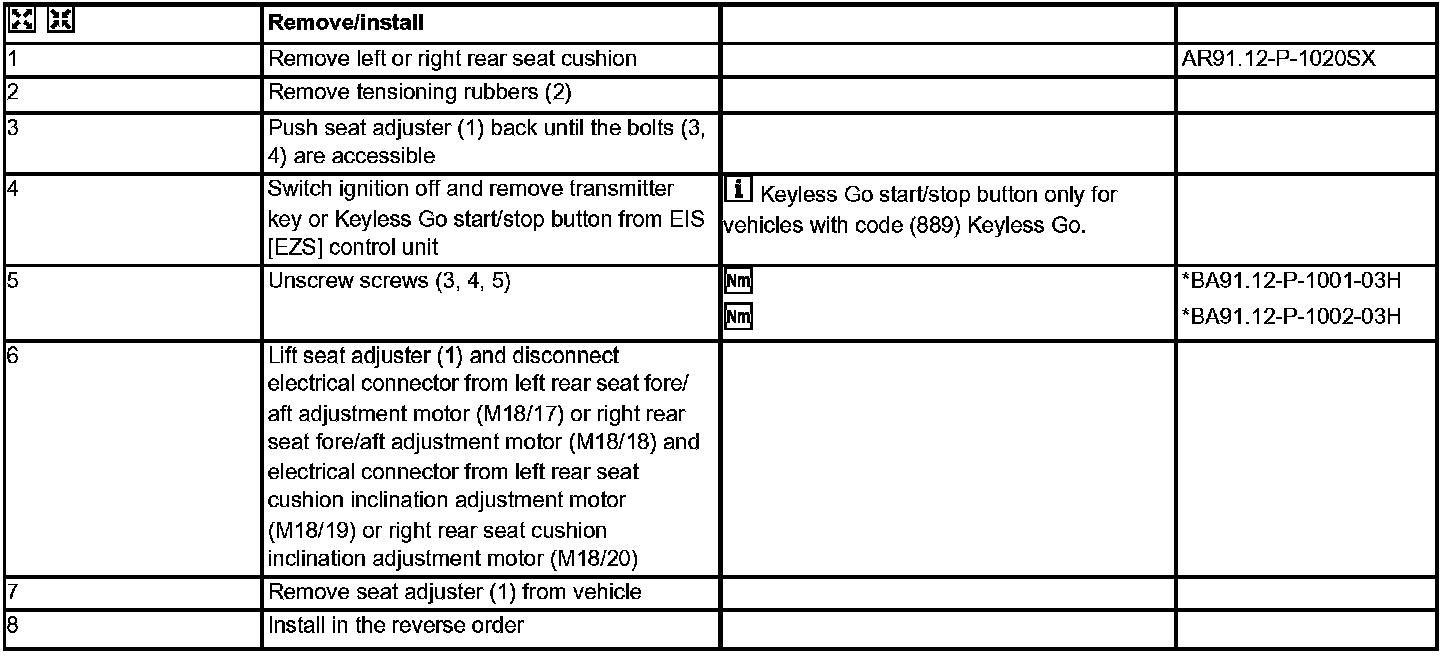

Steps 1 - 8:

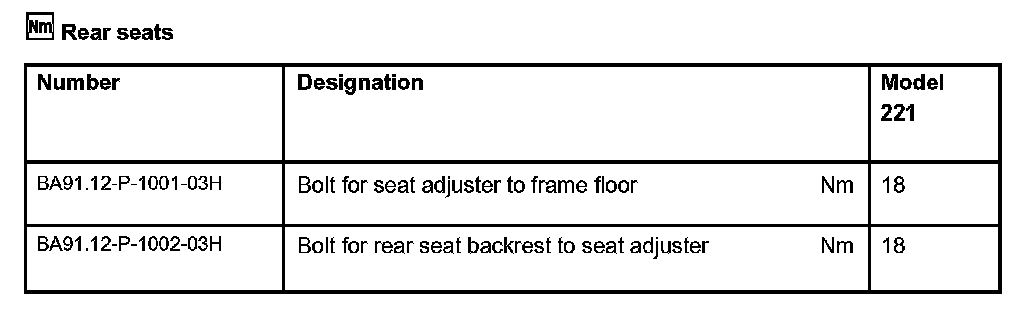

Rear Seats:
