AR91.12-P-1020SXS Remove/Install Rear Seat Cushion



AR91.12-P-1020SXS Remove/Install Rear Seat Cushion
- with CODE (Z07) Top protection

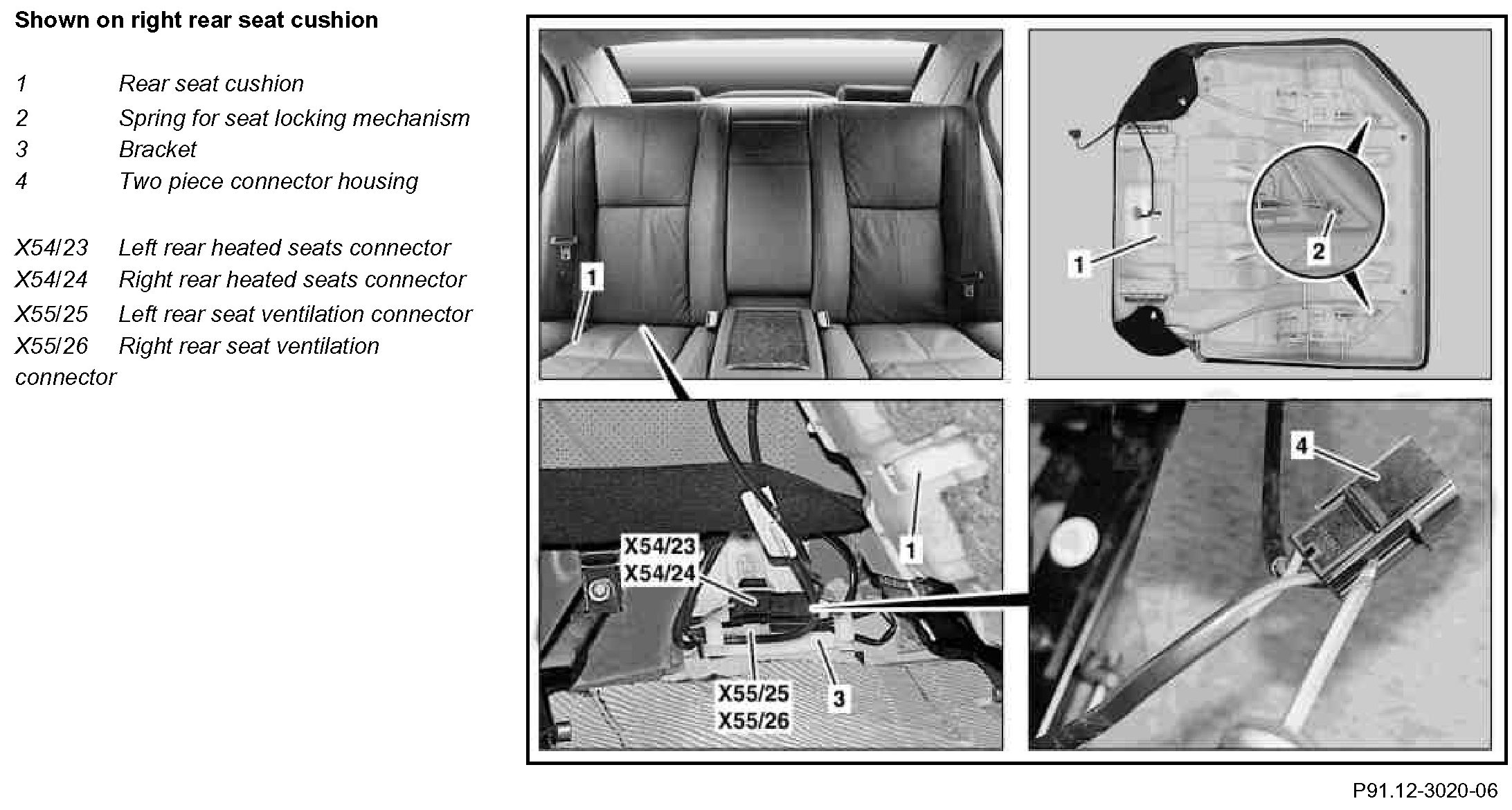

Component Identification:

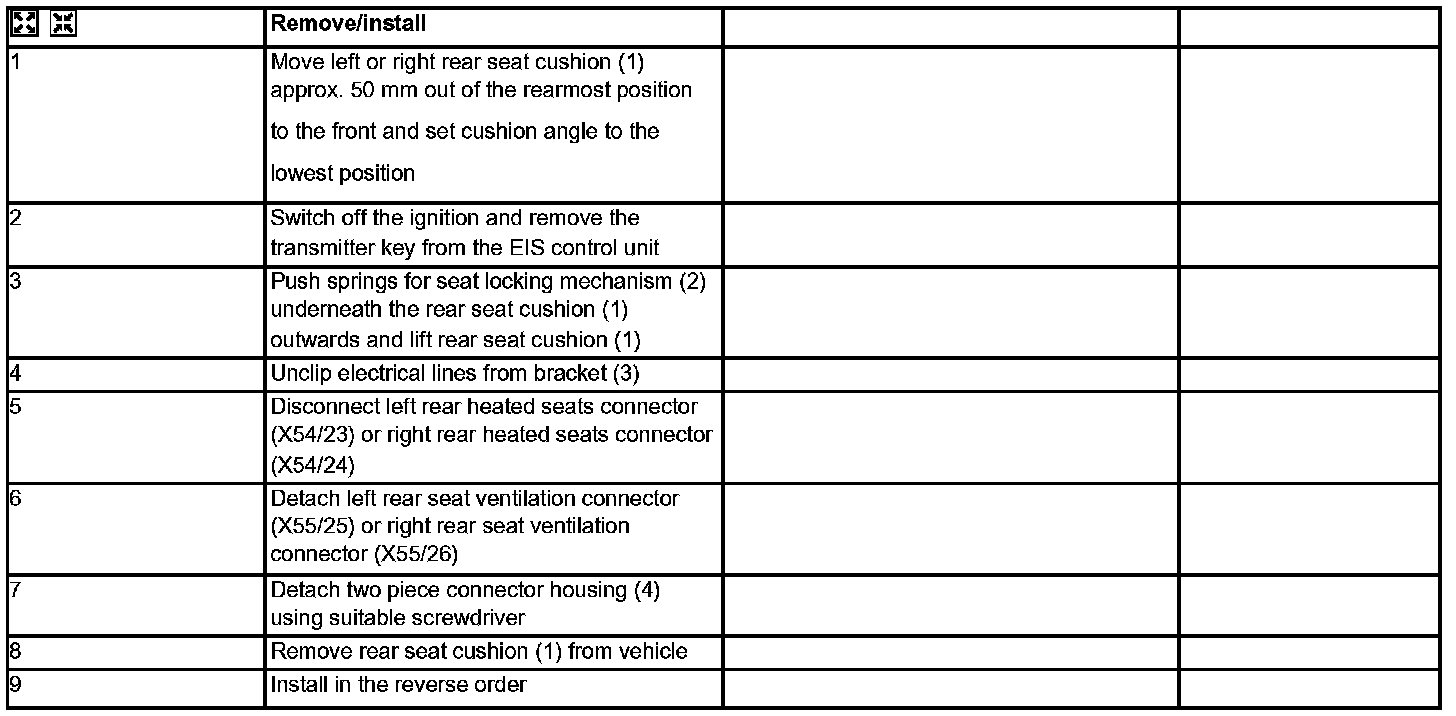

Steps 1 - 9:
