AR91.12-P-1020SX Remove/Install Rear Seat Cushion

AR91.12-P-1020SX Remove/Install Rear Seat Cushion
- except CODE (Z07) Top protection
- with CODE (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning funtion for outer seats and outer head restraints
- Outer rear seat cushions
- with CODE (224) Rear individual seat design

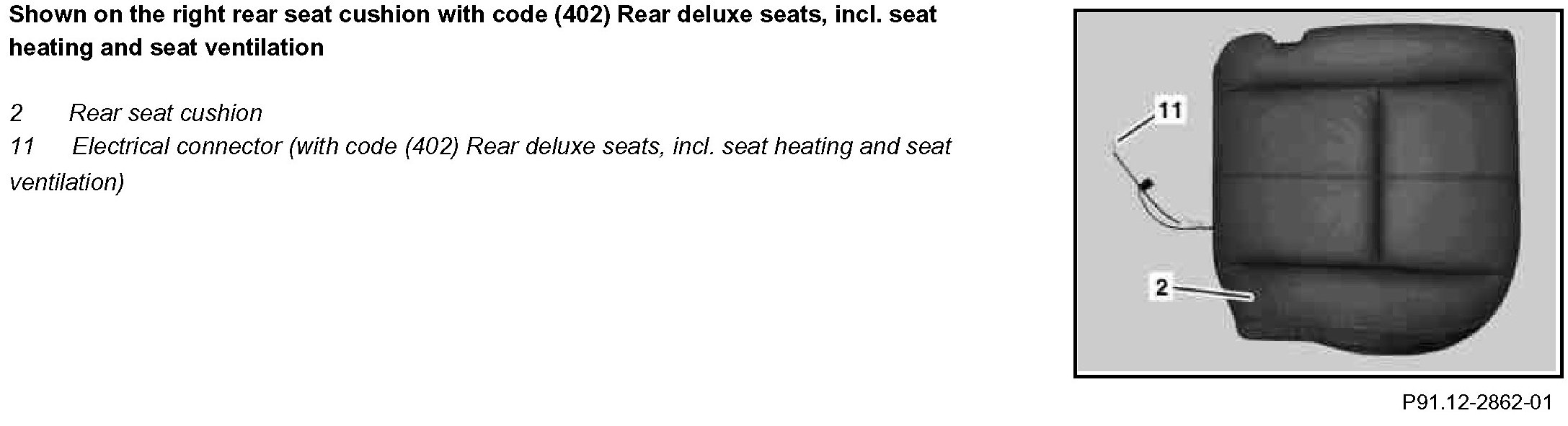

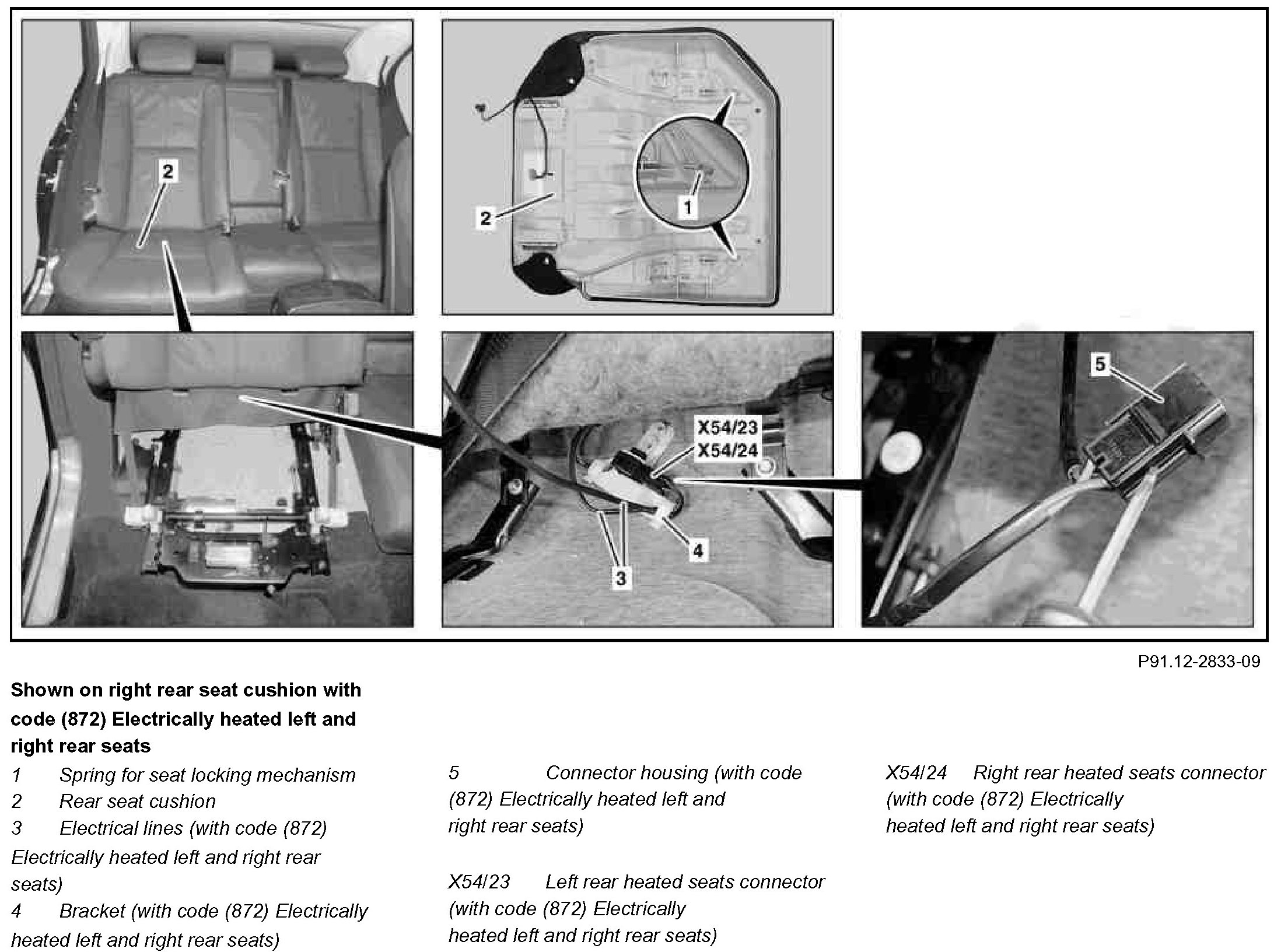

Component Identification:

Component Identification:

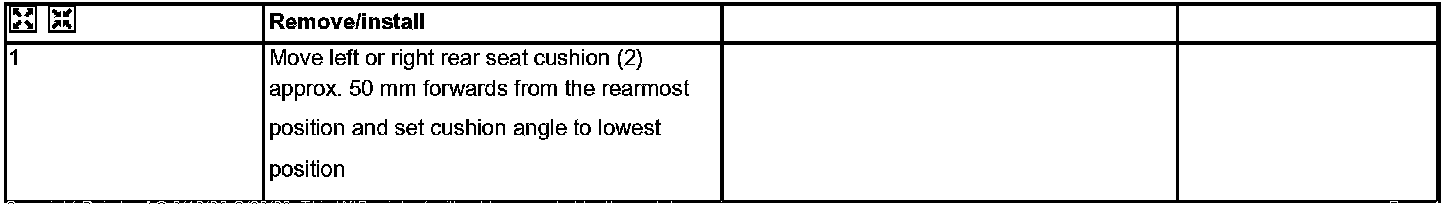

Step 1:

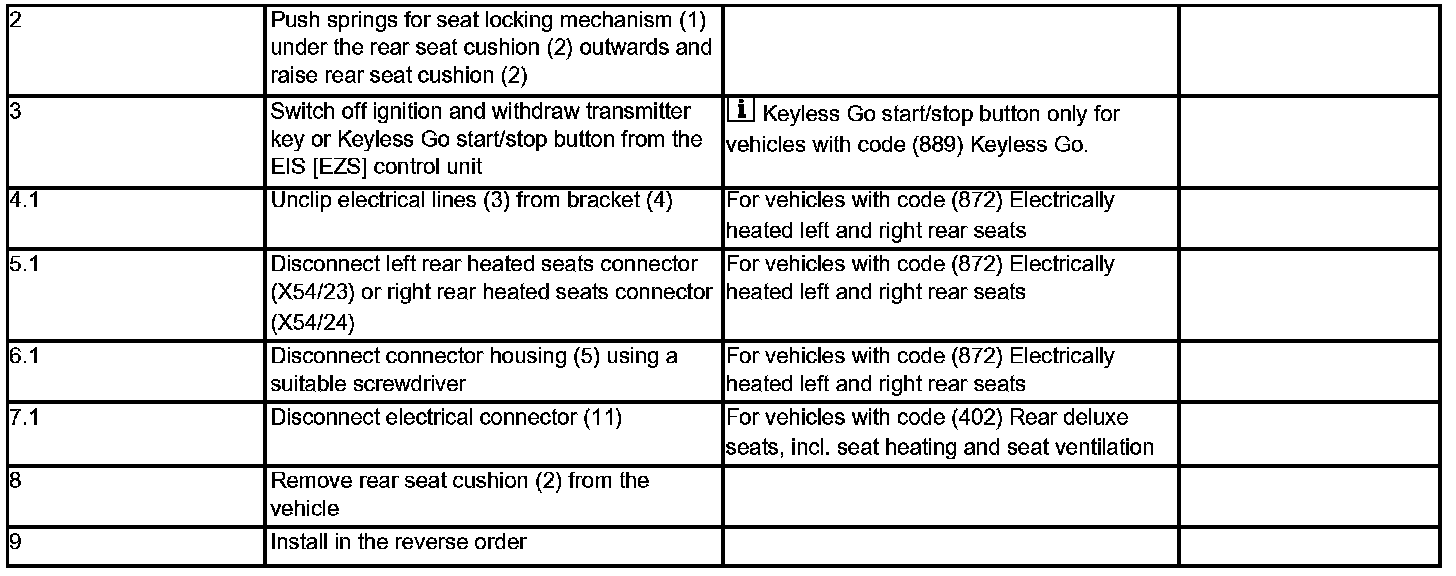

Steps 2 - 9:
