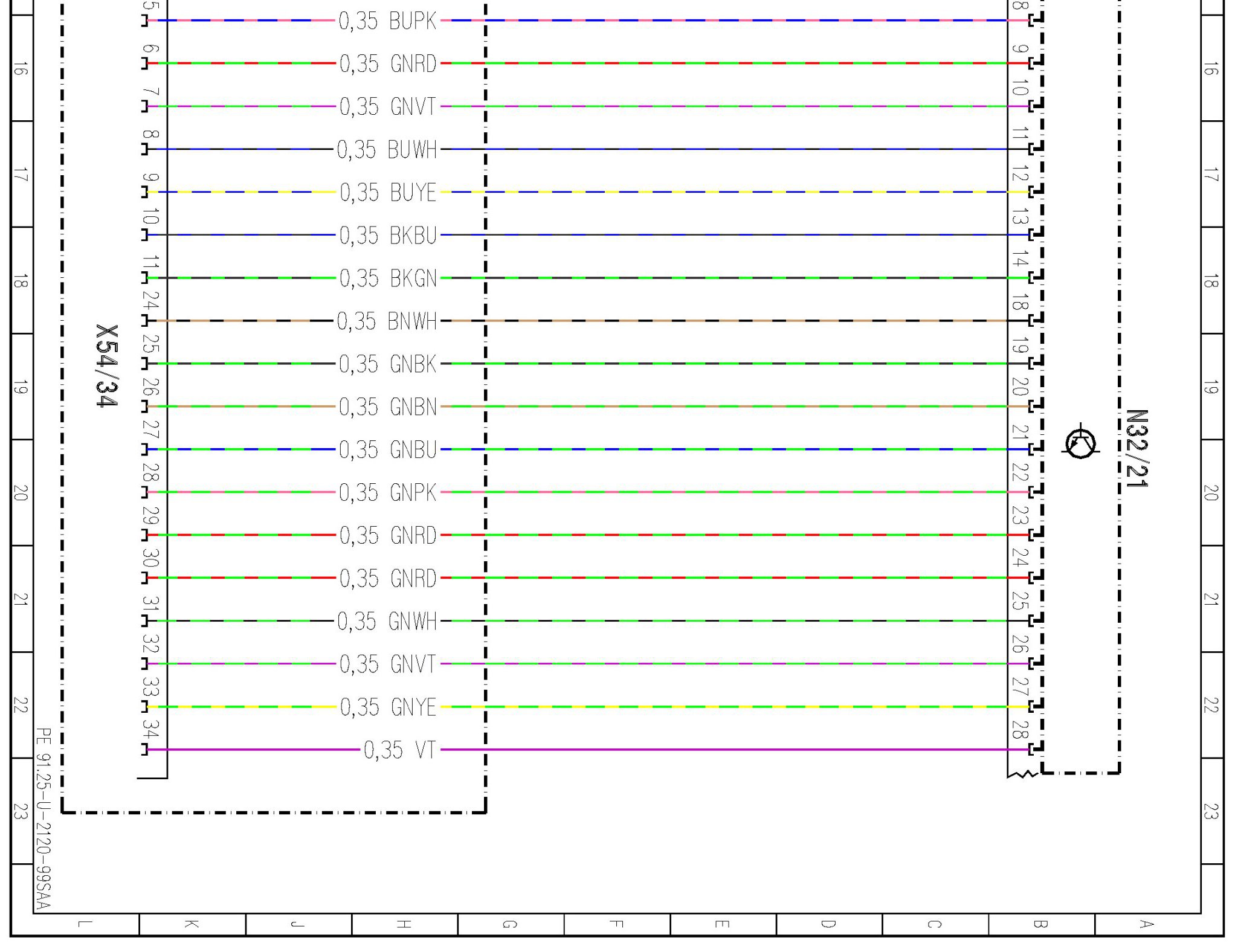

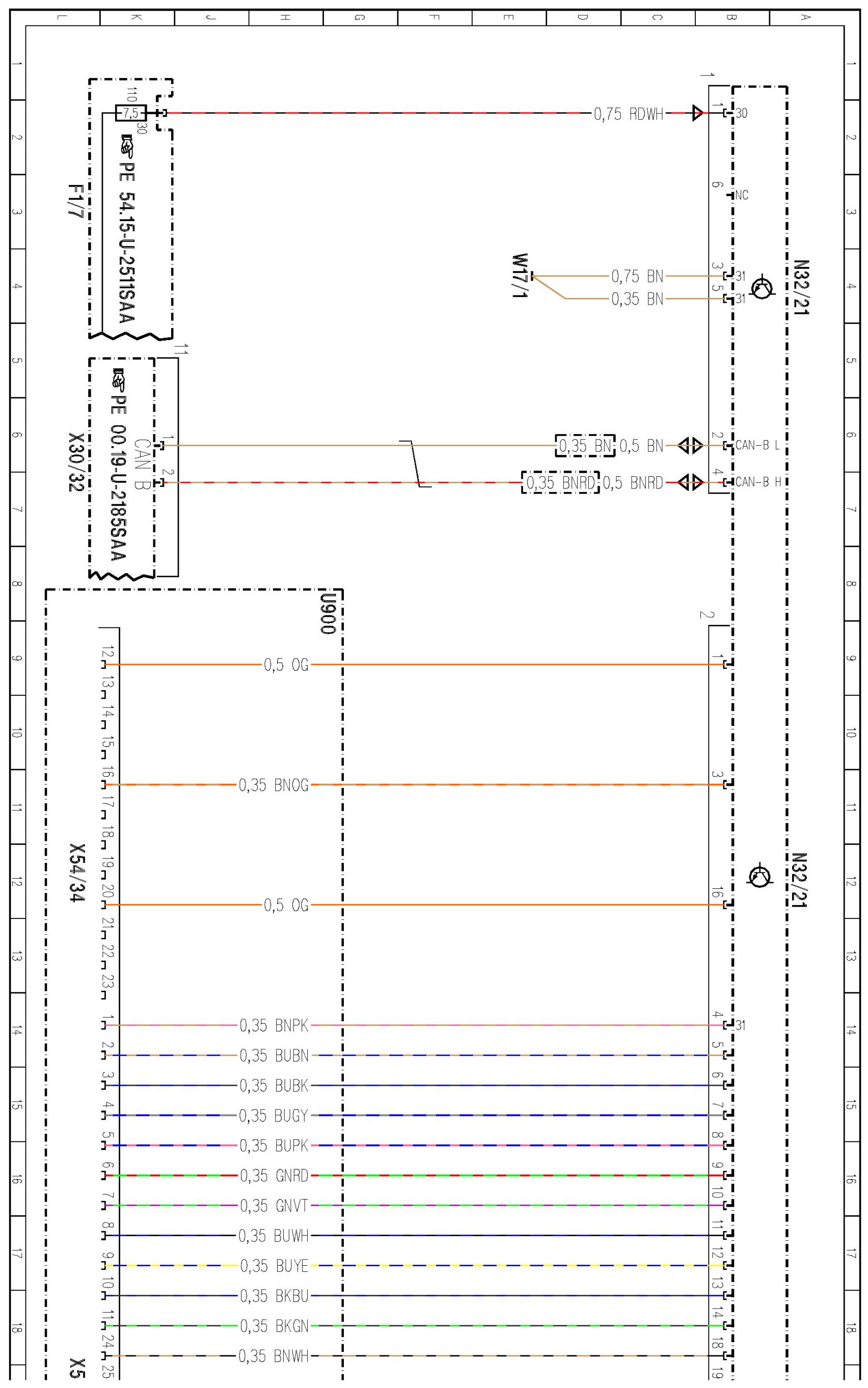

PE91.25-U-2120SAA Right Rear Multicontour Backrest Control Unit



PE91.25-U-2120SAA Right Rear Multicontour Backrest Control Unit

MODEL 221
- with CODE (406) Rear multicontour seat

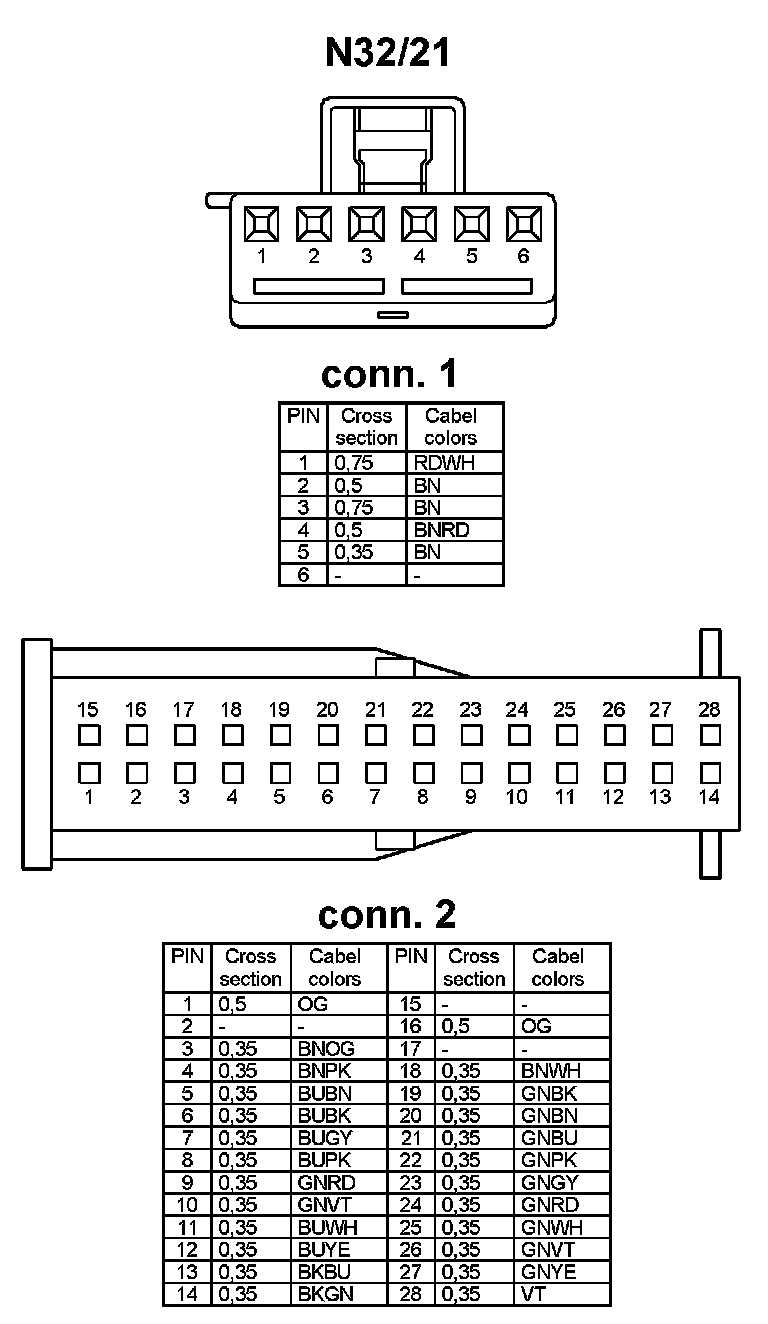

- Control unit N32/21































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
