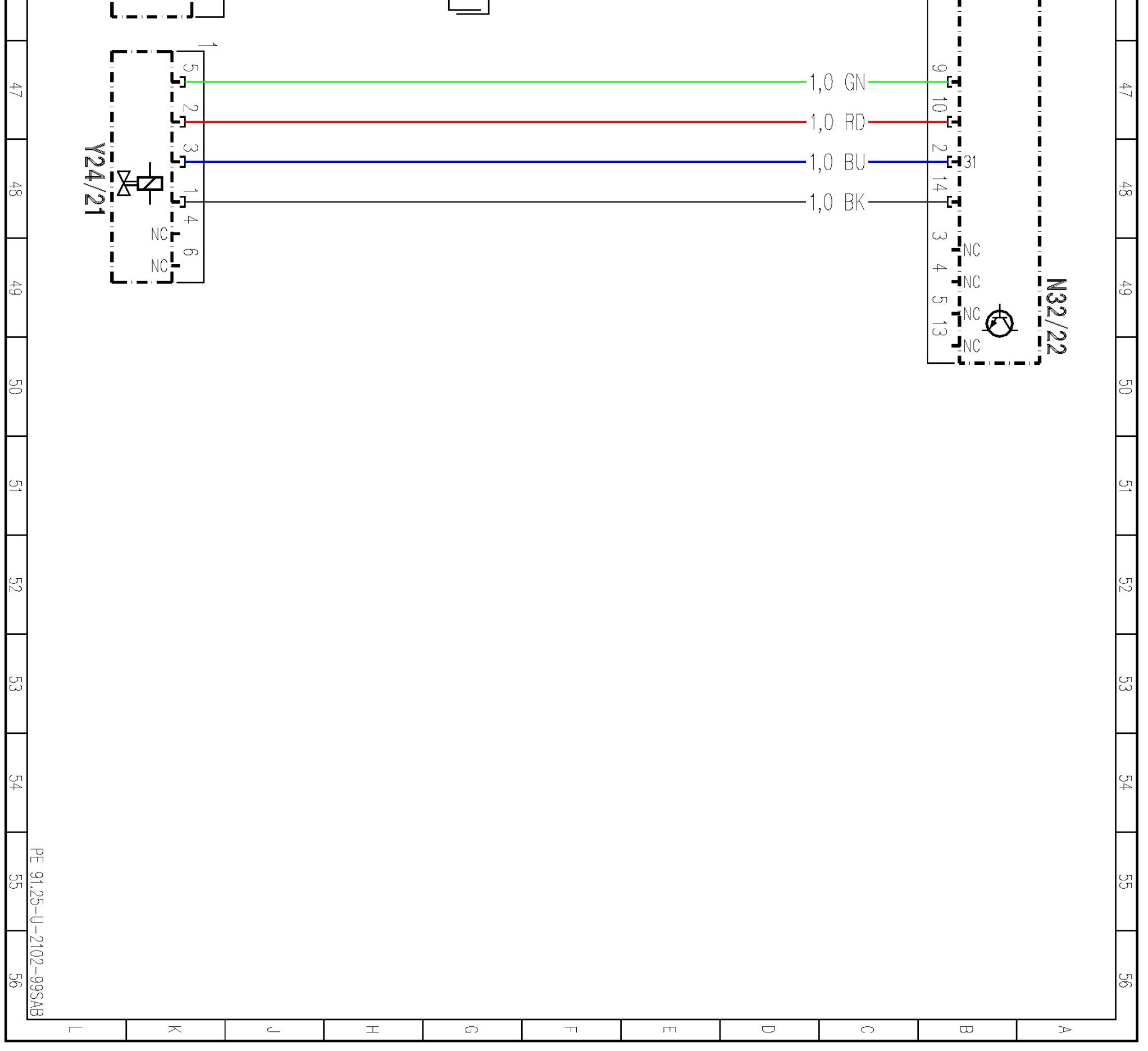

PE91.25-U-2102SAB Right Front Dynamic Seat Control Module

PE91.25-U-2102SAB Right Front Dynamic Seat Control Module

MODEL 221
- with CODE (432) Left and right dynamic multicontour seat
- as of Model Year 2010
- control unit N32/22

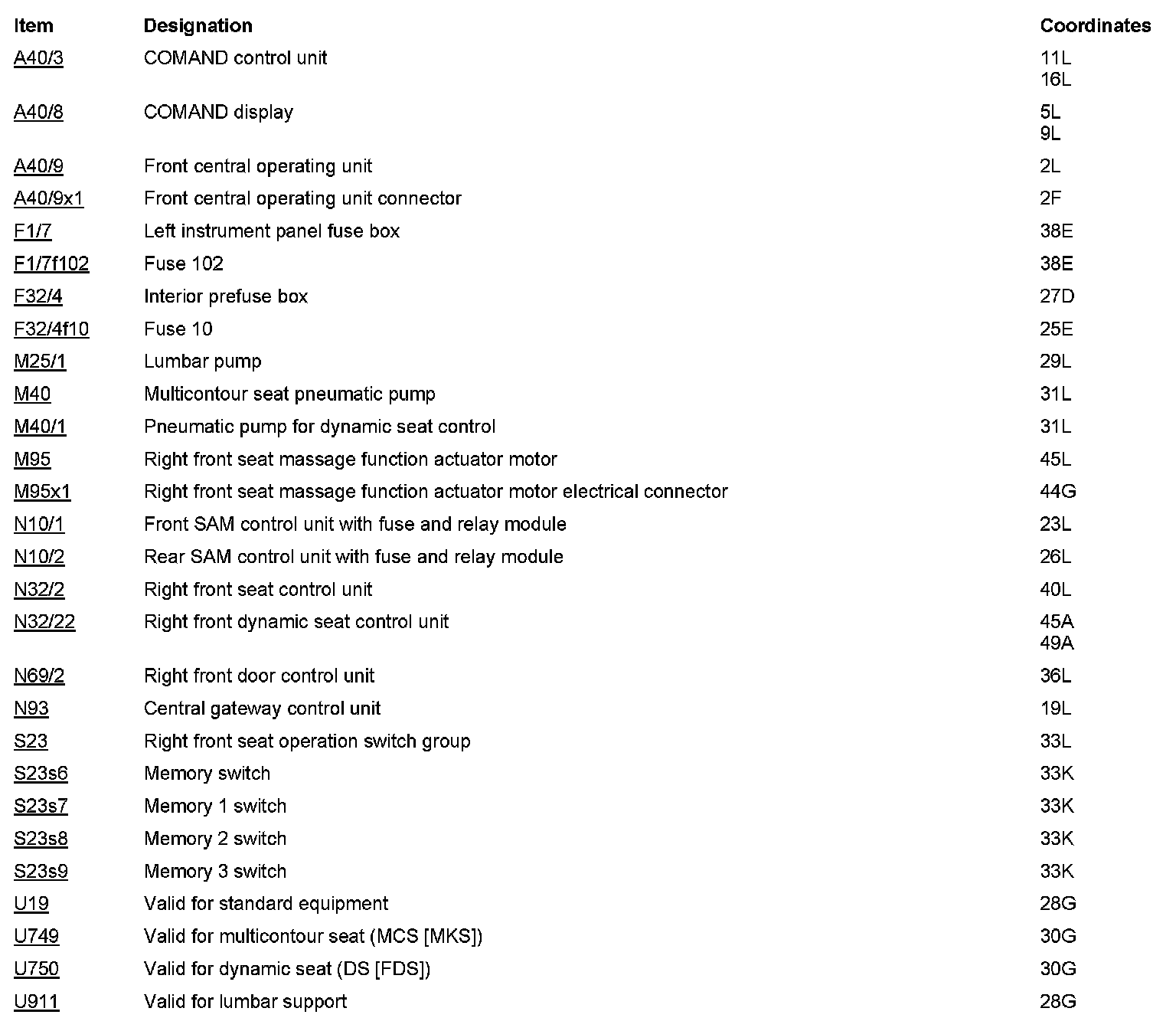

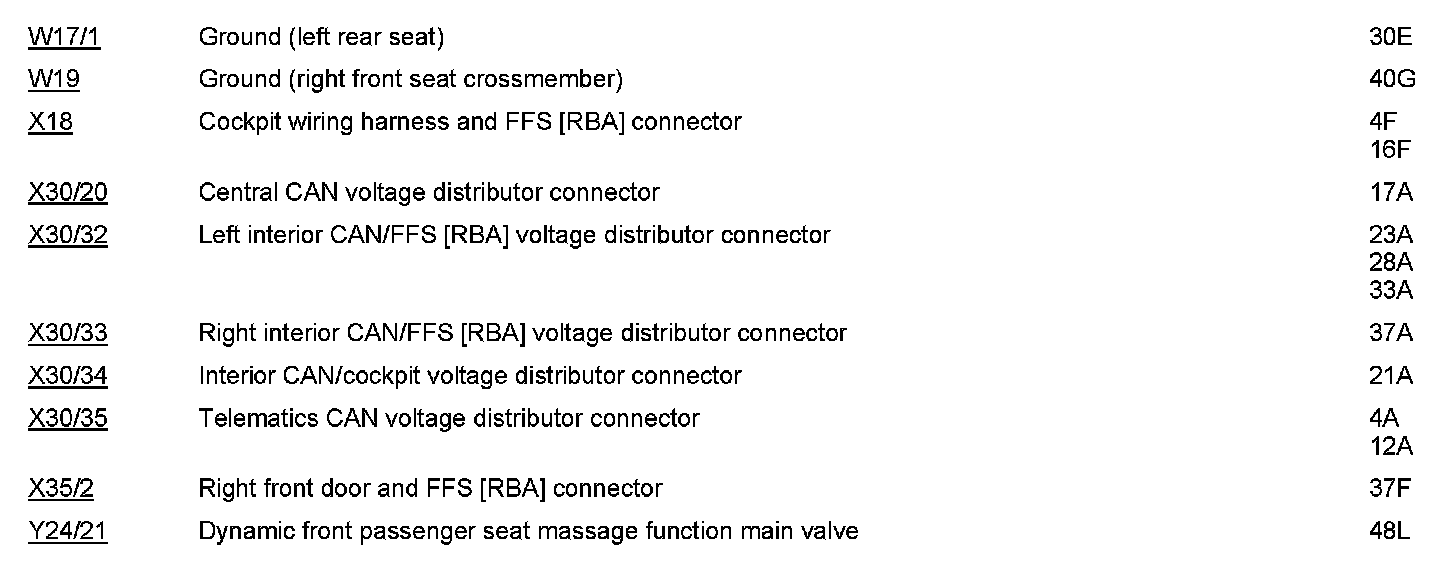

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
