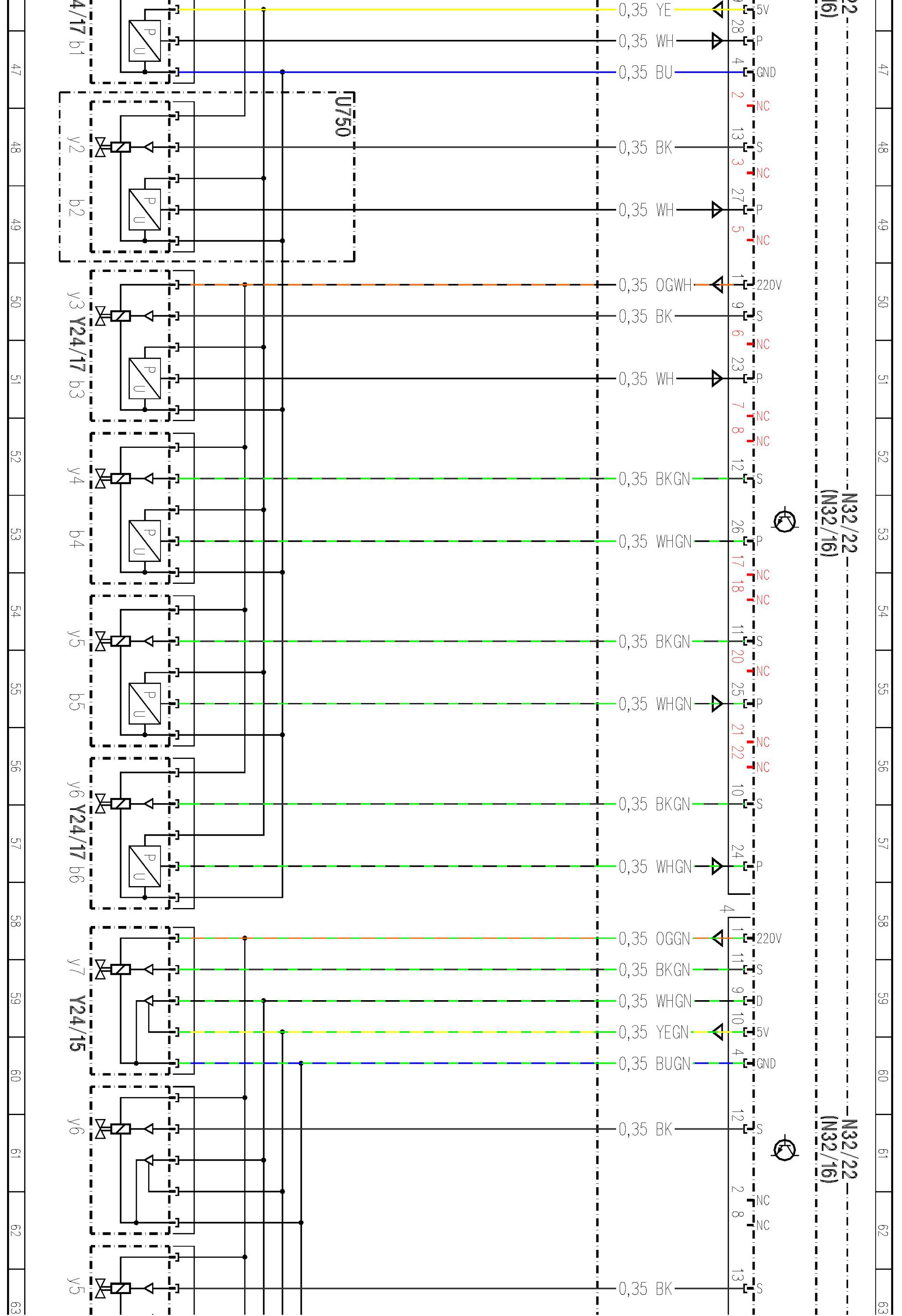

PE91.25-U-2102SAA Right Front Dynamic Seat Control Module

PE91.25-U-2102SAA Right Front Dynamic Seat Control Module

MODEL 221.0 /1
- with CODE (409) Left/right front multicontour seat
- up to Model Year 2010

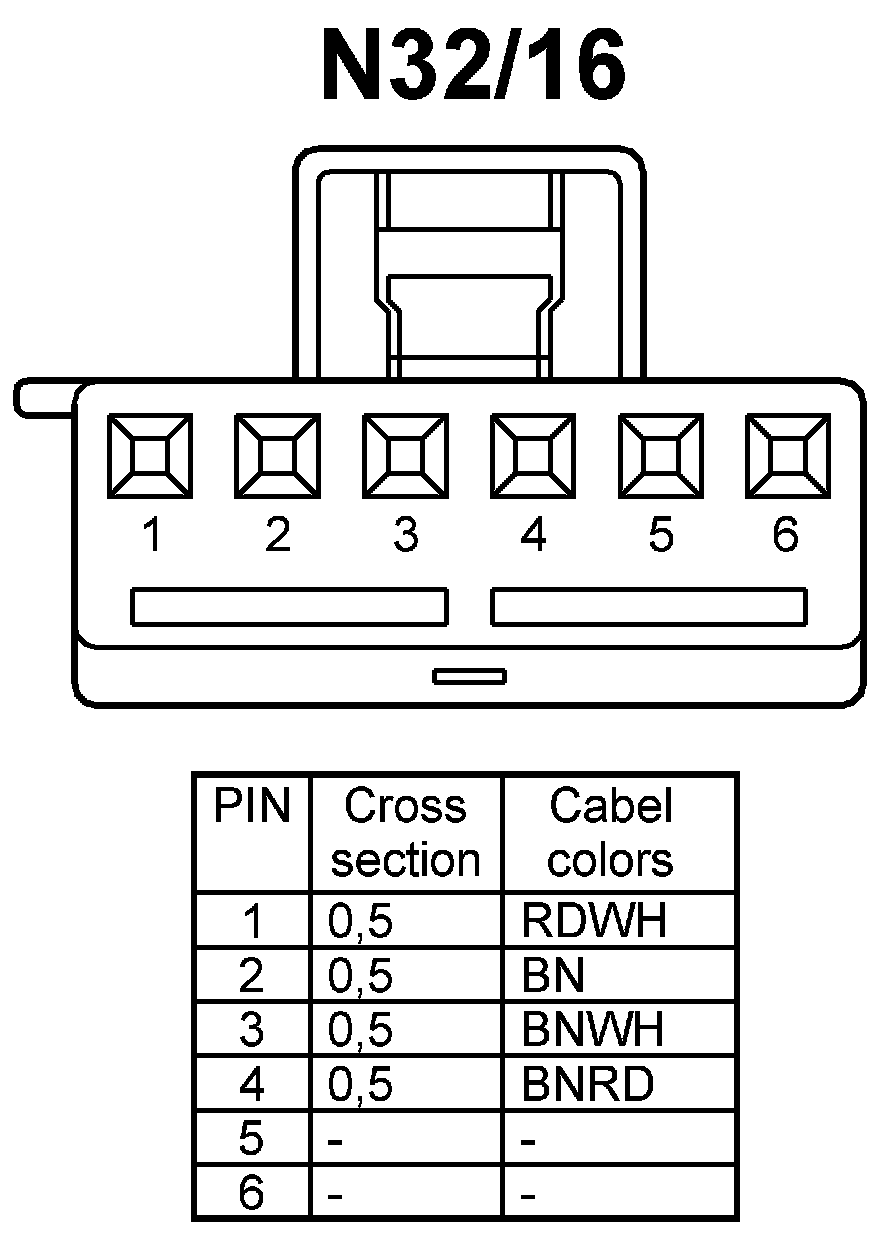

- Control unit N32/16

MODEL 221.0 /1
- with CODE (432) Left and right dynamic multicontour seat

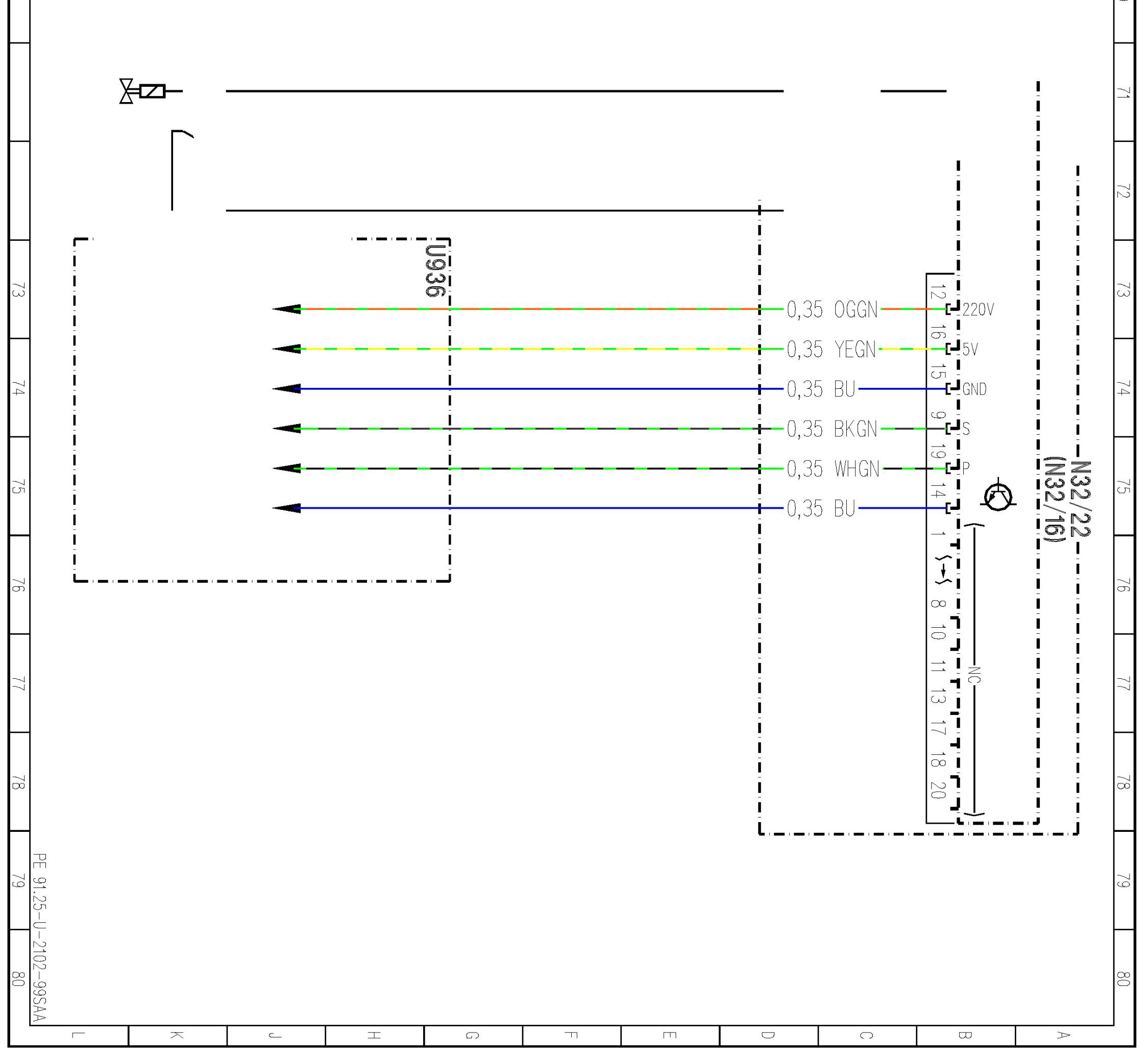

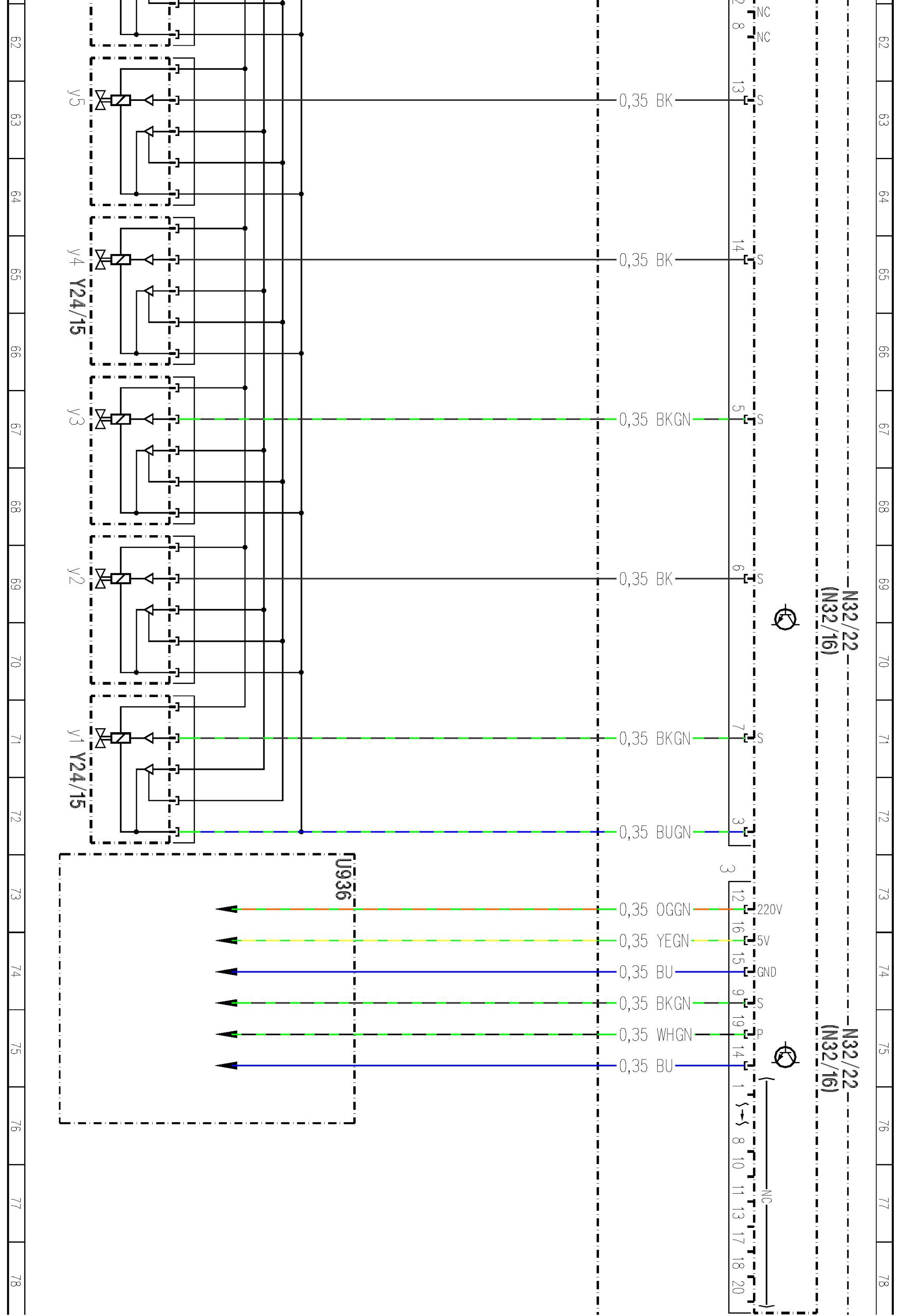

- Control unit N32/22

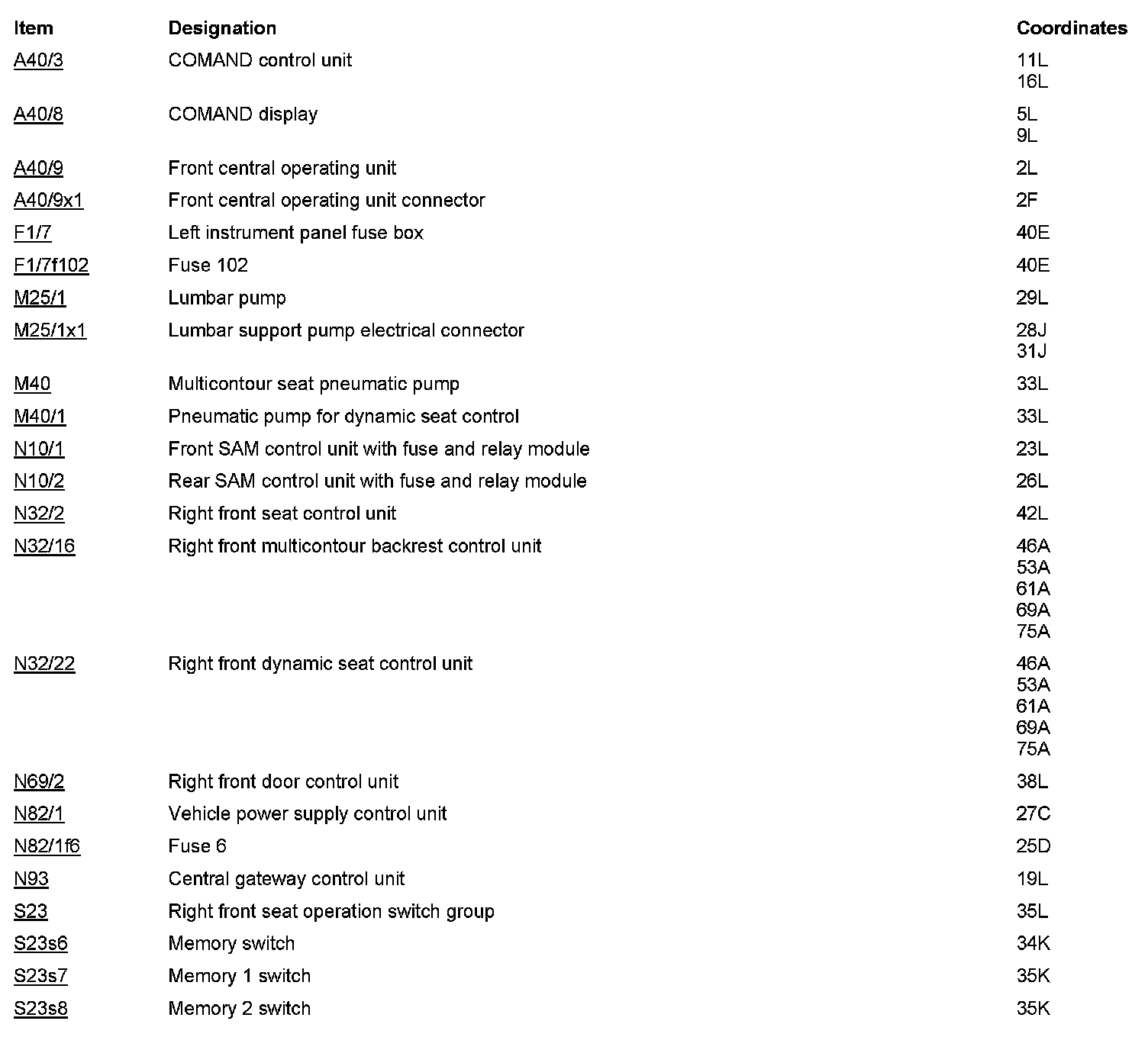

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
