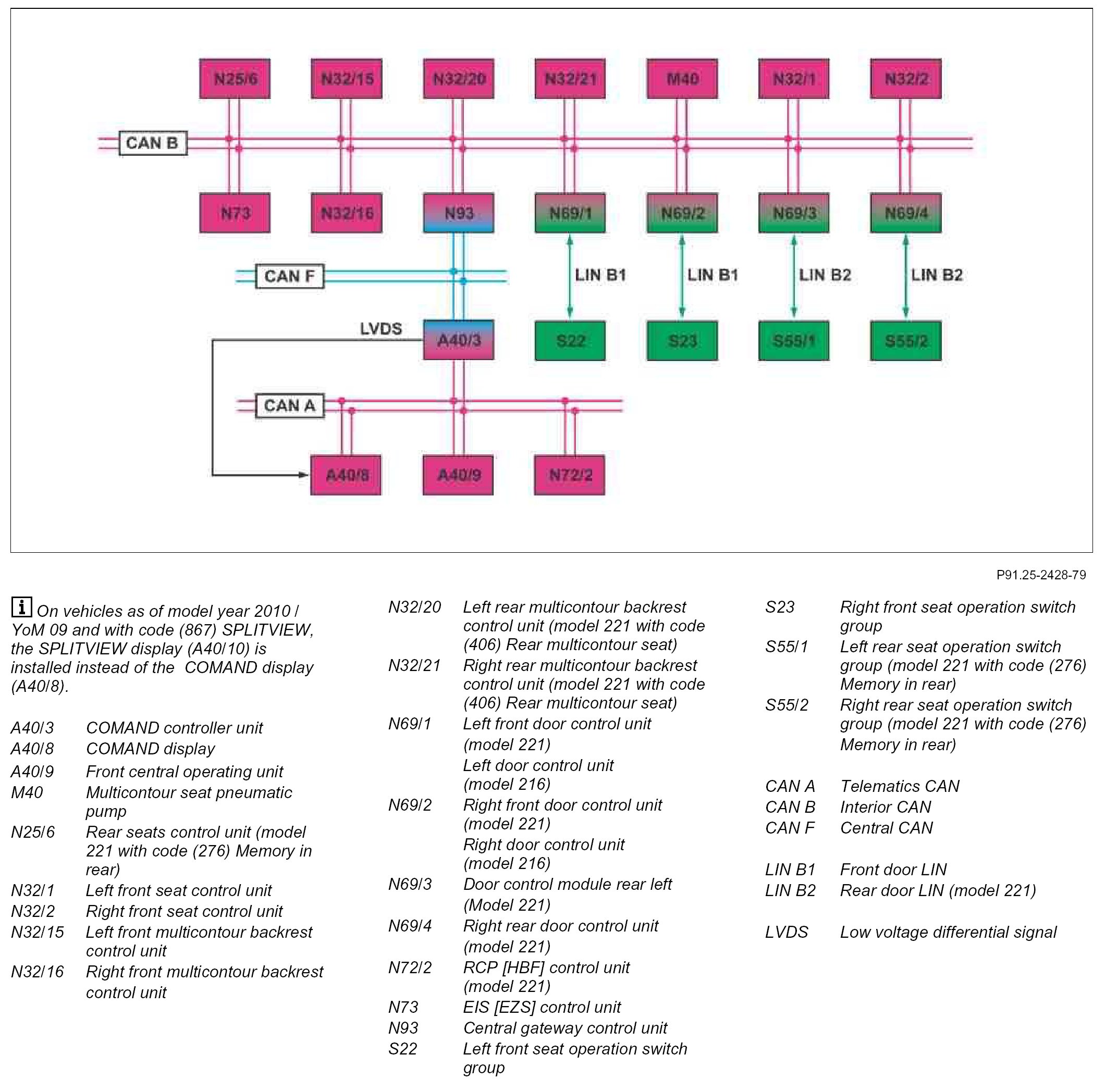

GF91.25-P-0001-06LE Multicontour Seat (MKS) Block Diagram
GF91.25-P-0001-06LE Multicontour Seat (MKS) Block Diagram
- with CODE (409) Left/right front multicontour seat as of Model Year 2009 /YoM 08 [model 216.3]
- with CODE (409) Left/right front multicontour seat as of Model Year 2009 up to 2010 /YoM 08 up to YoM 09 [model 221.1]
- with CODE (406) Rear multicontour seat as of Model Year 2009 /YoM 08 [model 221.1]
Component Identification:
