S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Sunroof / Moonroof Windguard
>>
Service and Repair
>>
AR77.20-P-2500SX Remove/Install Wind Deflector
AR77.20-P-2500SX Remove/Install Wind Deflector
AR77.20-P-2500SX Remove/install Wind Deflector

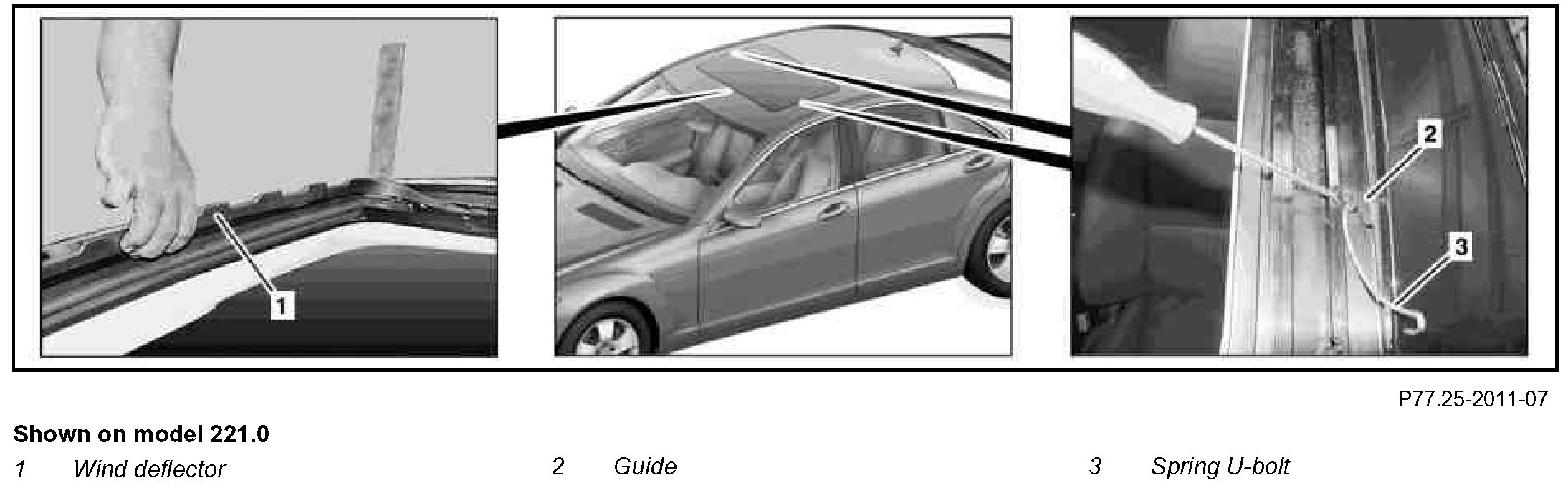

Component Identification:

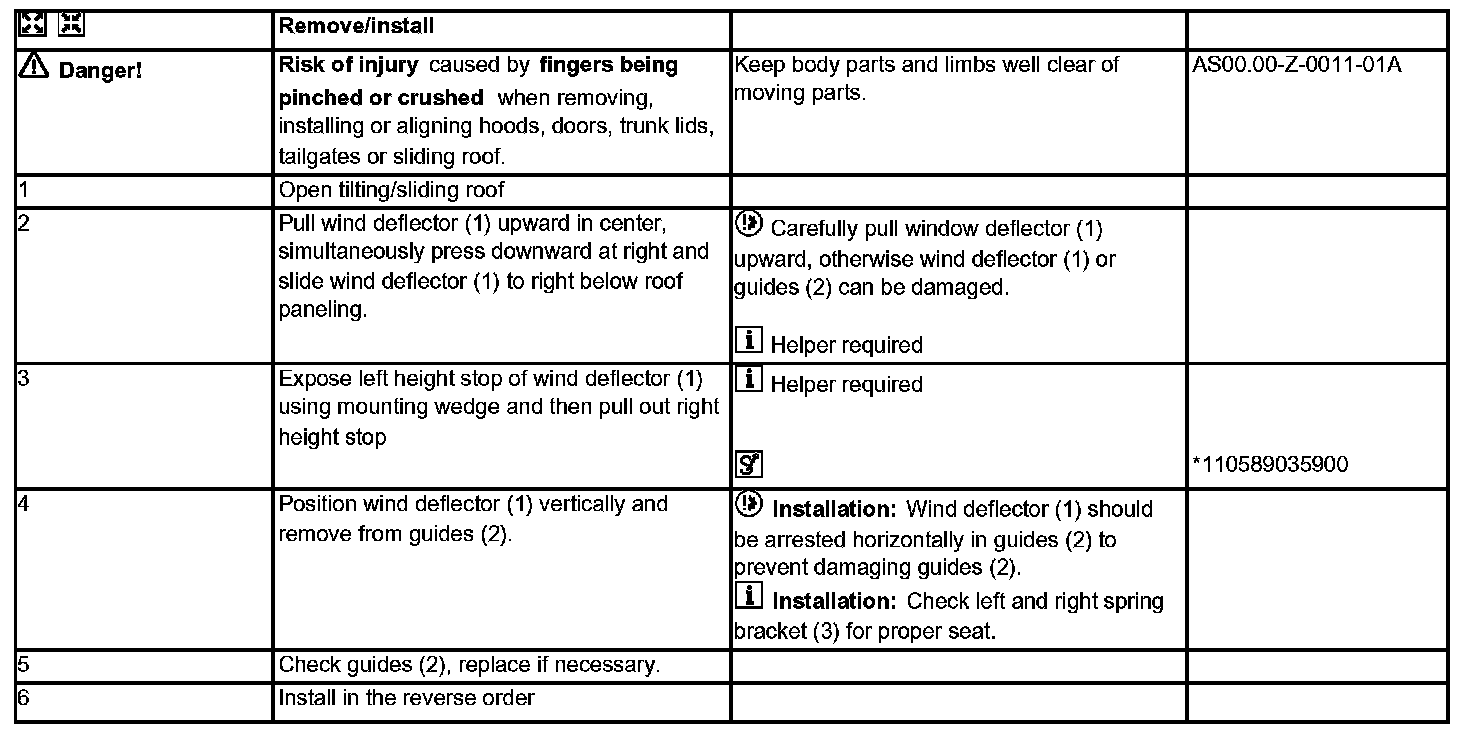

Steps 1-6:
Special Tool:
