AR77.21-P-0520SX Remove/Install Outer Support For Panoramic Front Glass Roof



AR77.21-P-0520SX Remove/Install Outer Support For Panoramic Front Glass Roof
- with CODE (413) Panoramic glass roof with top sliding roof

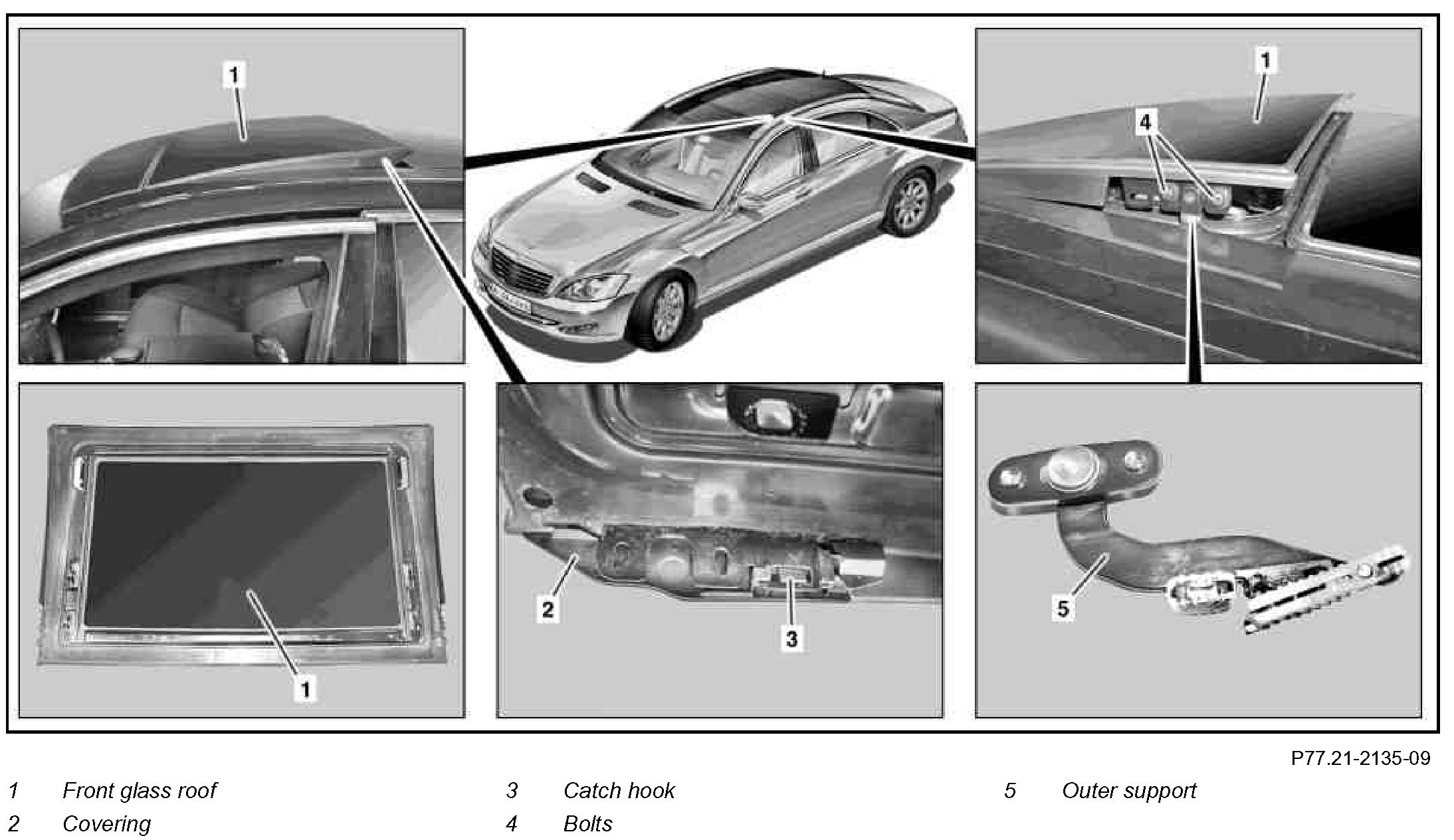

Component Identification:

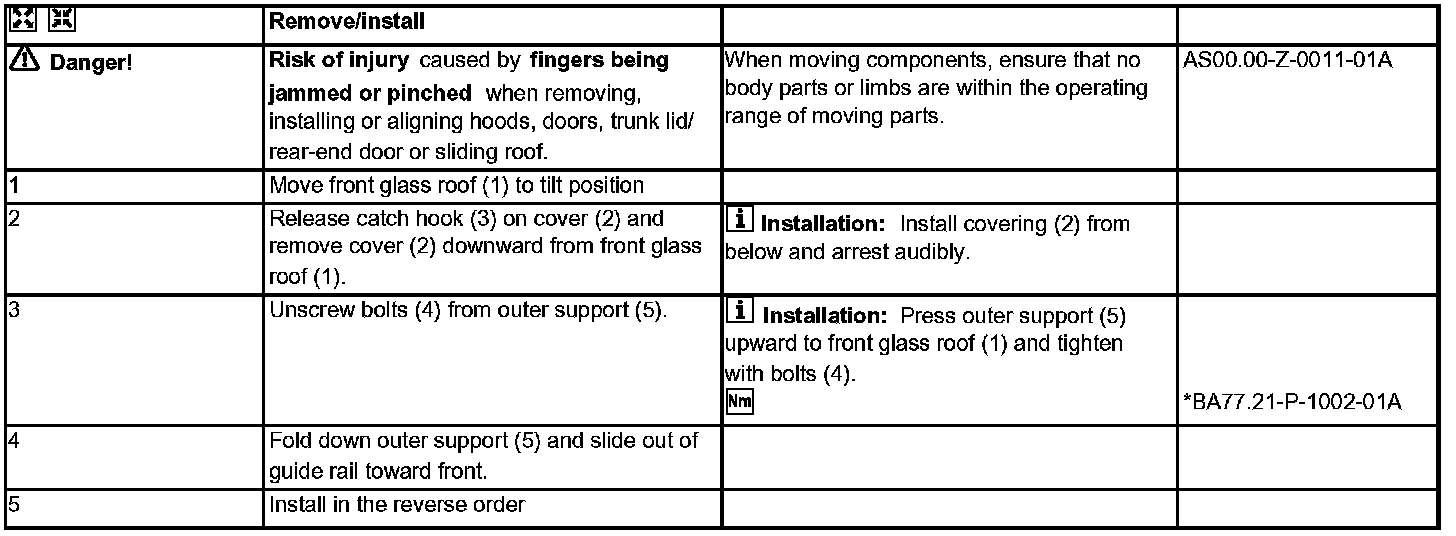

Steps 1 - 5:

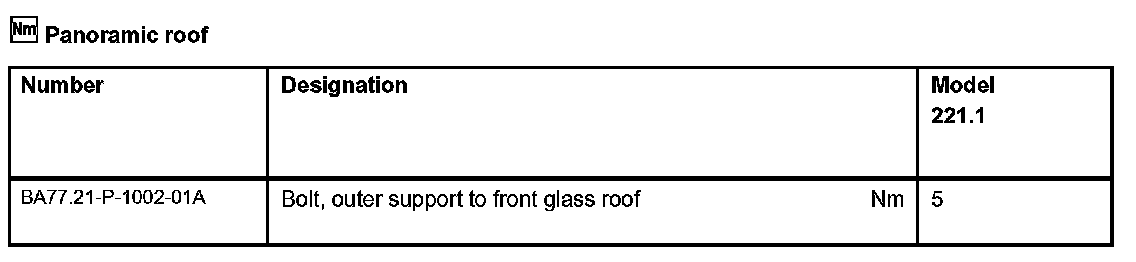

Panoramic Roof:
