AR77.21-P-0430SX Remove/Install Panoramic Roof Drive Guide Rail



AR77.21-P-0430SX Remove/Install Panoramic Roof Drive Guide Rail
- with CODE (413) Panoramic glass roof with top sliding roof

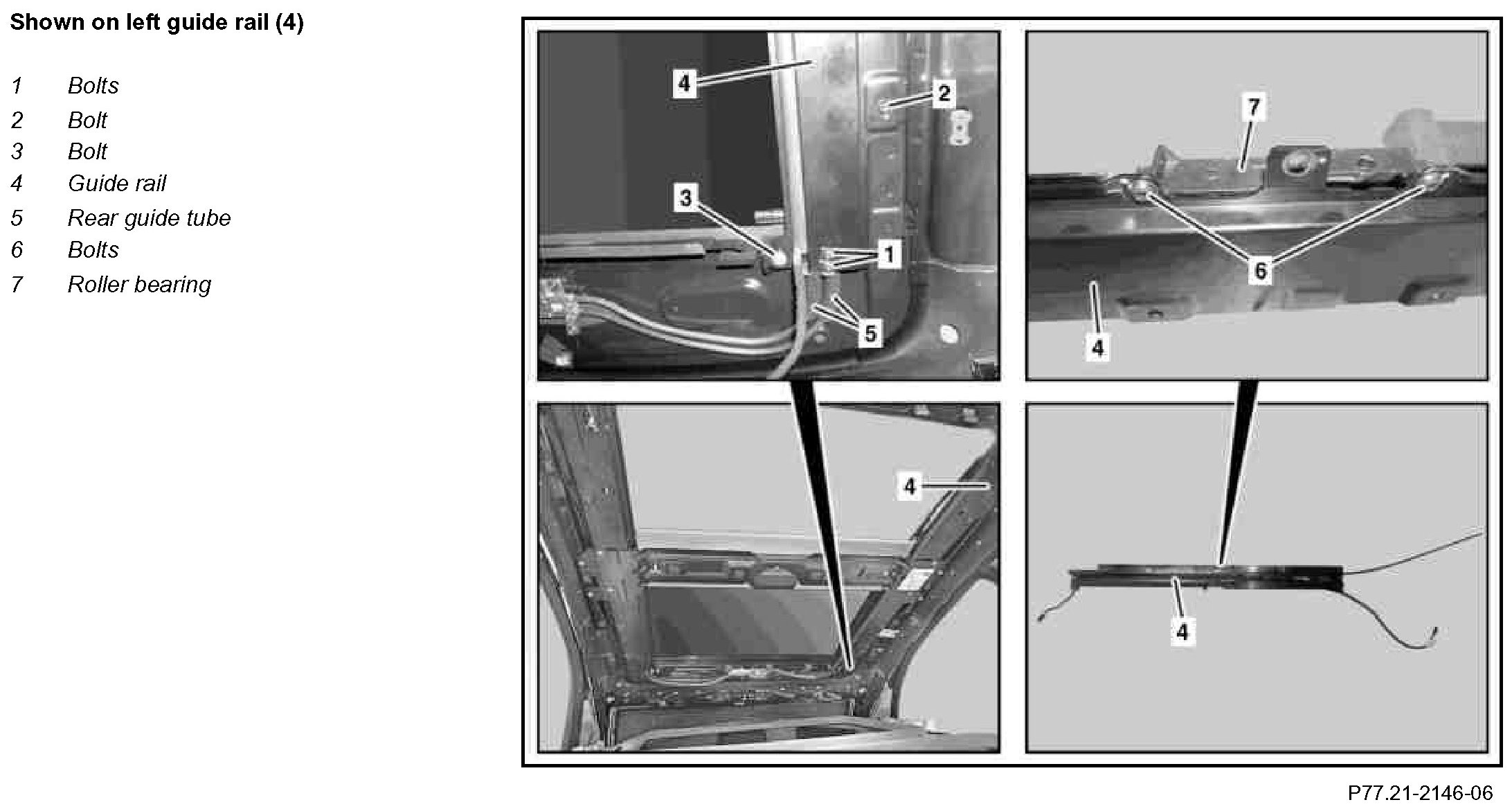

Component Identification:

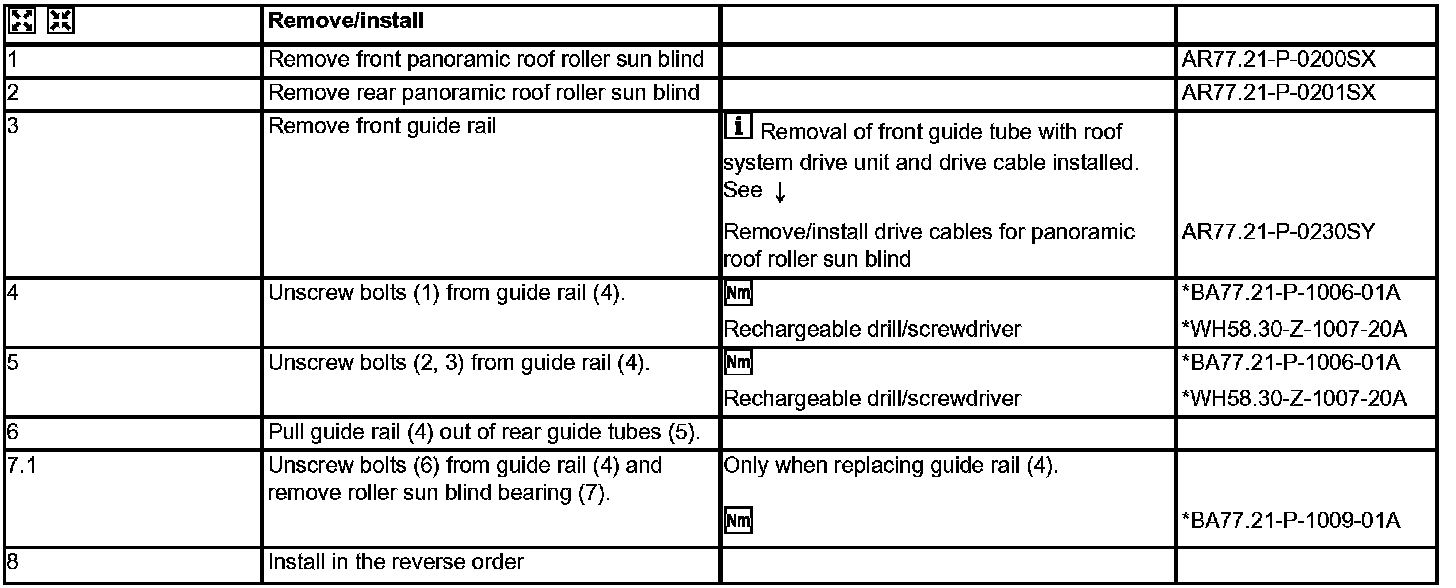

Steps 1 - 8:

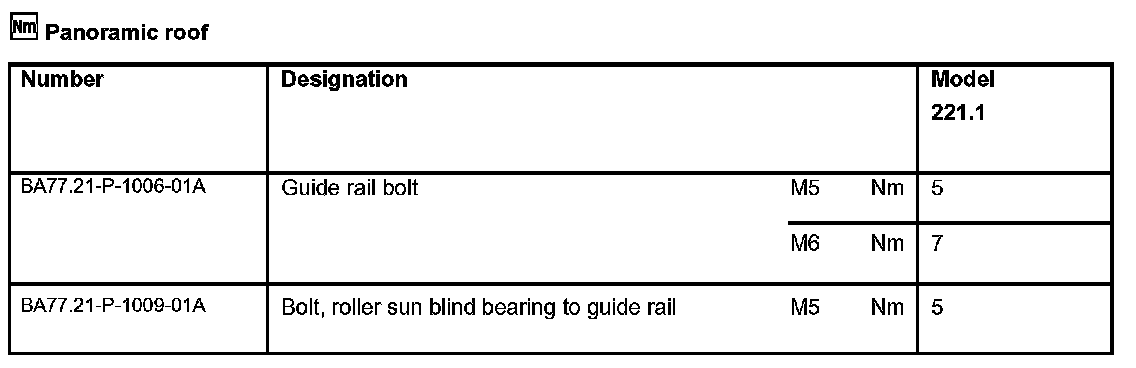

Panoramic Roof:

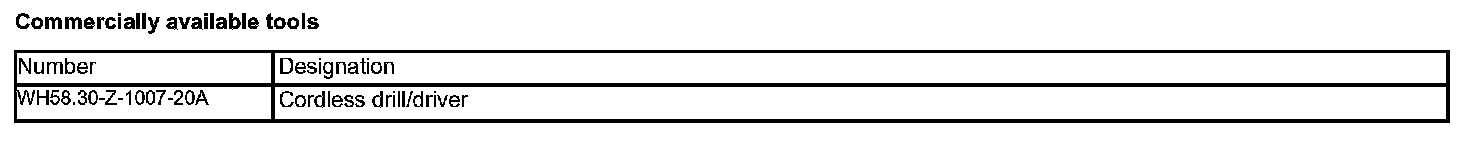

Commercially Available Tools:
