AR77.21-P-7010SX Remove/Install Front Glass Cover

AR77.21-P-7010SX Remove/Install Front Glass Cover
- with CODE (413) Panoramic glass roof with top sliding roof

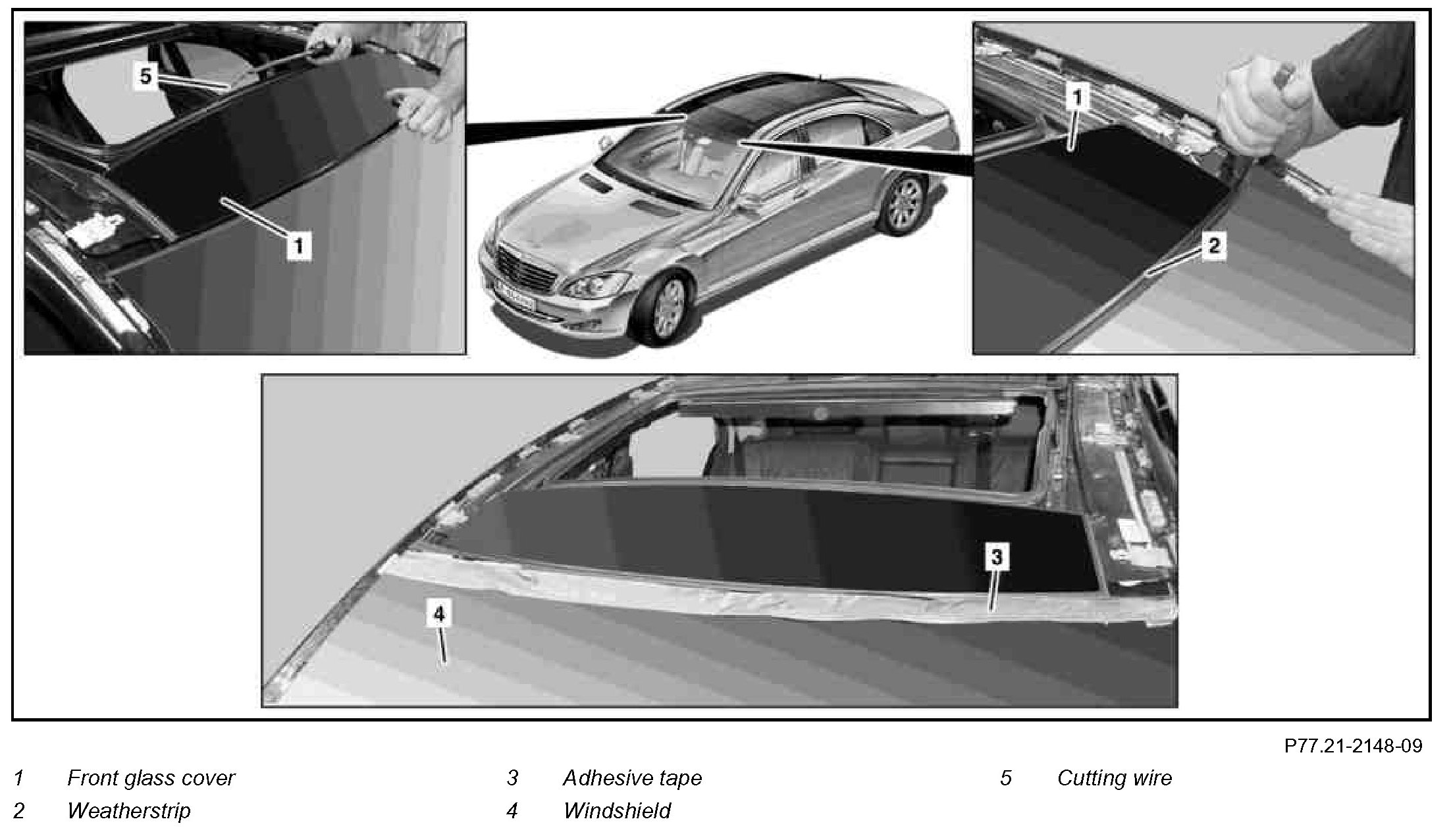

Component Identification:

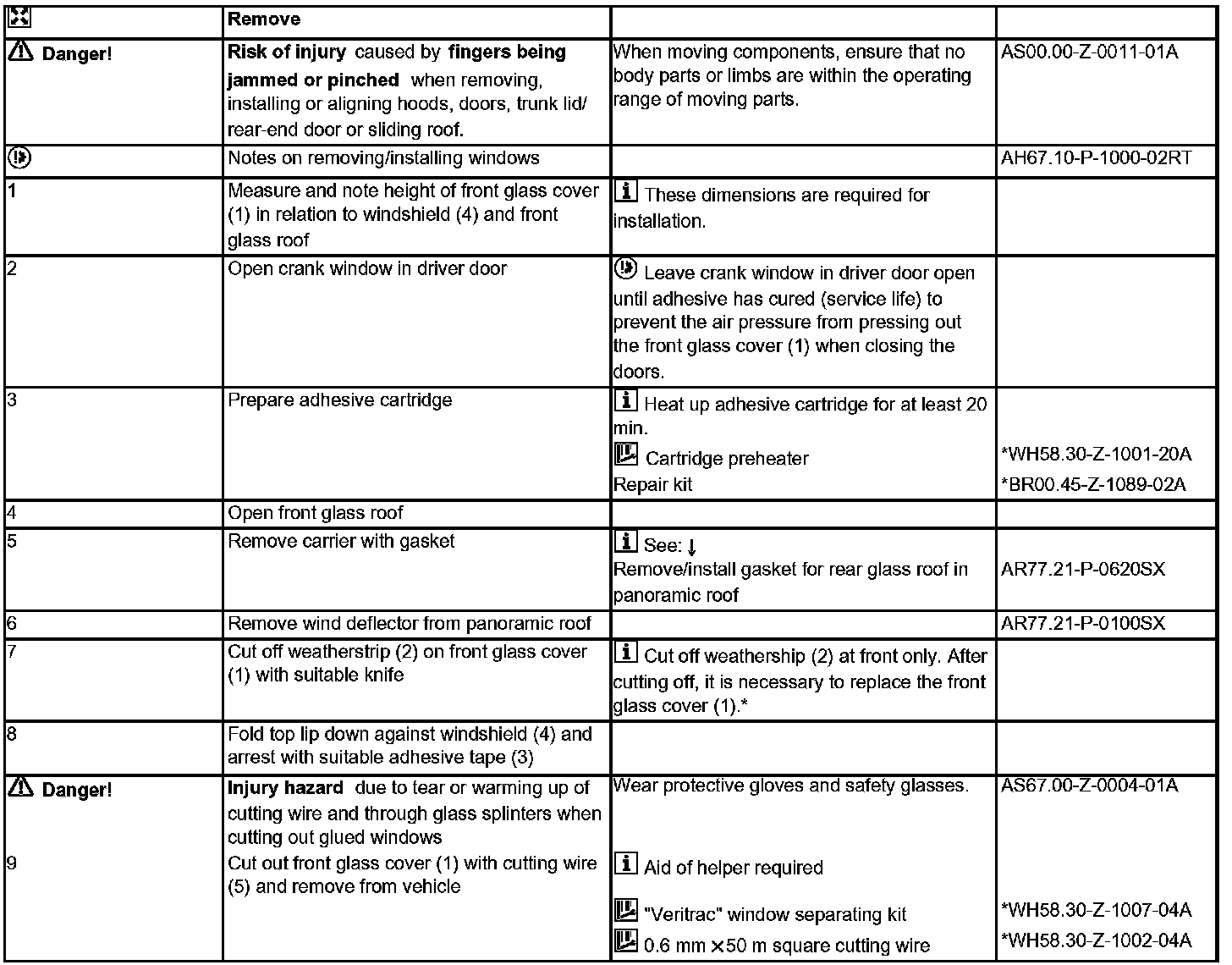

Steps 1 - 9:

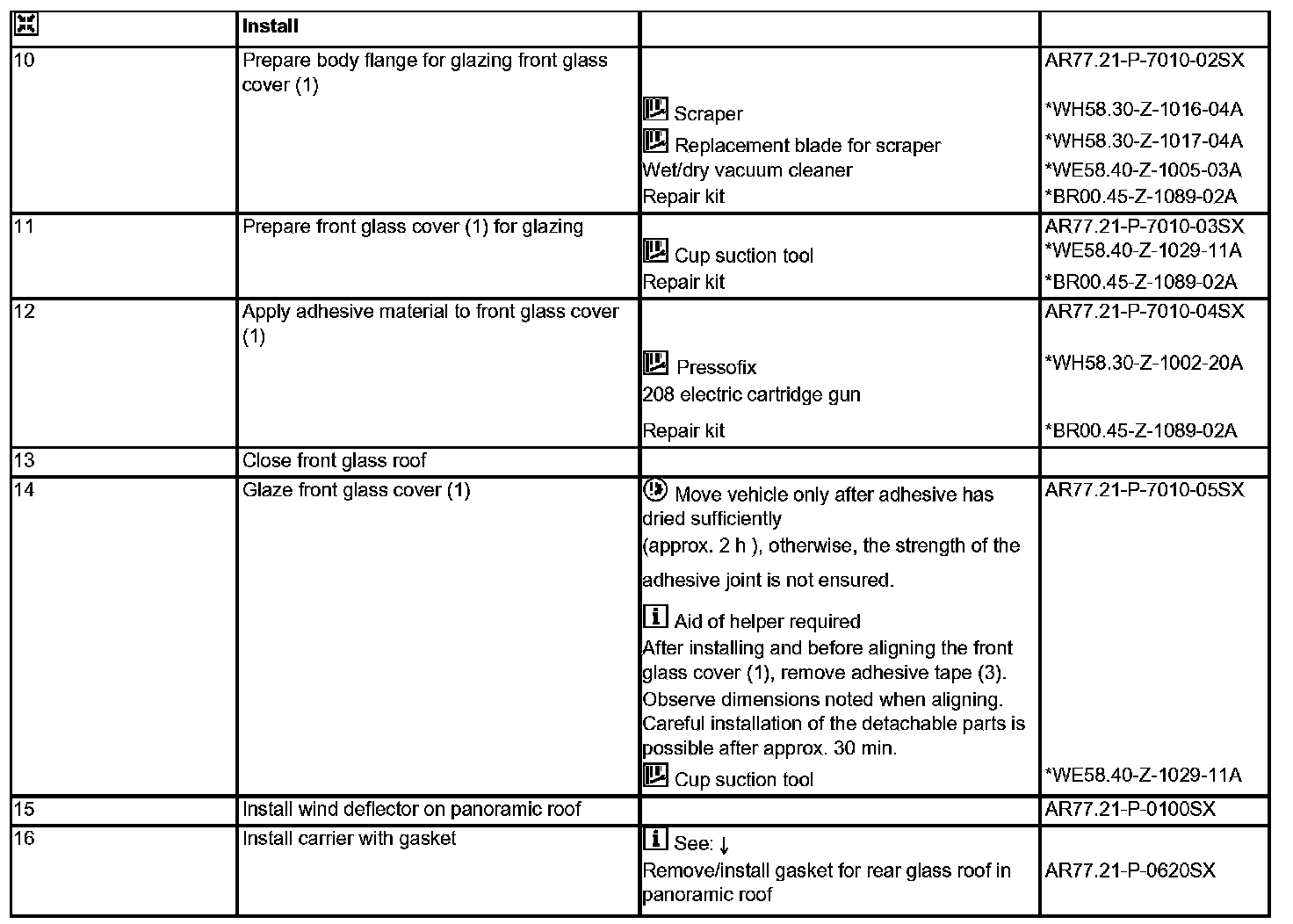

Steps 10 - 16:

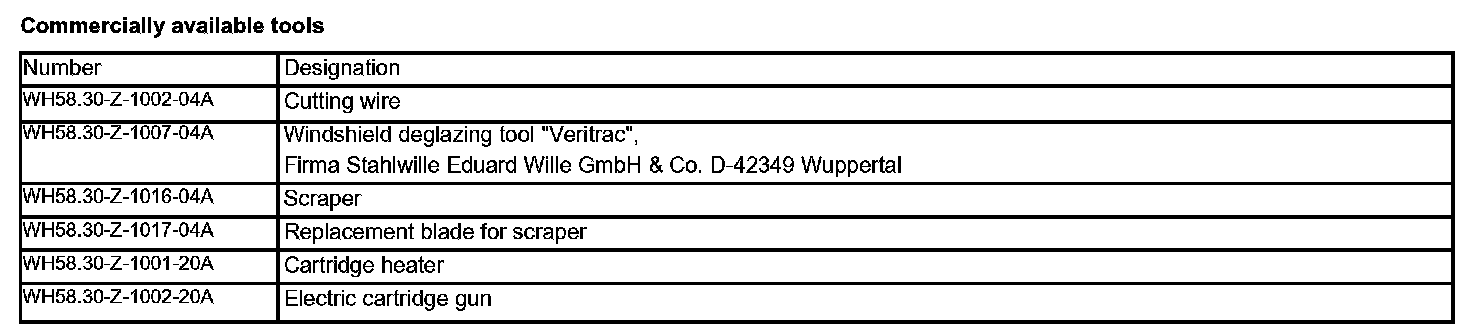

Commercially Available Tools:

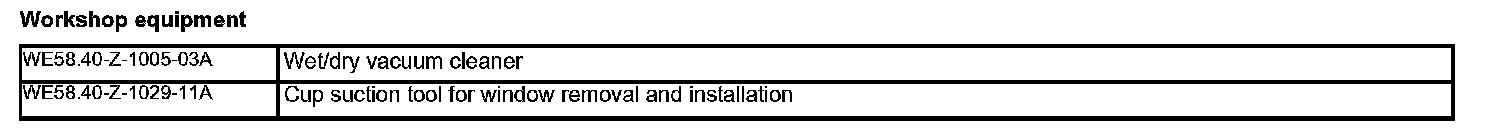

Workshop Equipment:

Repair Materials:
