AR77.21-P-0800-03SX Apply Glue For Panoramic Roof Frame

AR77.21-P-0800-03SX Apply Glue For Panoramic Roof Frame
- with CODE (413) Panoramic glass roof with top sliding roof

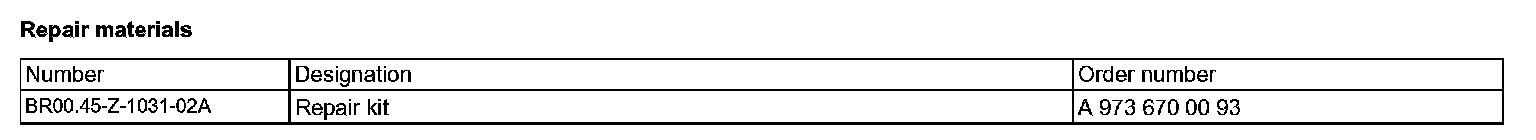

Repair Materials:

Shown on model 221

Wear cotton gloves. Ensure that no fingerprints (1, 2) are present in the area of the bonding surface.

1. Cutout triangular opening on application nozzle so that adhesive can be applied with a height of approx. 14 mm and a width of approx. 8 mm.
2. Guide application nozzle on bonding surfaces (1, 2) along body flange while uniformly pressing out glue.
"Pressofix" cartridge gun.

Carefully remove adhesive residues immediately. Completely remove excess adhesive from cartridges immediately after applying adhesive and dispose of it as per local regulations.
