AR77.21-P-0600SX Remove/Install Rear Panoramic Glass Roof



AR77.21-P-0600SX Remove/Install Rear Panoramic Glass Roof
- with CODE (413) Panoramic glass roof with top sliding roof

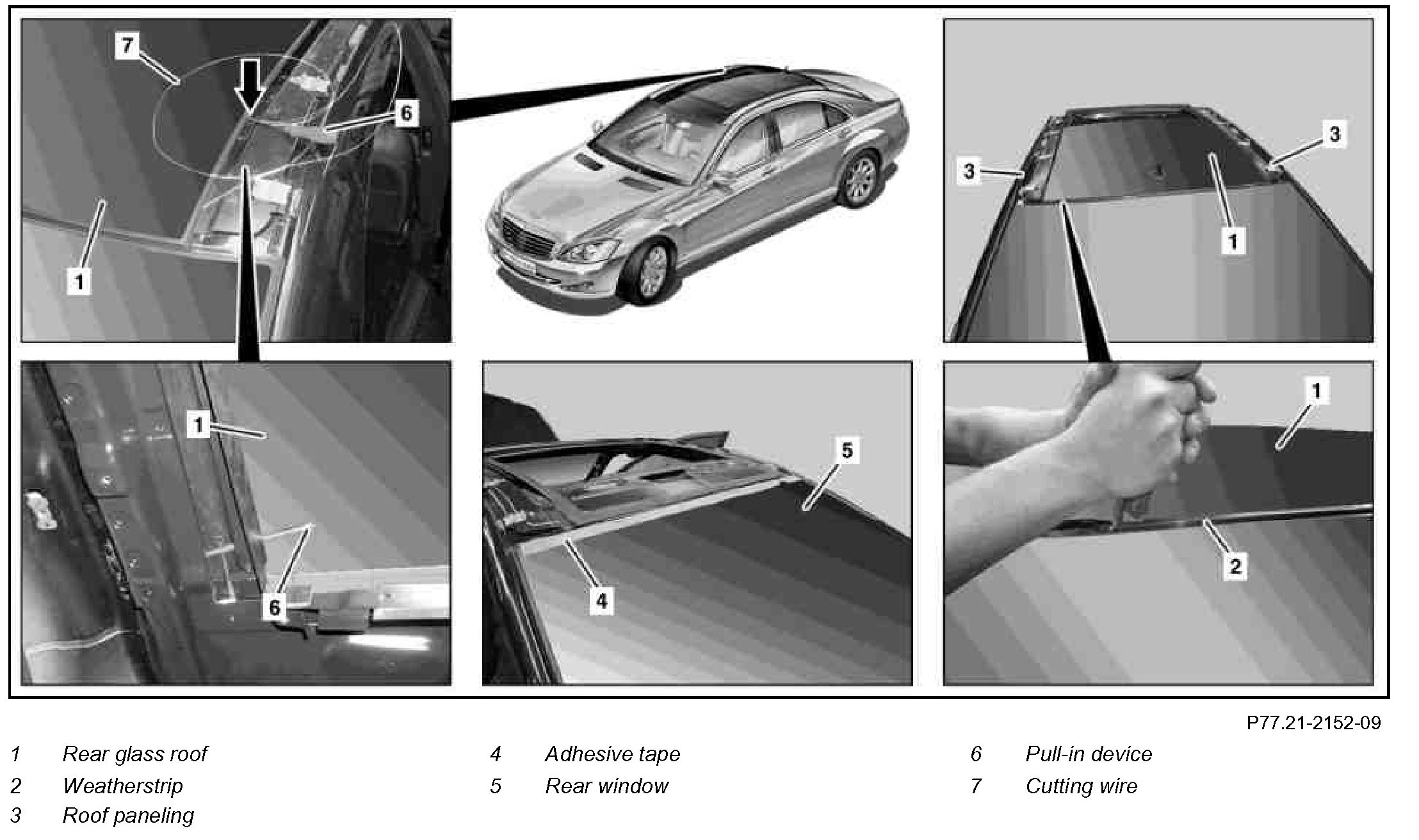

Component Identification:

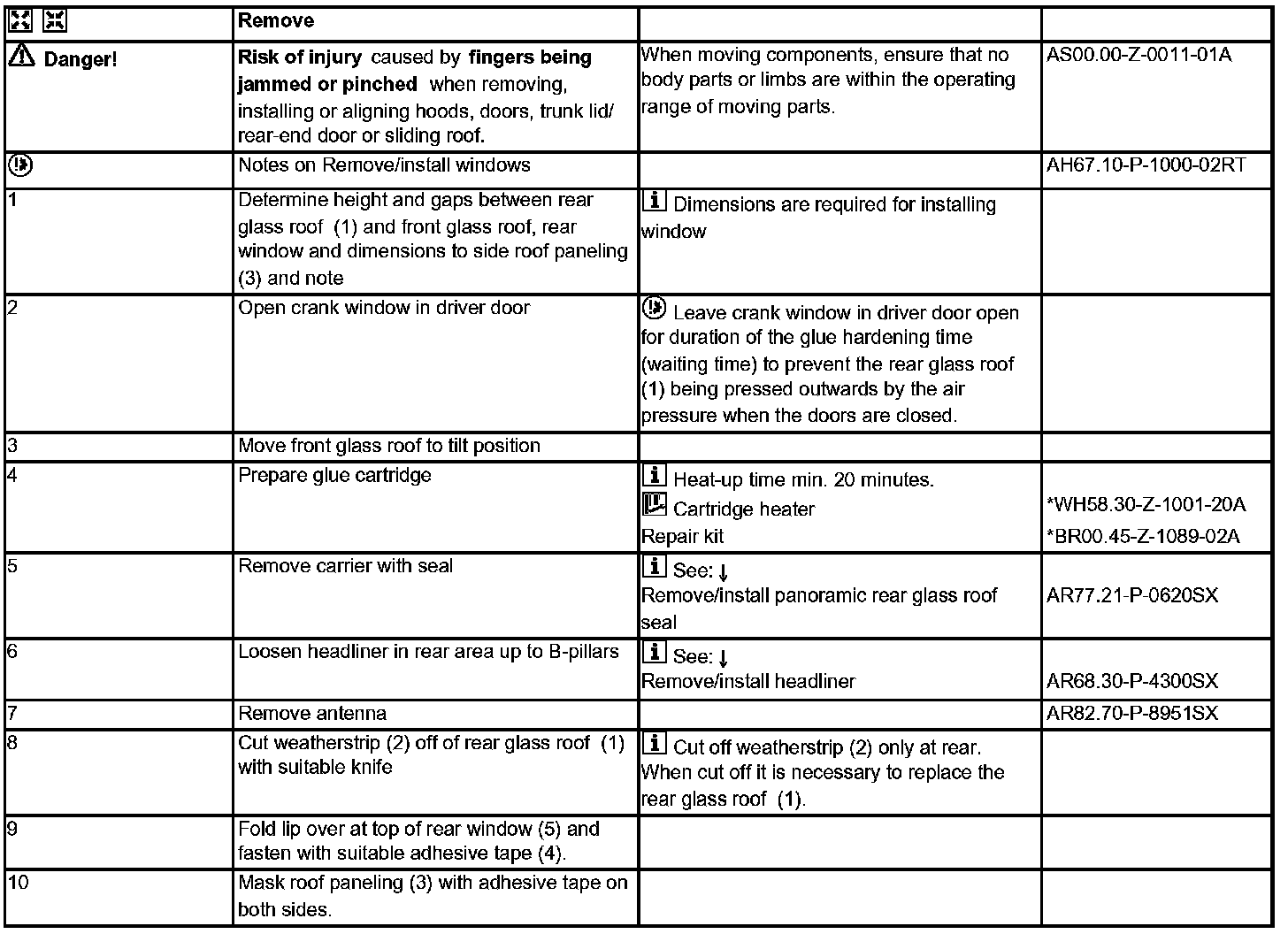

Steps 1 - 10:

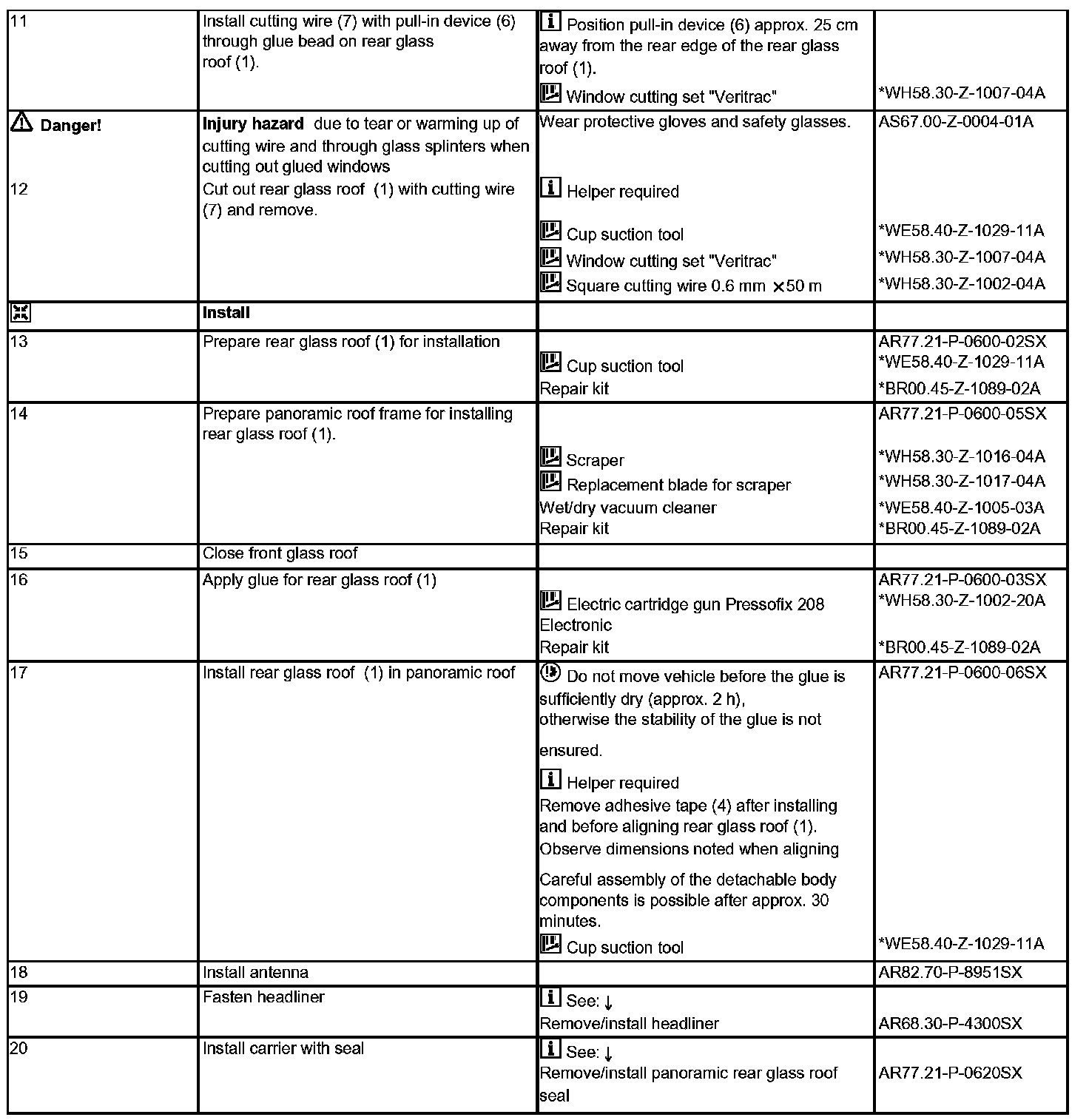

Steps 11 - 20:

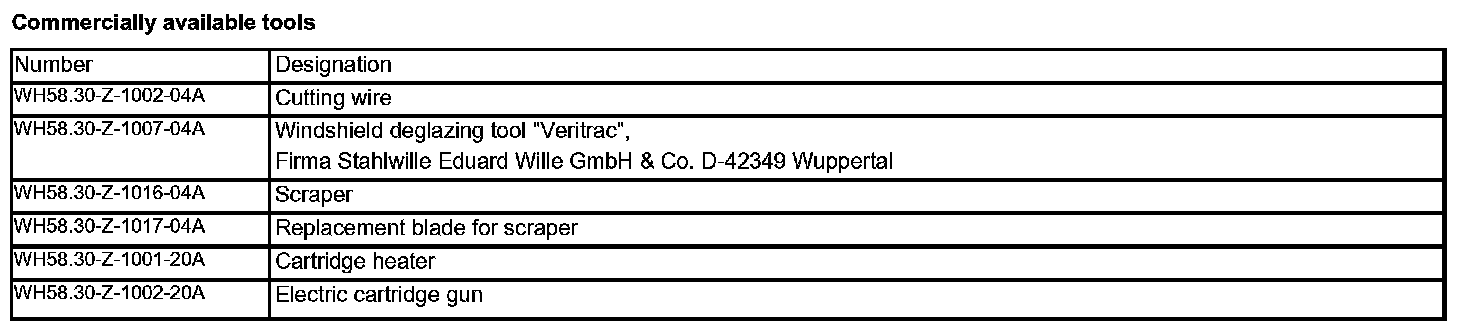

Commercially Available Tools:

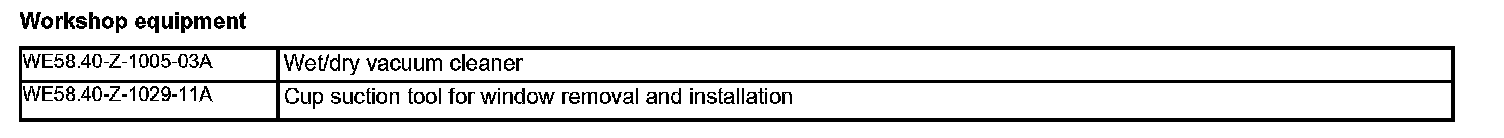

Workshop Equipment:

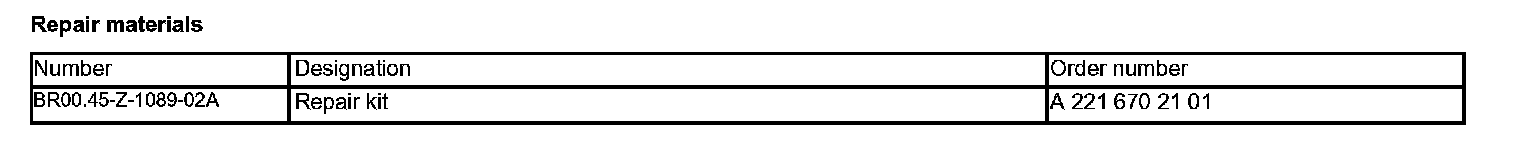

Repair Materials:
