AR77.21-P-0600-03SX Apply Adhesive Material For Rear Glass Roof

AR77.21-P-0600-03SX Apply Adhesive Material For Rear Glass Roof
- with CODE (413) Panoramic glass roof with top sliding glass

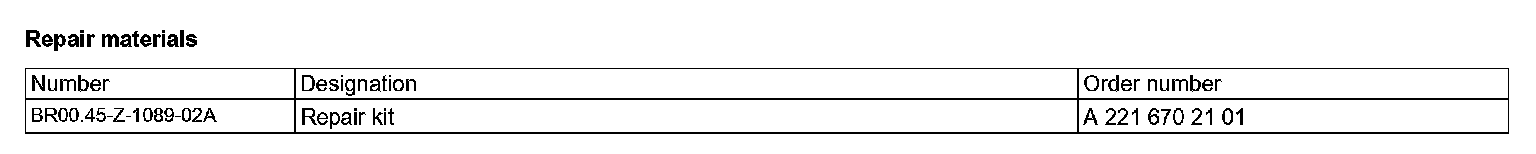

Repair Materials:

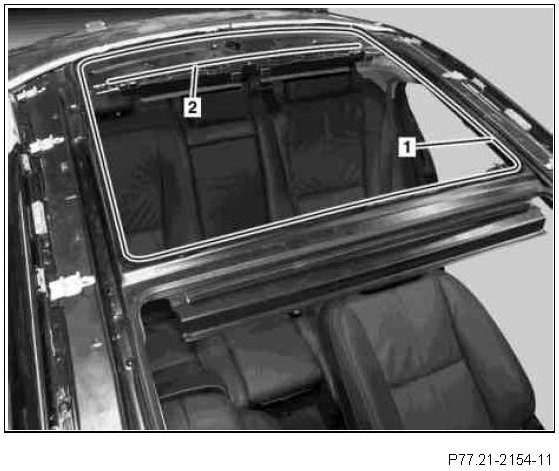

Shown on model 221

Wear cotton gloves. Ensure that no fingerprints (1, 2) are present in the area of the bonding surface. To prevent adhesion problems when installing, keep bonding surfaces (1, 2) free of dust, oil, grease, wax, dirt residues and other anti-adhesive components.

1. Cut triangular opening of application nozzle so that adhesive can be applied with a height of approx. 14 mm and a width of approx. 8 mm.
2. Guide application nozzle on bonding surfaces (1, 2) along flange while uniformly pressing out glue.
"Pressofix" cartridge gun.

Carefully remove adhesive residues immediately. Completely remove excess adhesive from cartridges immediately after applying adhesive and dispose of it as per local regulations.
