AR77.21-P-0500SX Remove/Install Panoramic Front Glass Roof



AR77.21-P-0500SX Remove/Install Panoramic Front Glass Roof
- with CODE (413) Panoramic glass roof with top sliding roof

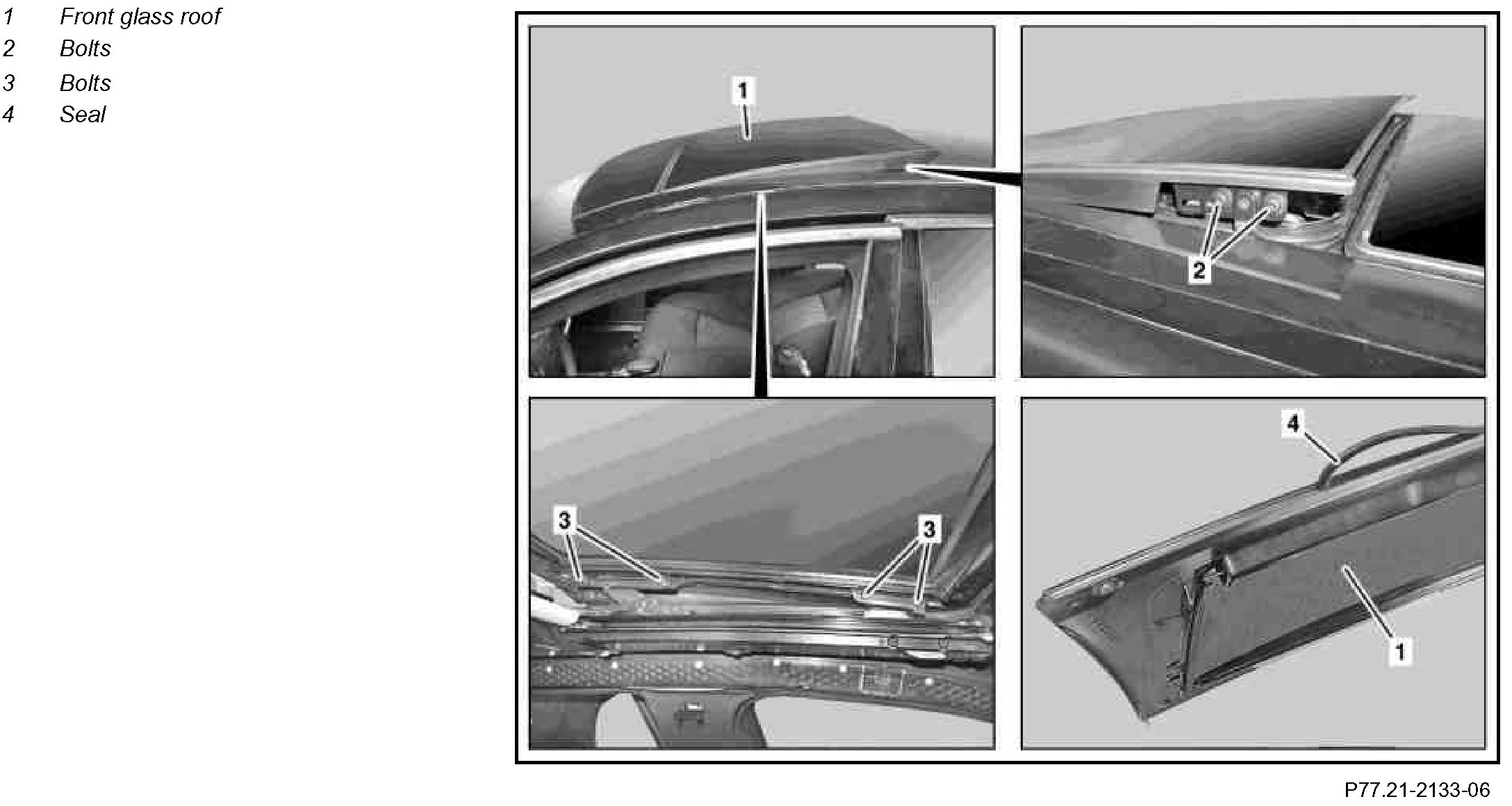

Component Identification:

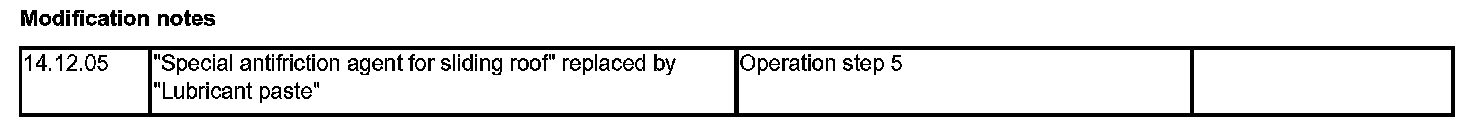

Modification Notes:

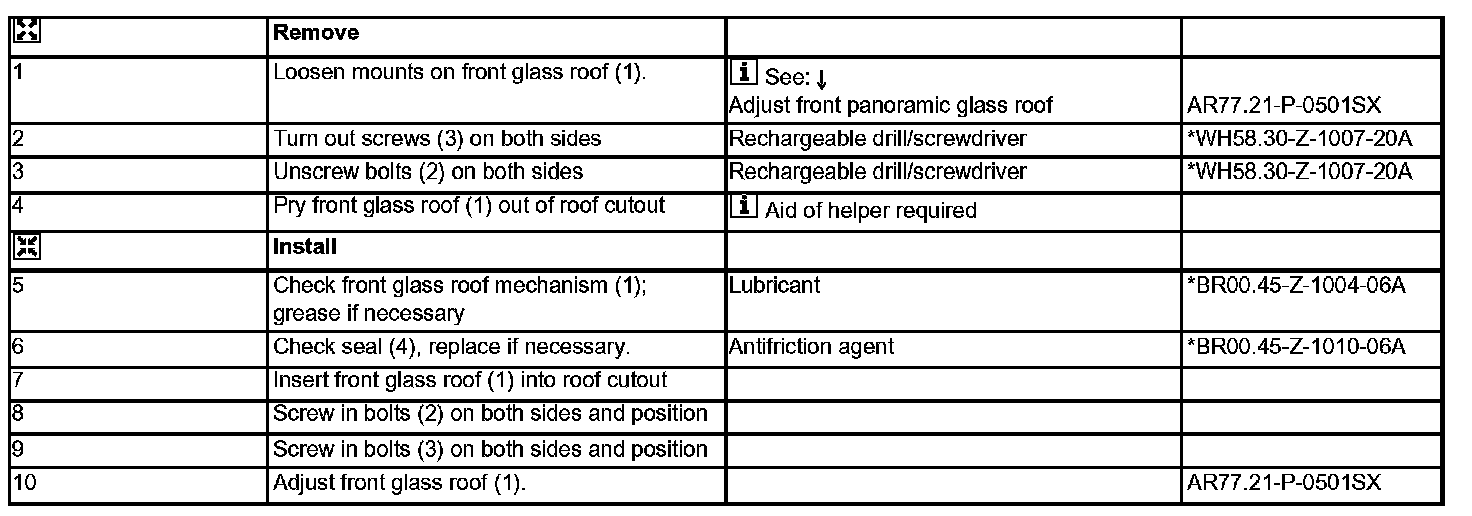

Steps 1 - 10:

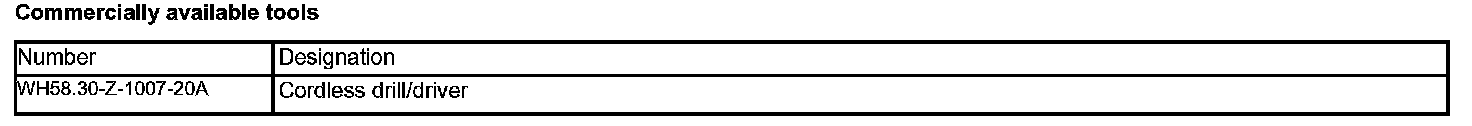

Commercially Available Tools:

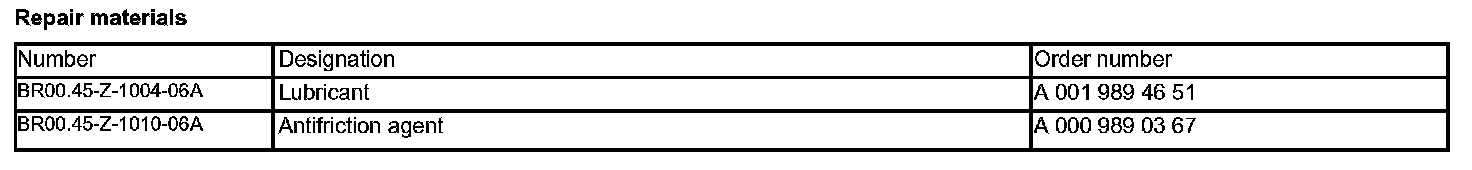

Repair Materials:
