AR77.21-P-6995SX Remove/Install Panoramic Sliding Roof Motor



AR77.21-P-6995SX Remove/Install Panoramic Sliding Roof Motor
- with CODE (413) Panoramic glass roof with top sliding roof

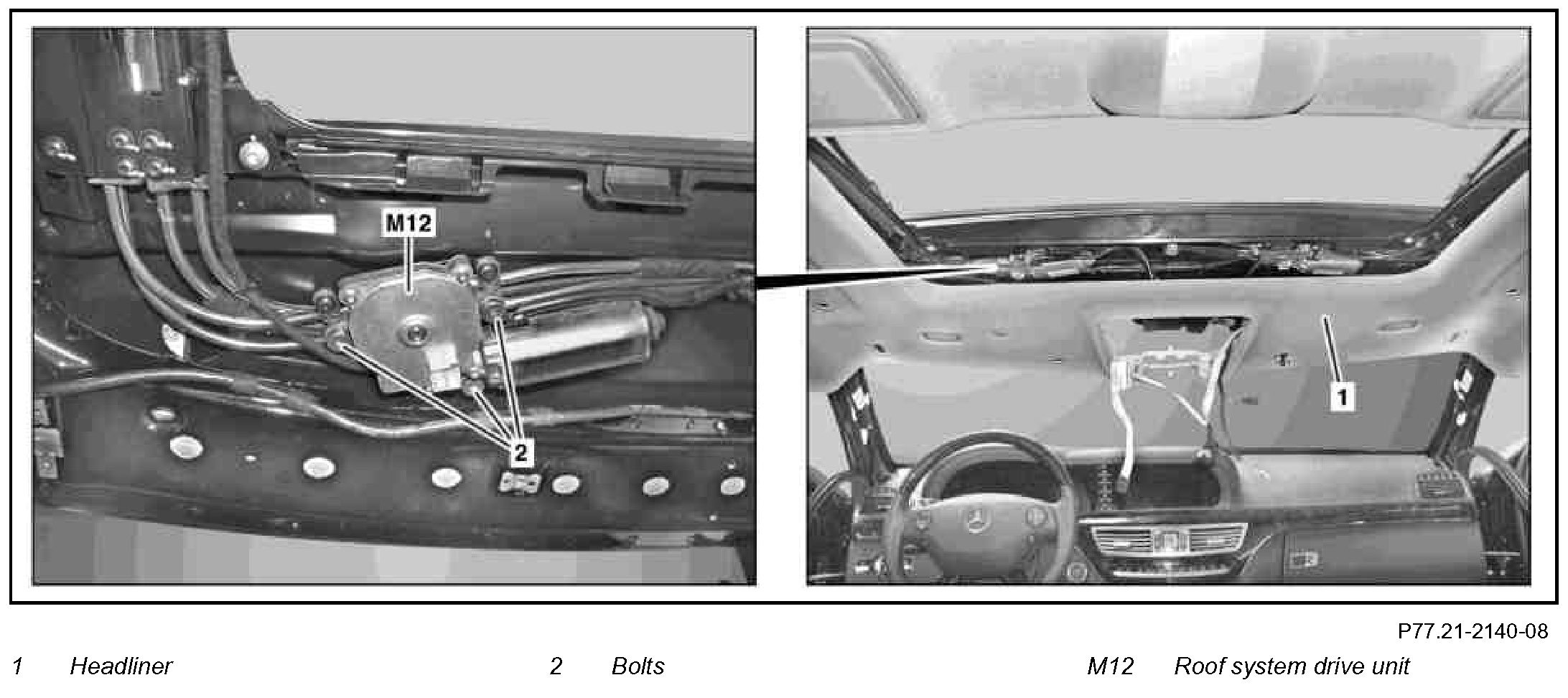

Component Identification:

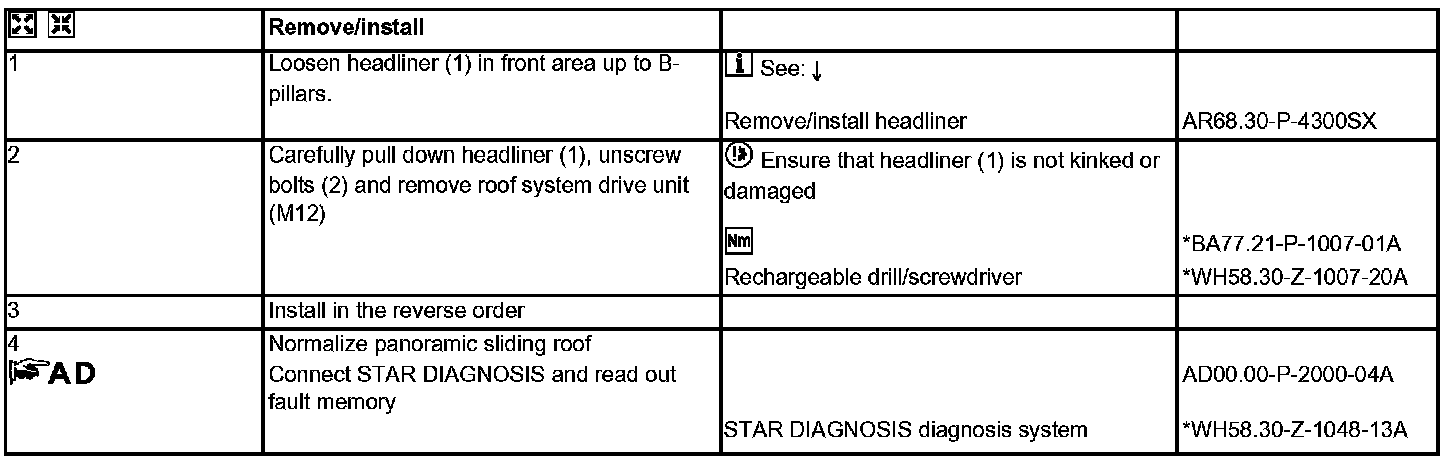

Steps 1 - 4:

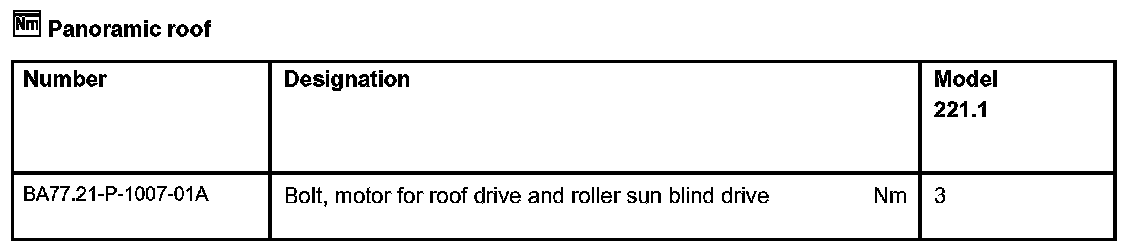

Panoramic Roof:

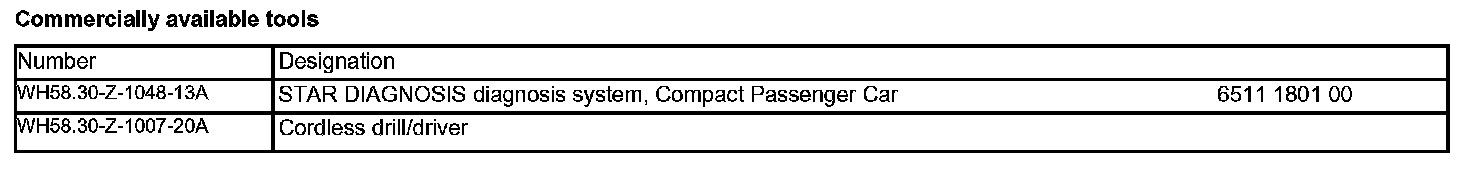

Commercially Available Tools:
