AR77.21-P-0490SY Remove/Install Motor For Rear Roller Sun Blind on Panoramic Sliding Roof



AR77.21-P-0490SY Remove/Install Motor For Rear Roller Sun Blind On Panoramic Sliding Roof
- with CODE (413) Panoramic glass roof with top sliding roof
- Rear roller sun blind motor

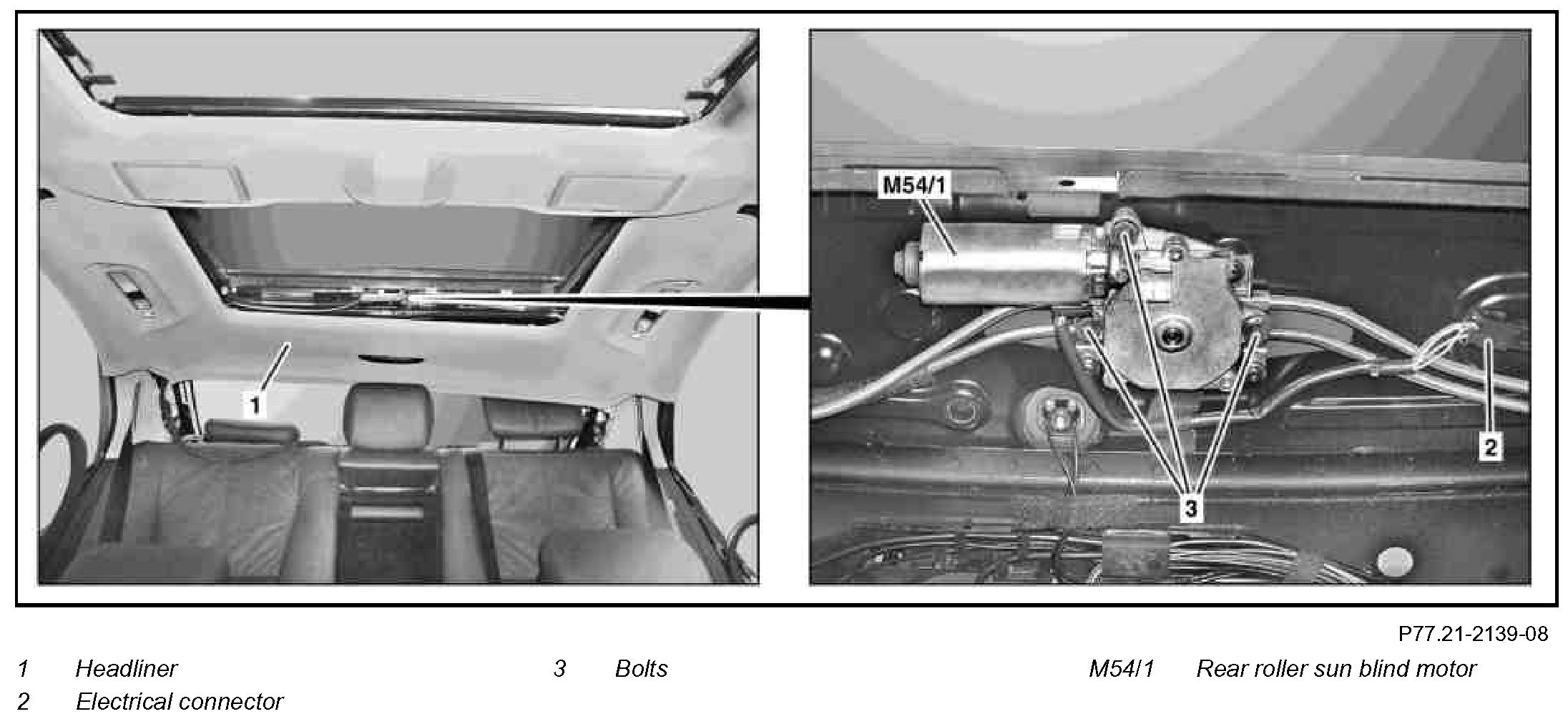

Component Identification:

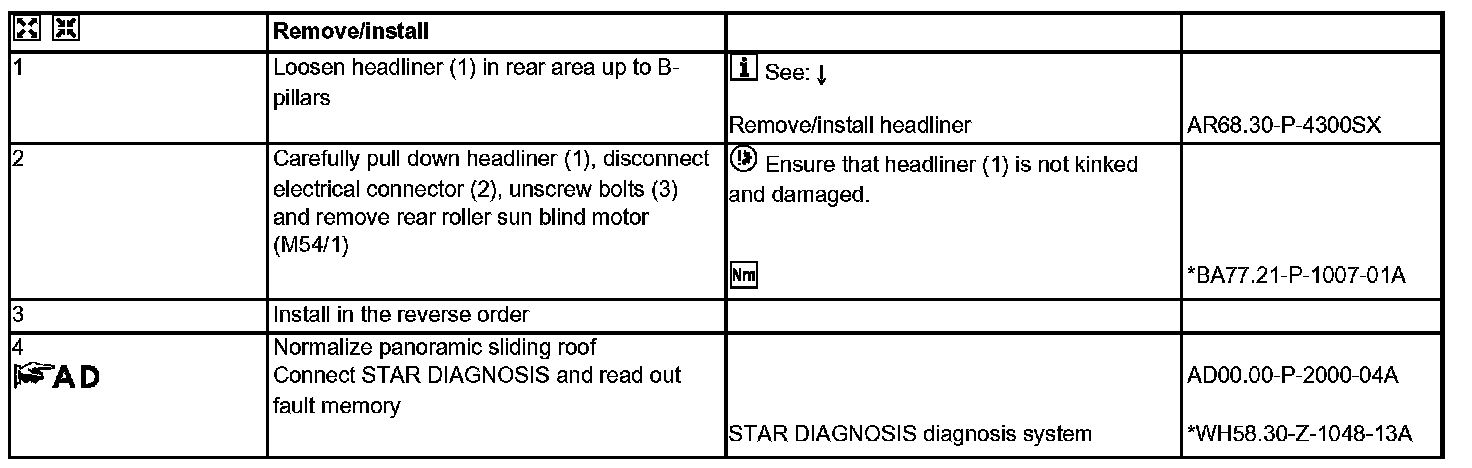

Steps 1 - 4:

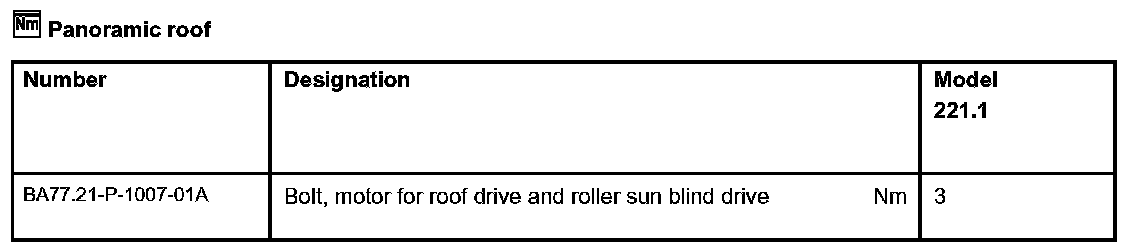

Panoramic Roof:

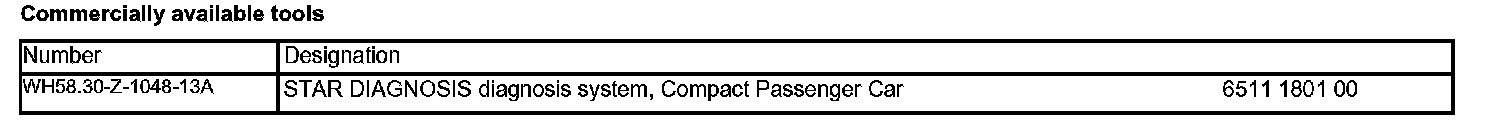

Commercially Available Tools:
