AR77.21-P-0800SX Remove/Install Panoramic Roof Frame

AR77.21-P-0800SX Remove/Install Panoramic Roof Frame
- with CODE (413) Panoramic glass roof with top sliding roof

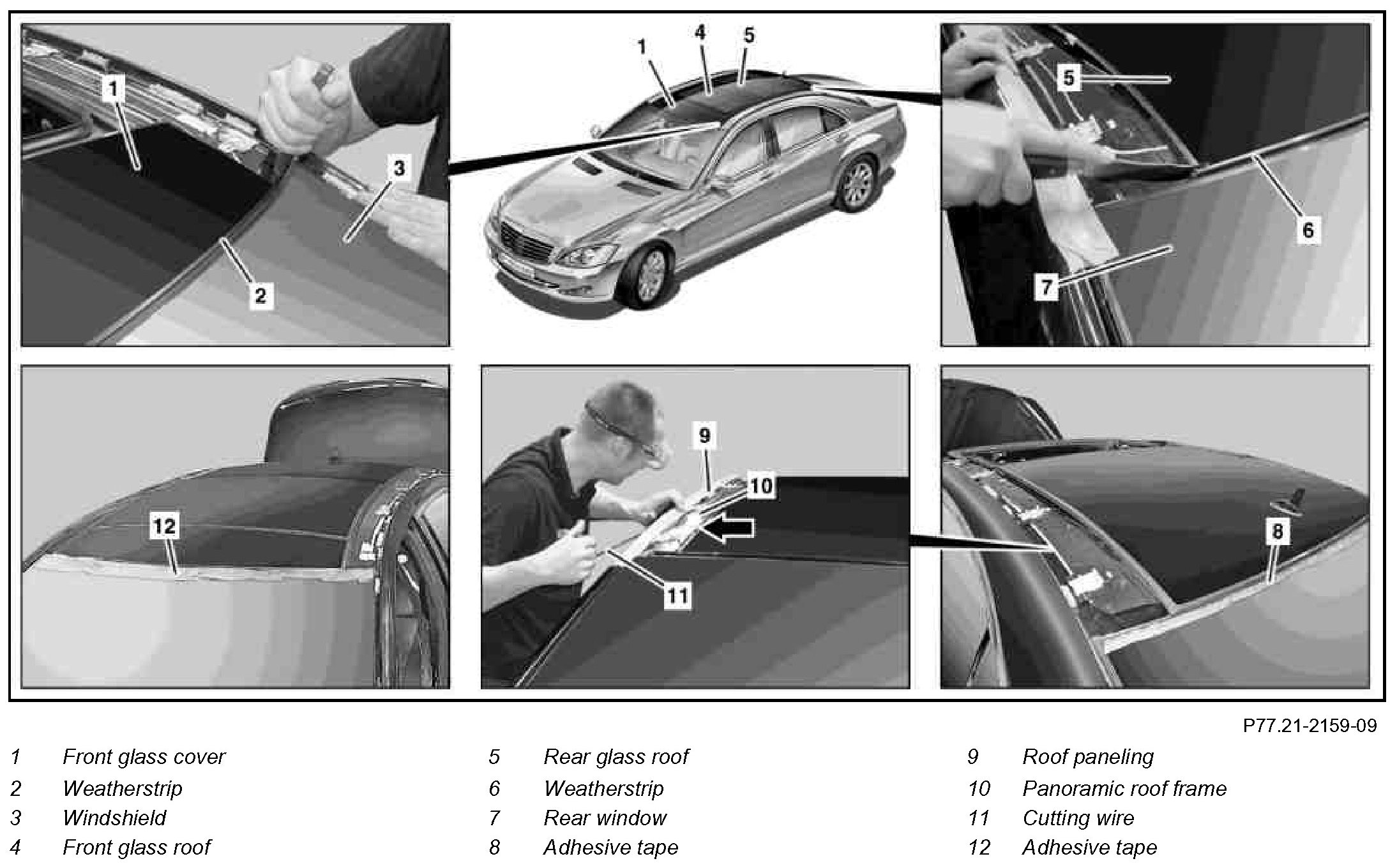

Component Identification:

Steps 1 - 13:

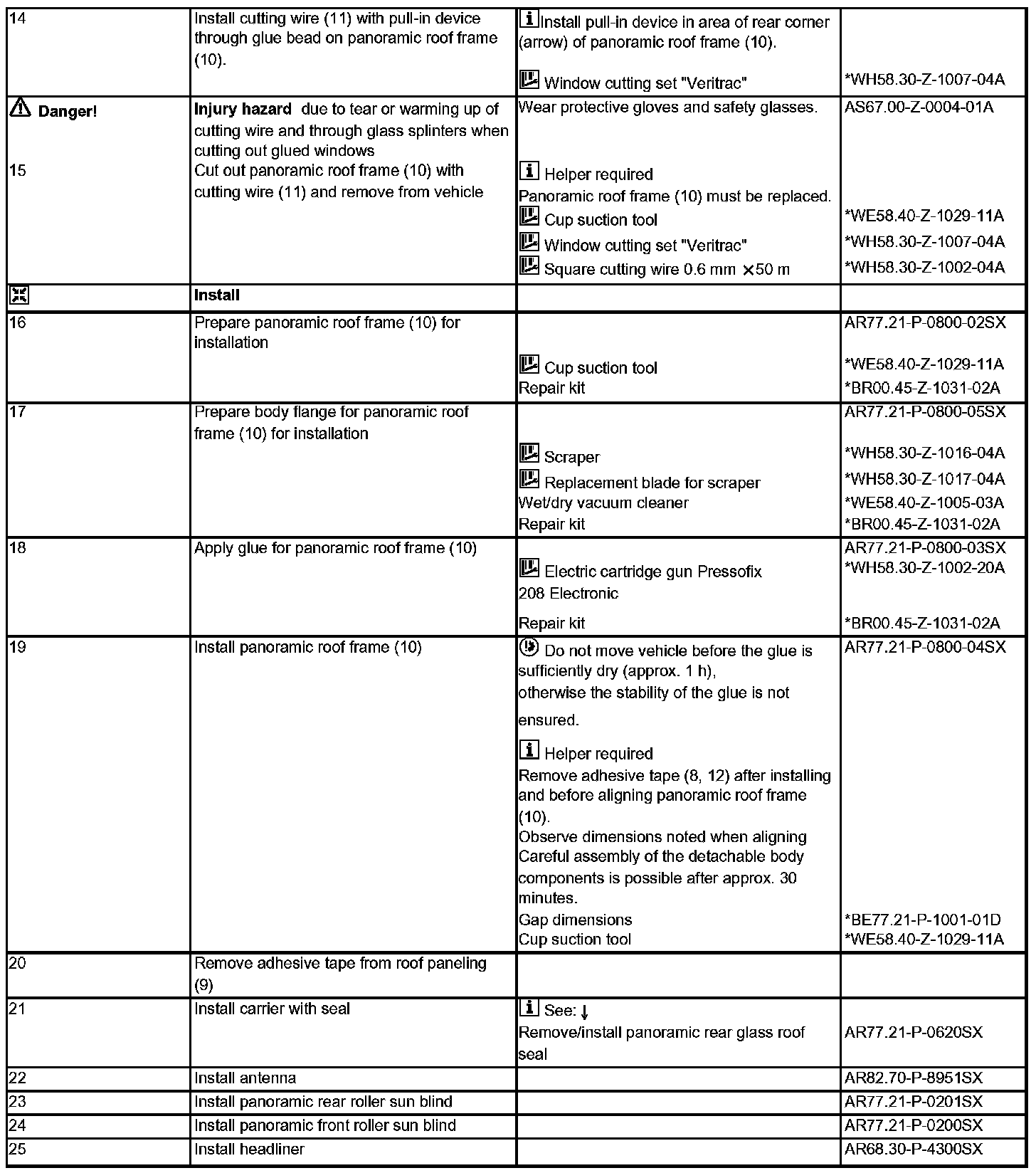

Steps 14 - 25:

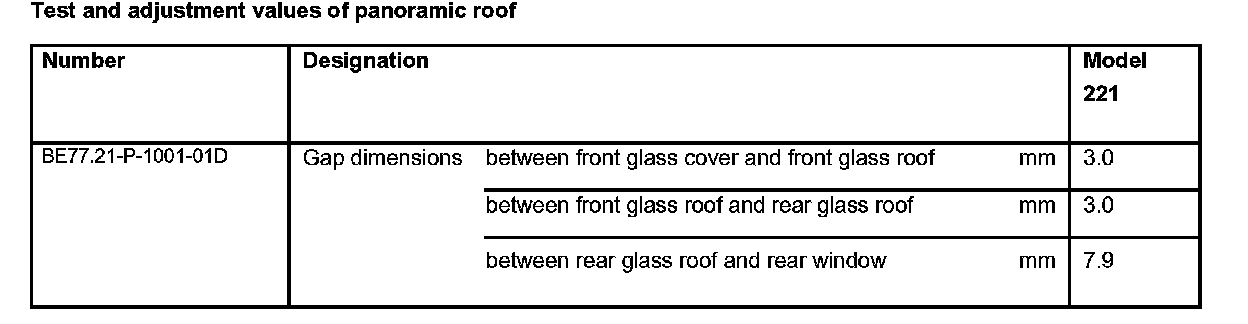

Test And Adjustment Values Of Panoramic Roof:

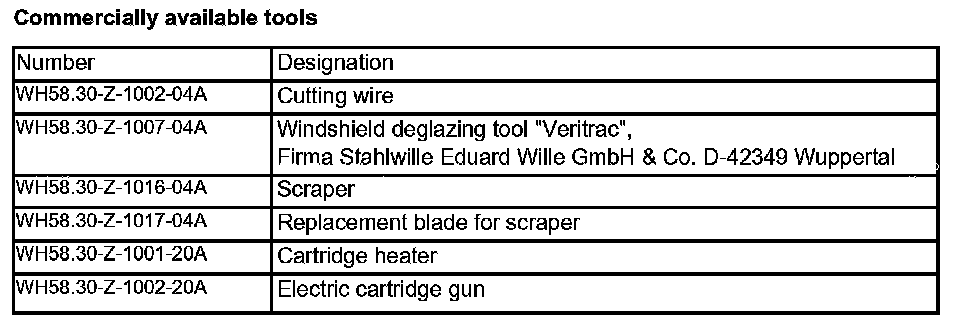

Commercially Available Tools:

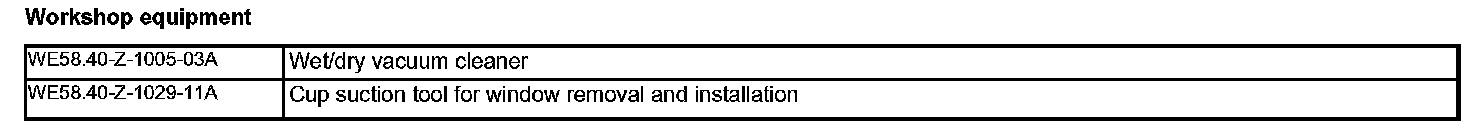

Workshop Equipment:

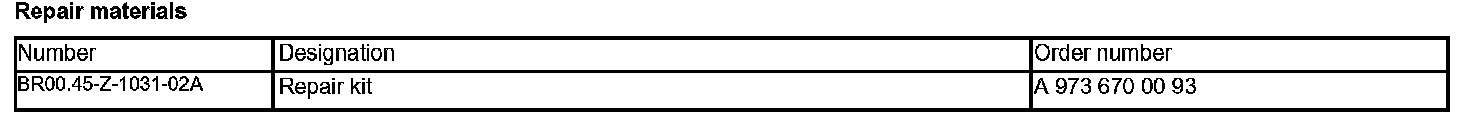

Repair Materials:
