AR77.20-P-3000SX Remove/Install Tilting/Sliding Roof Frame

AR77.20-P-3000SX Remove/Install Tilting/Sliding Roof Frame
MODEL 221.0
- with CODE (414) Power glass tilting/sliding roof
MODEL 221.1, 216.3

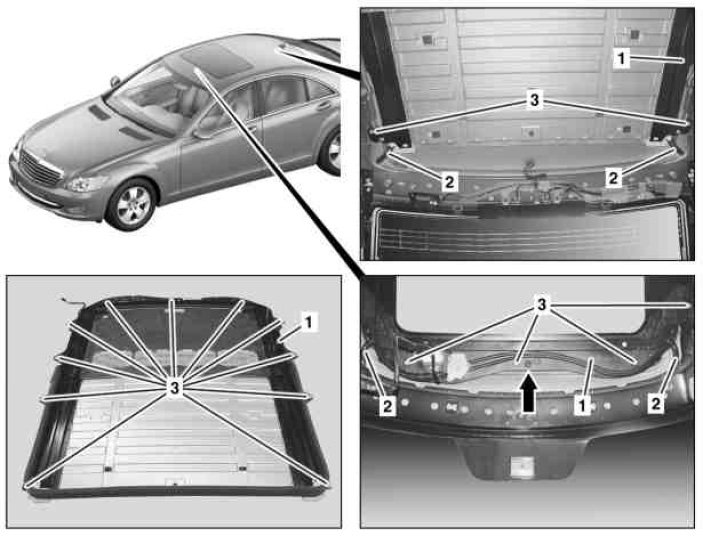

Shown on model 221.0

1 Tilting/sliding roof frame
2 Water drain hose
3 Bolts














202 589 01 37 00
Assembly pliers
