AR77.21-P-0240SX Remove/Install Drive Cable For Panoramic Sliding Roof



AR77.21-P-0240SX Remove/Install Drive Cable For Panoramic Sliding Roof
- with CODE (413) Panoramic glass roof with top sliding roof

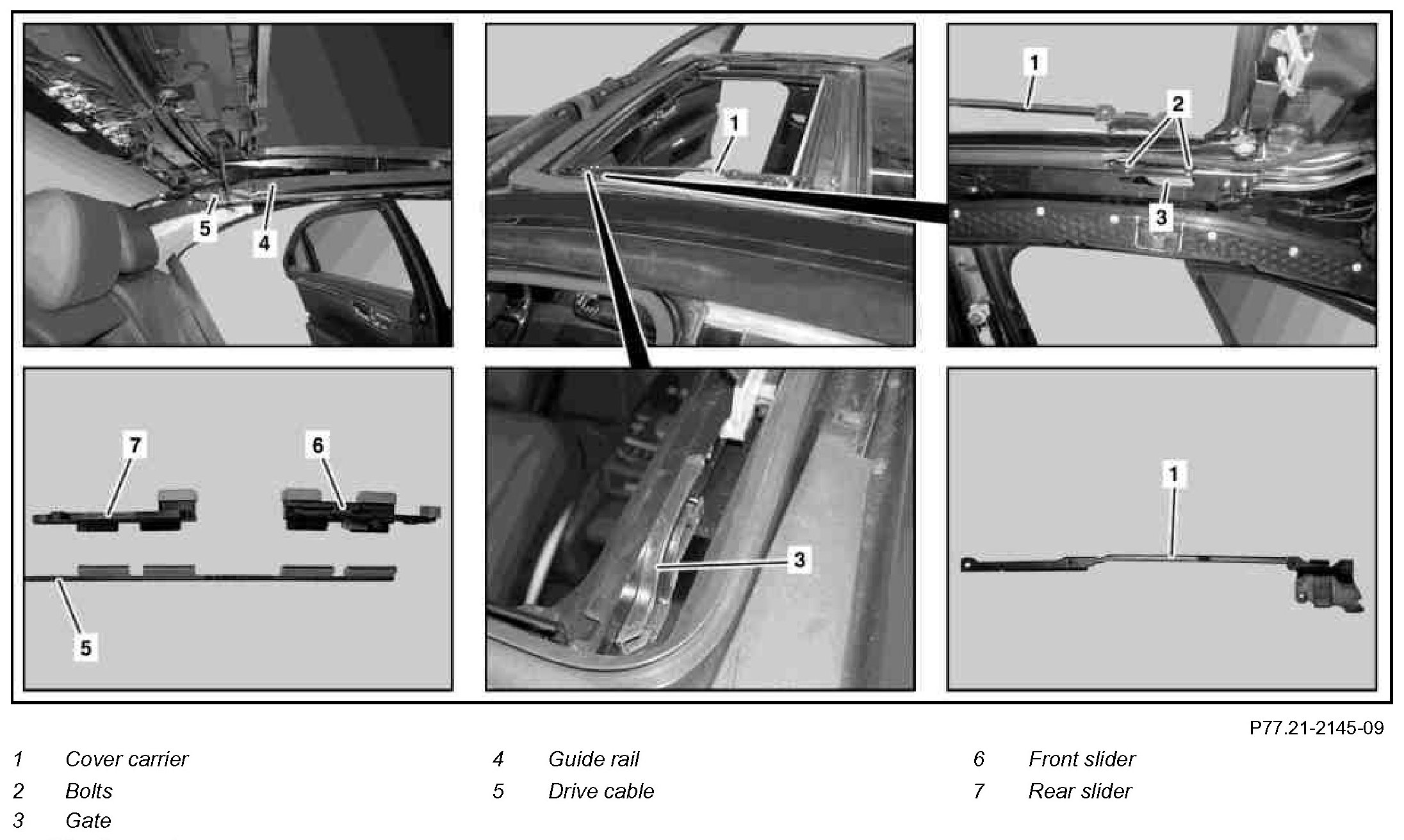

Component Identification:

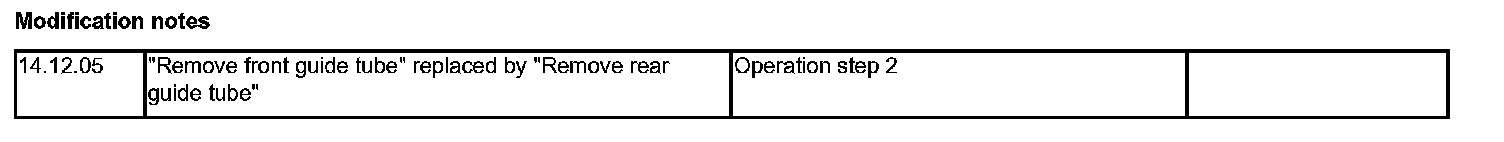

Modification Notes:

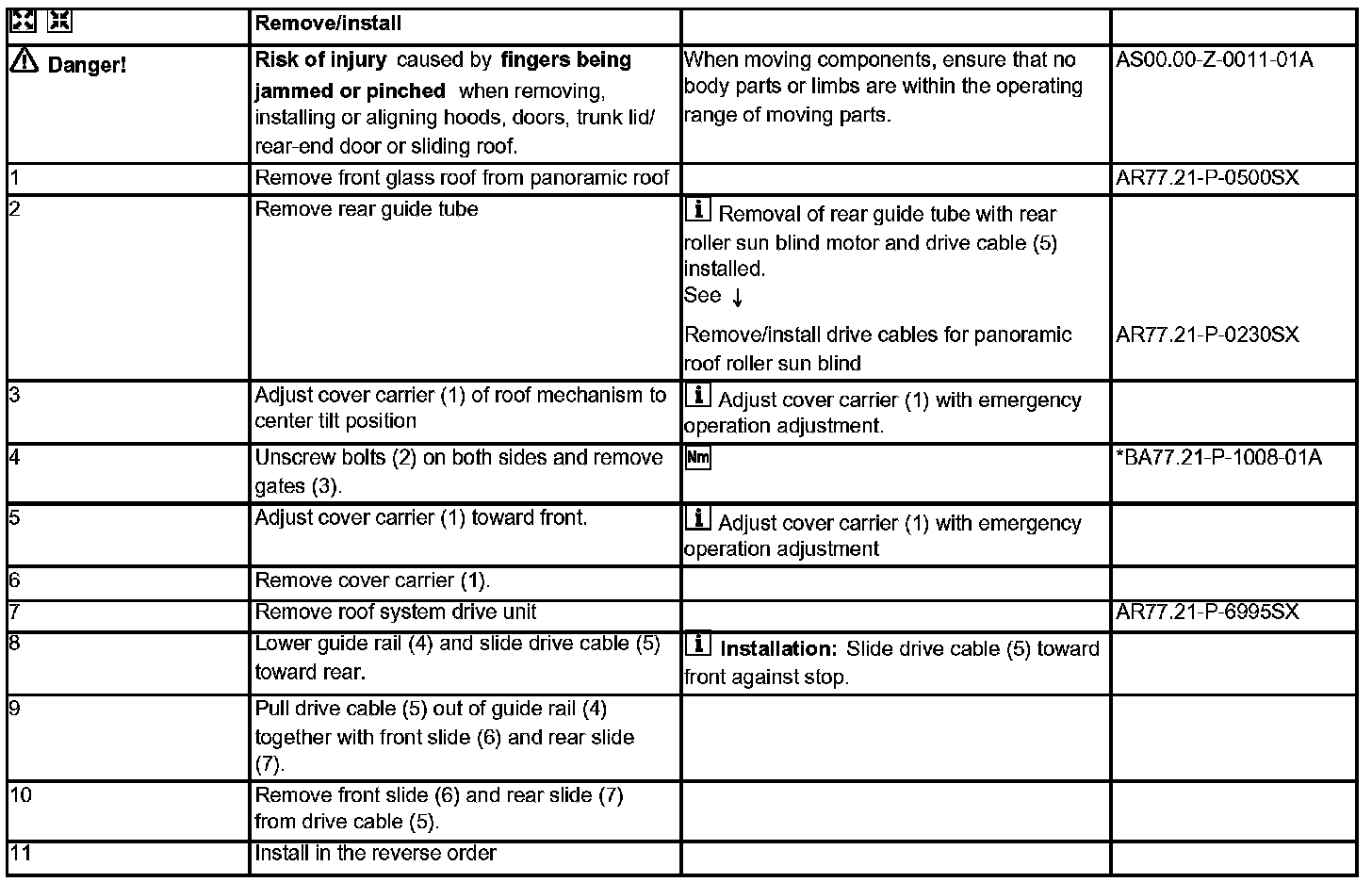

Steps 1 - 11:

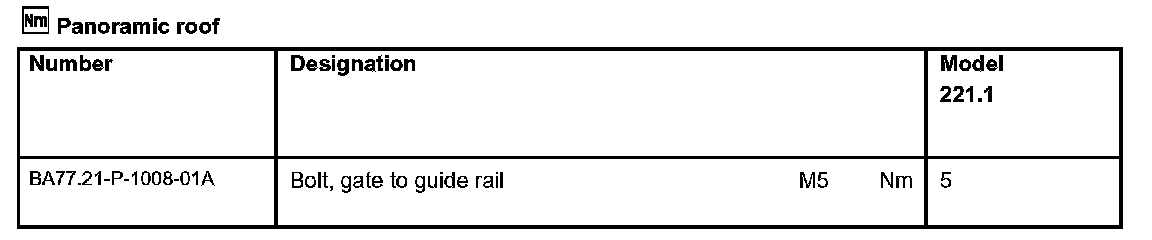

Panoramic Roof:
