AR77.21-P-0230SY Remove/Install Drive Cables For Front Panoramic Roof Roller Sun Blind



AR77.21-P-0230SY Remove/Install Drive Cables For Front Panoramic Roof Roller Sun Blind
- with CODE (413) Panoramic glass roof with top sliding roof
- drive cable for front roller sun blind

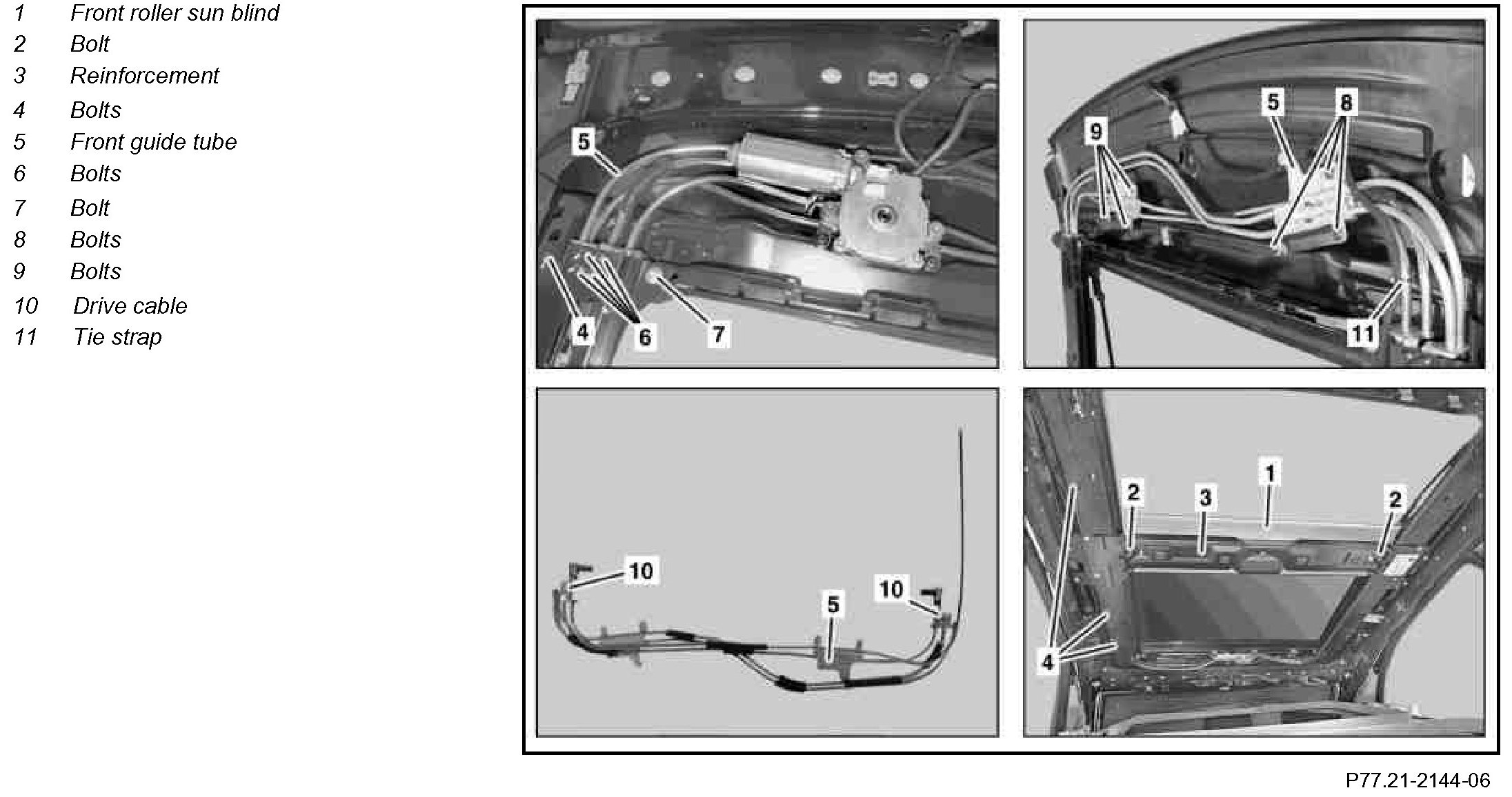

Component Identification:

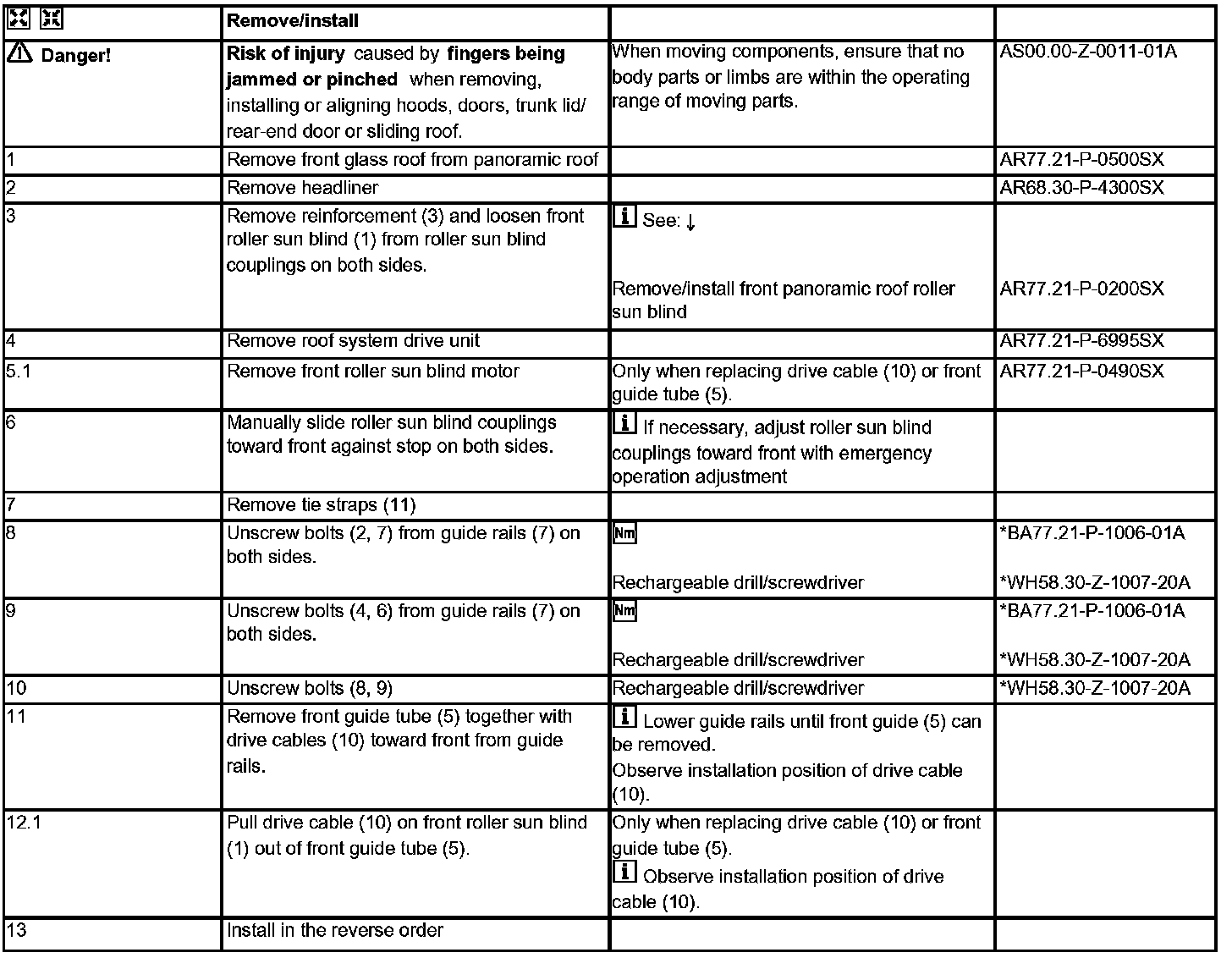

Steps 1 - 13:

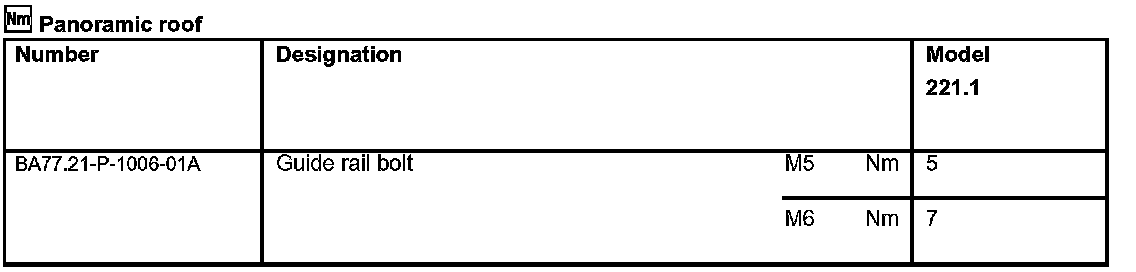

Panoramic Roof:

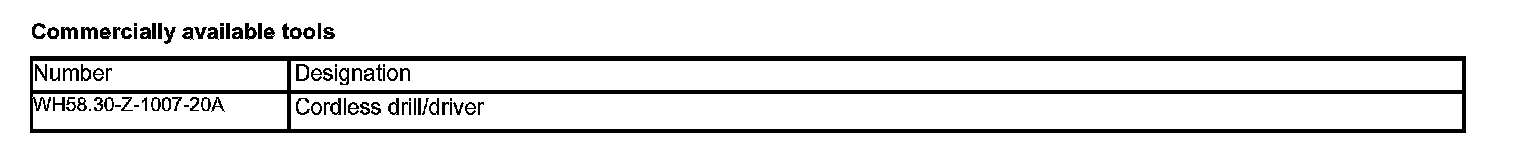

Commercially Available Tools:
