AR77.21-P-0230SX Remove/Install Drive Cable For Rear Panoramic Roof Roller Sun Blind

AR77.21-P-0230SX Remove/Install Drive Cable For Rear Panoramic Roof Roller Sun Blind
- with CODE (413) Panoramic glass roof with top sliding roof
- drive cable for rear roller blind

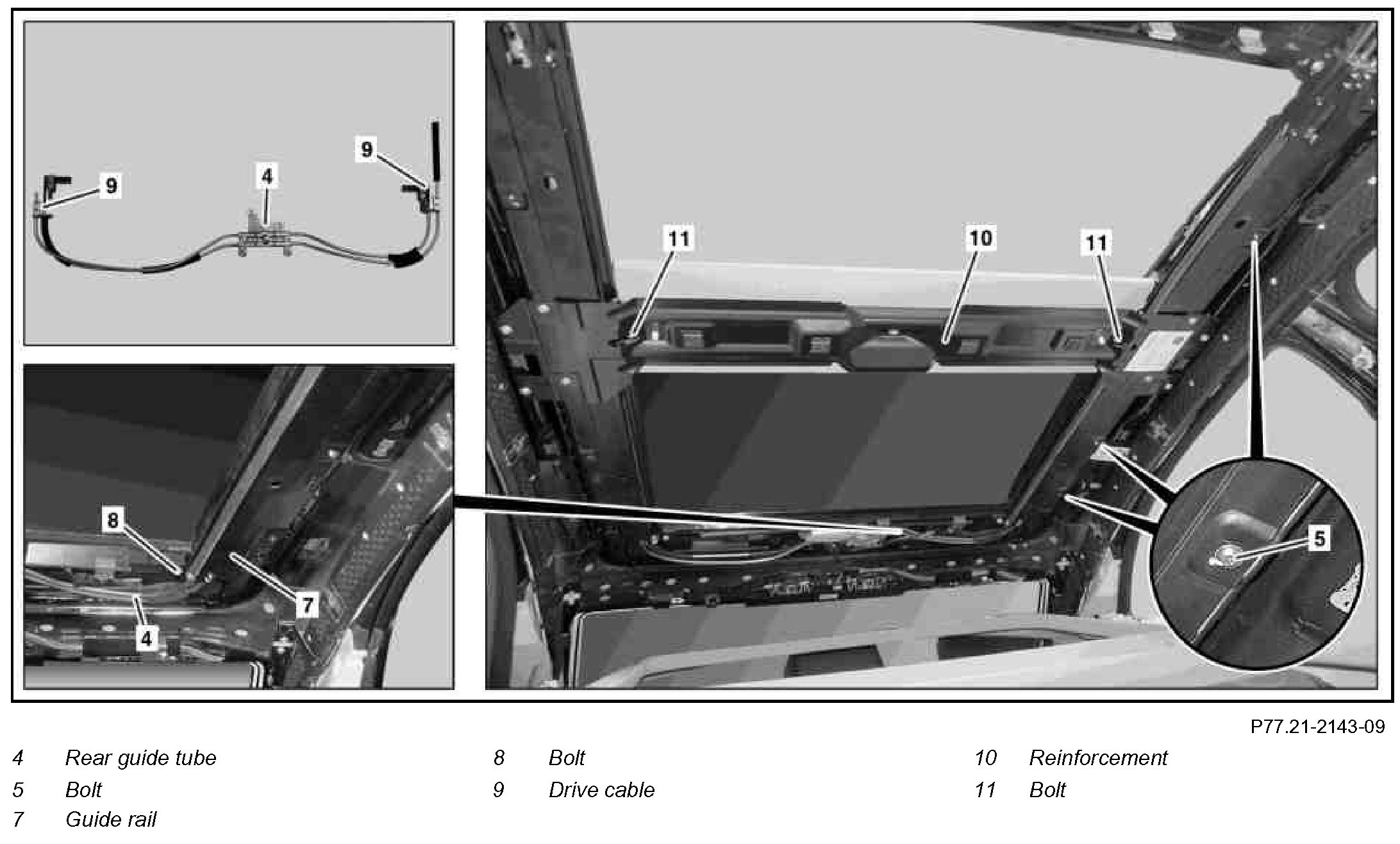

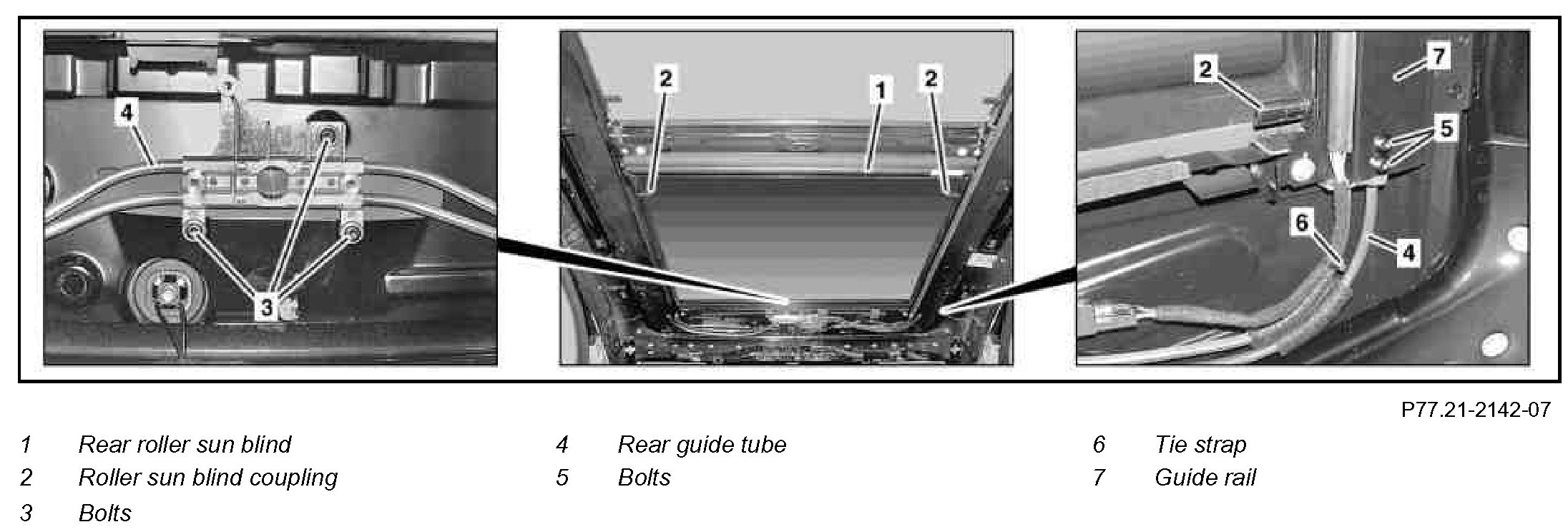

Component Identification:

Component Identification:

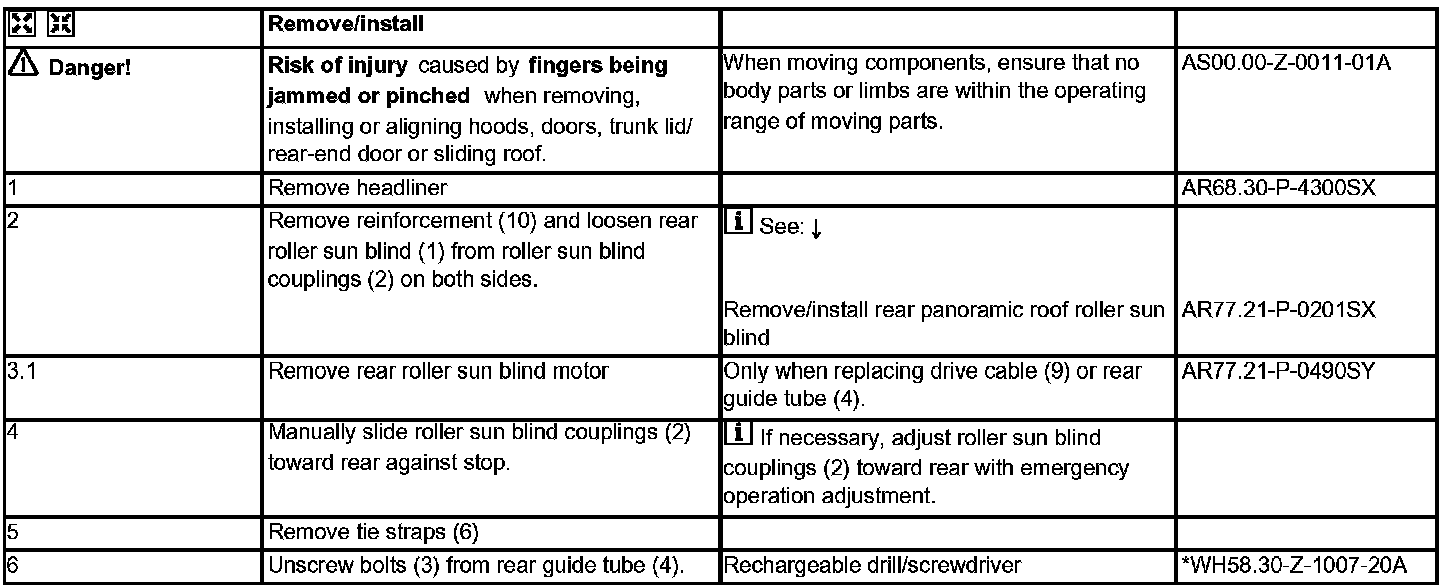

Steps 1 - 6:

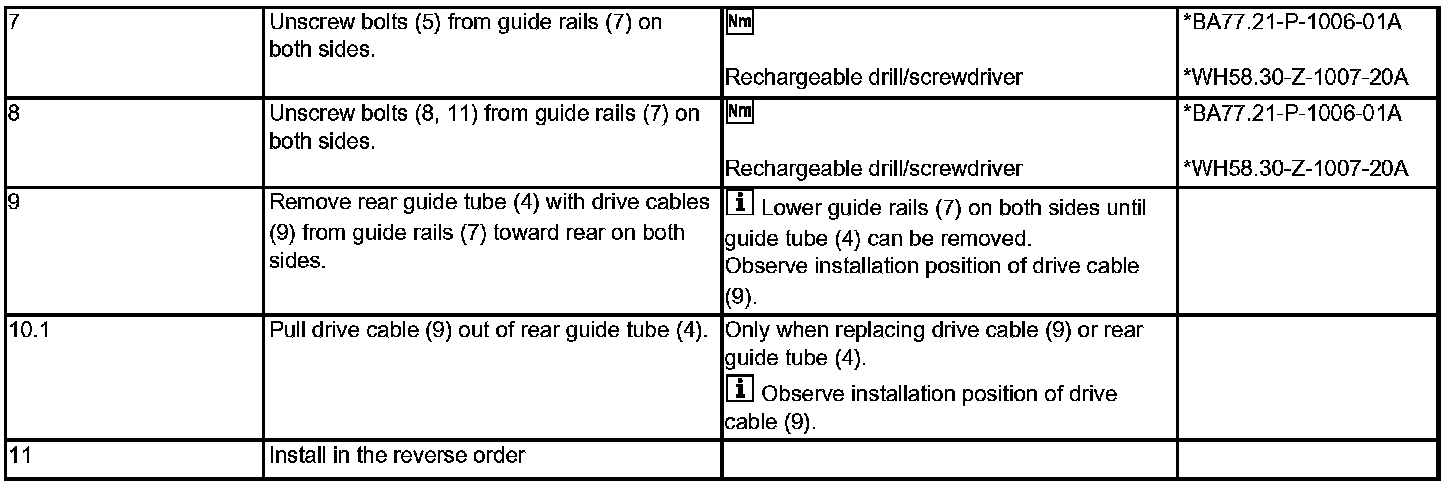

Steps 7 - 11:

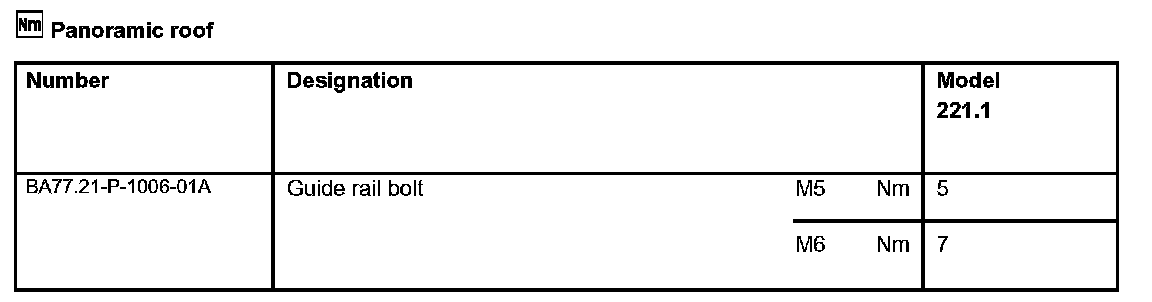

Panoramic Roof:

Commercially Available Tools:
