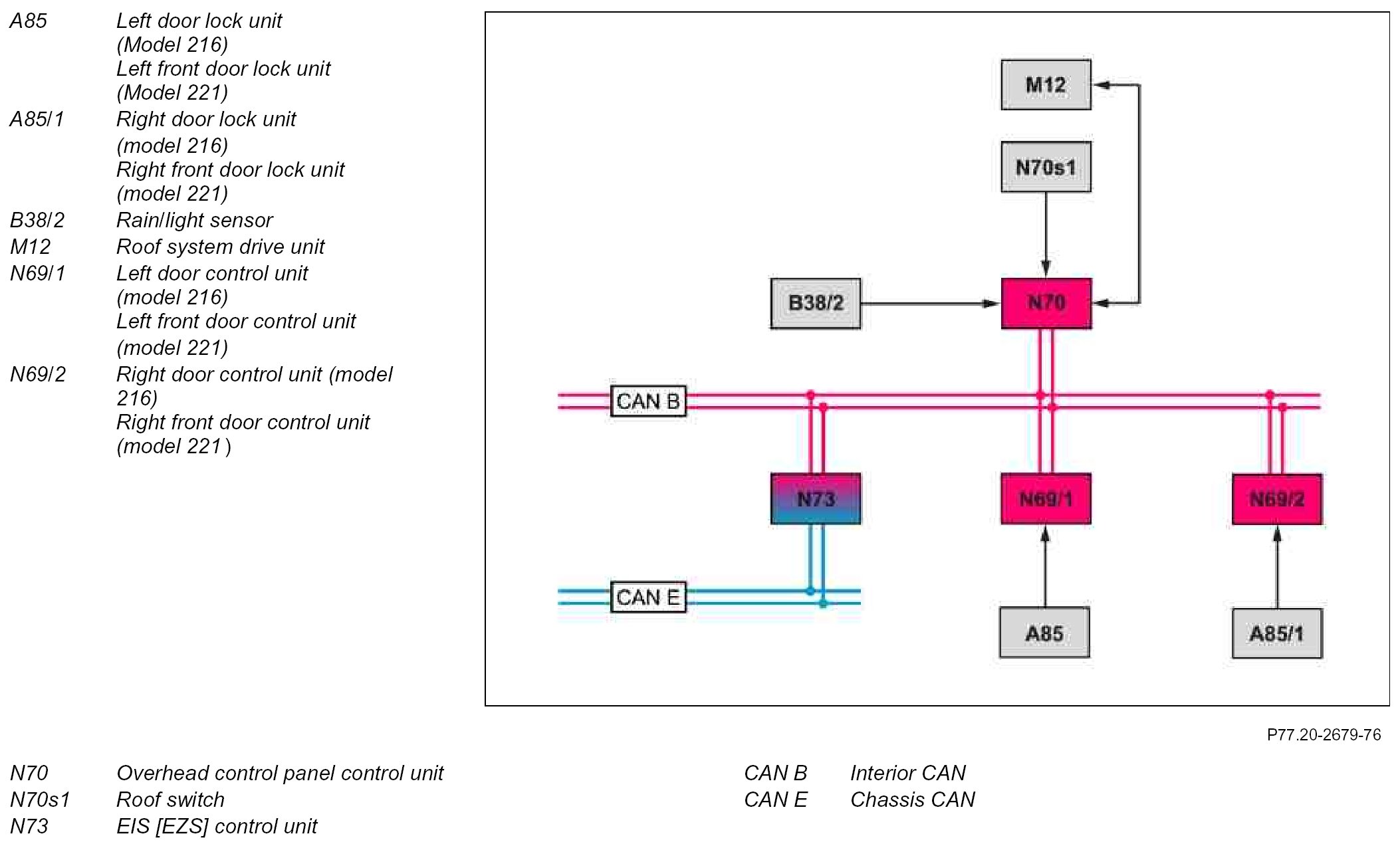

GF77.20-P-0001-03LE Electric Tilting/Sliding Roof (SR), Block Diagram



GF77.20-P-0001-03LE Electric Tilting/Sliding Roof (SR), Block Diagram
- with CODE (414) Power glass tilting/sliding roof
- as of model year 09



Component Identification:
